Epson EB-W16SK - Connecting with Component Video Cables

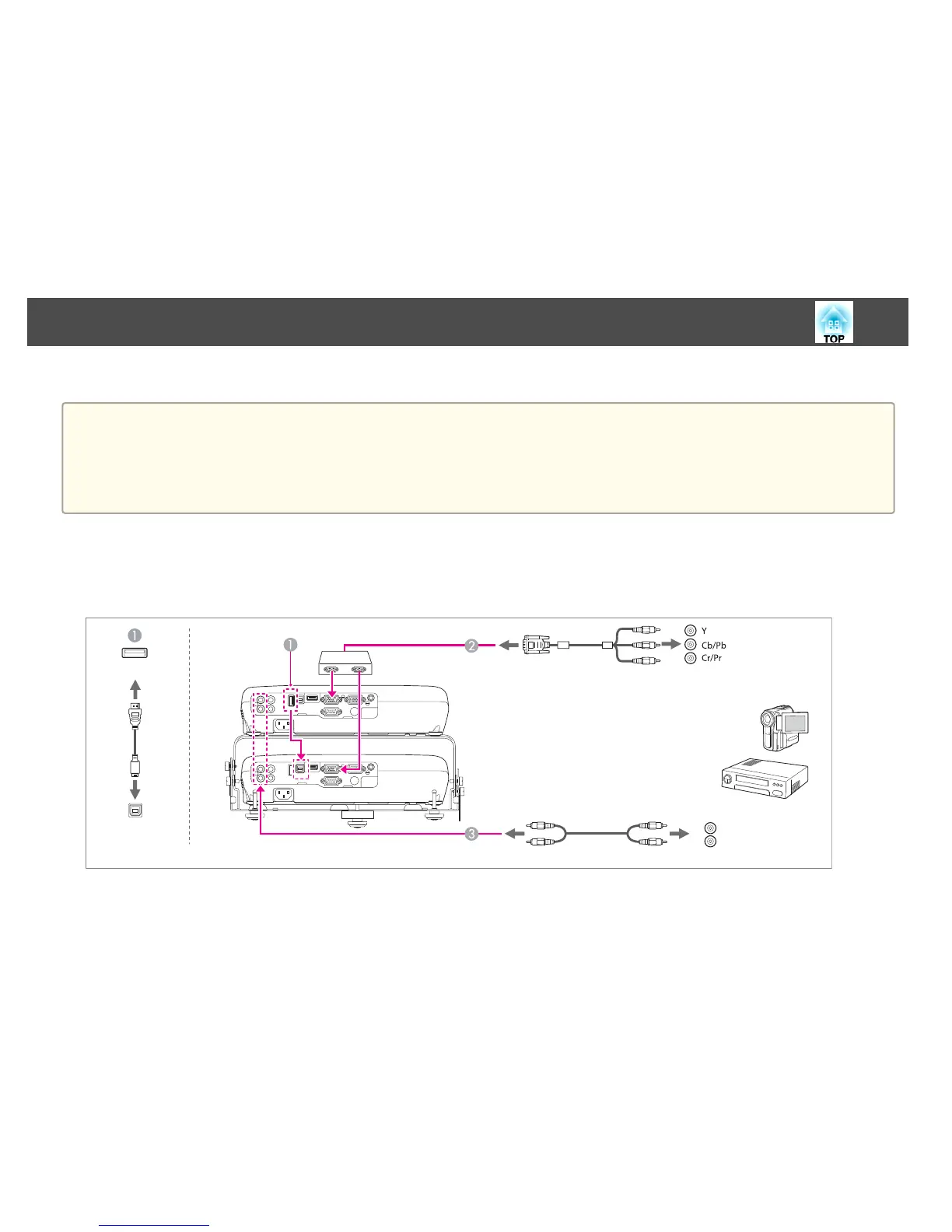

Connecting with component video cables
a
Prepare the following items in advance.
x USB cable (supplied)
x Component video cable (available in local stores)
x Computer cables (available in local stores x2)
x Splitter that supports the component video signal (available in local stores)
x Audio cable (available in local stores) *When outputting audio
A
Connect the commander's USB(TypeA) port to the receiver's USB(TypeB) port with a USB cable.
B
Connect the splitter to the video equipment's component output port with a component cable.
Connect the Computer1 ports for the commander and the receiver to the splitter with computer cables.
C
Connect the projector's Audio-L/R port (commander or receiver) to the video equipment's audio out port with an audio cable. Audio is output from the connected projector.
USB TypeB
USB TypeA
AudioOut
Connecting Equipment
28
