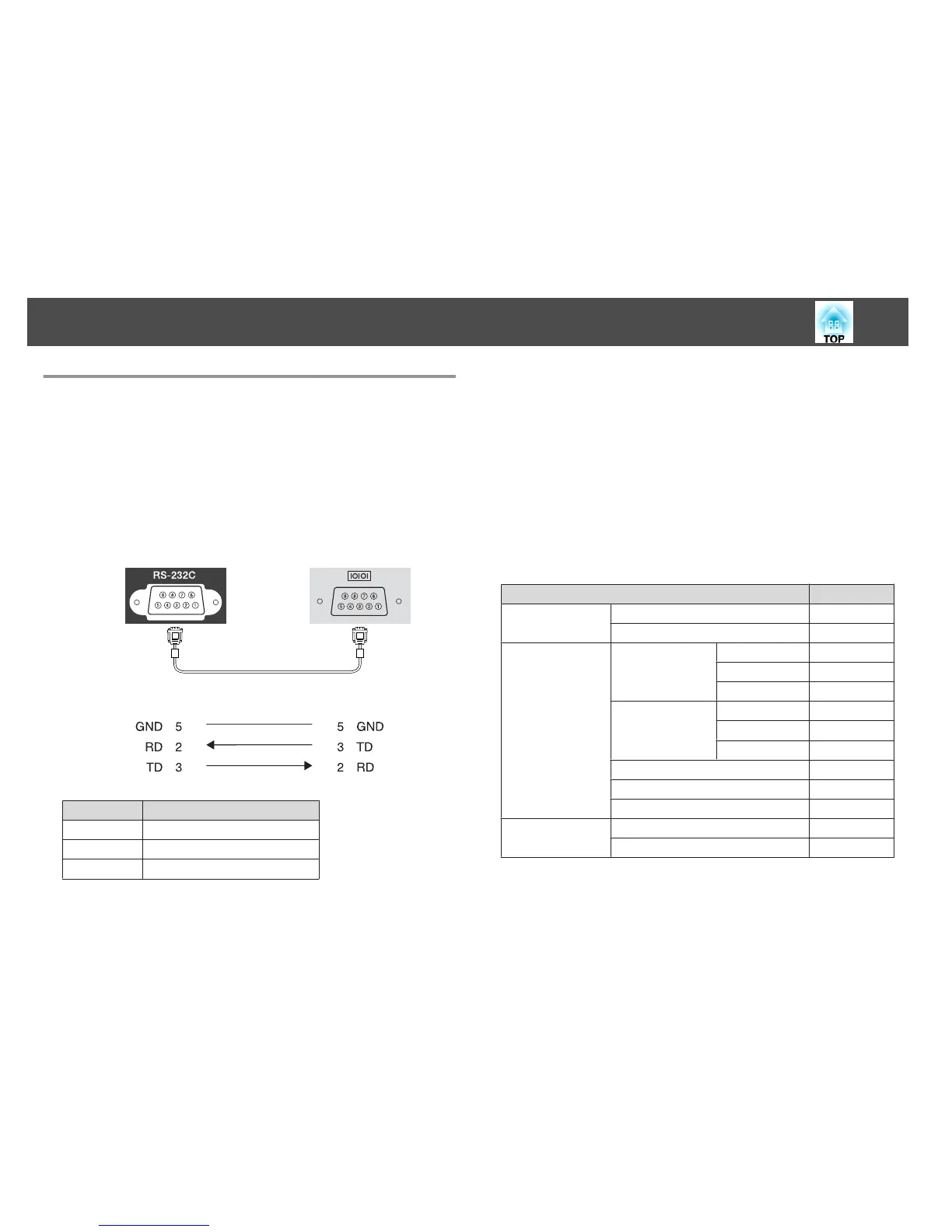

ESC/VP21 Commands
You can control the projector from an external device using ESC/VP21.
Before getting started
Connect the computer's serial port (D-Sub 9 pin) and the commander's
RS-232C port with a PC serial cable.
x Connector shape: D-Sub 9-pin (male)
x Projector input port name: RS-232C
<A
t
th
e
p
r
o
j
e
ct
o
r
>
<A
t
th
e
co
mp
u
t
e
r
>
<A
t
th
e
p
r
o
j
e
ct
o
r
>
(
P
C s
e
r
i
a
l
ca
bl
e
)
<A
t
th
e
co
m
pu
t
e
r
>
Signal Name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Command list
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has
turned on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and
returns a ":", and then accepts the next command.
If the command being processed terminates abnormally, an error message is
output and a ":" is returned.
The main contents are listed below.
Add a Carriage Return (CR) code (0Dh) to the end of each command and
transmit.
Item Command
Power ON/OFF On PWR ON
Off PWR OFF
Signal selection Computer1 Auto SOURCE 1F
RGB SOURCE 11
Component SOURCE 14
Computer2 Auto SOURCE 2F
RGB SOURCE 21
Component SOURCE 24
HDMI SOURCE 30
Video SOURCE 41
S-Video SOURCE 42
A/V Mute On/Off On MUTE ON
Off MUTE OFF
For more details, contact your local dealer or the nearest address provided
in the Epson Projector Contact List.
Monitoring and Controlling
53
