44 Getting the Most From Your Scanner

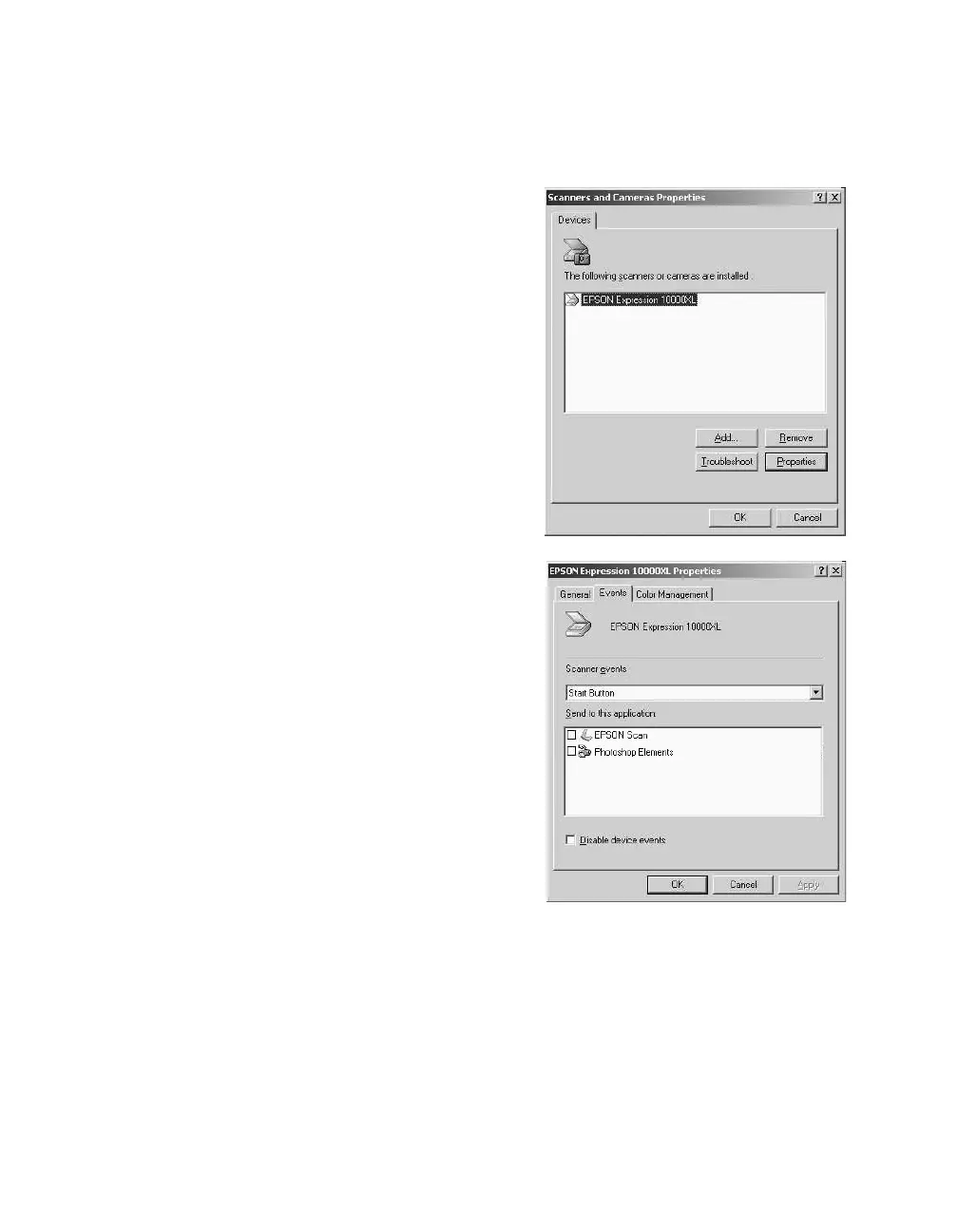

Windows 2000
For Windows 2000, follow these steps to set up the a Start button:
1. Double-click the Scanners and Cameras
icon in the Windows Control Panel.
2. Select Epson Expression 10000XL and
click the Properties button.
3. Click the Events tab. You see the window
to the right.
4. Make sure Start Button appears in the
Scanner events box, then deselect any
applications you don’t want to use in the
Send to this application list. Leave
checked only the application(s) you want
to assign to the a Start button.
5. Click Apply, then click OK to close the
Epson Expression 10000XL Properties
window, then click
OK again to close the
Scanners and Cameras Properties window.
Note: You can disable the a Start button by
clicking the Disable device events checkbox
on the Events tab.

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
