Epson Expression 10000XL User Manual

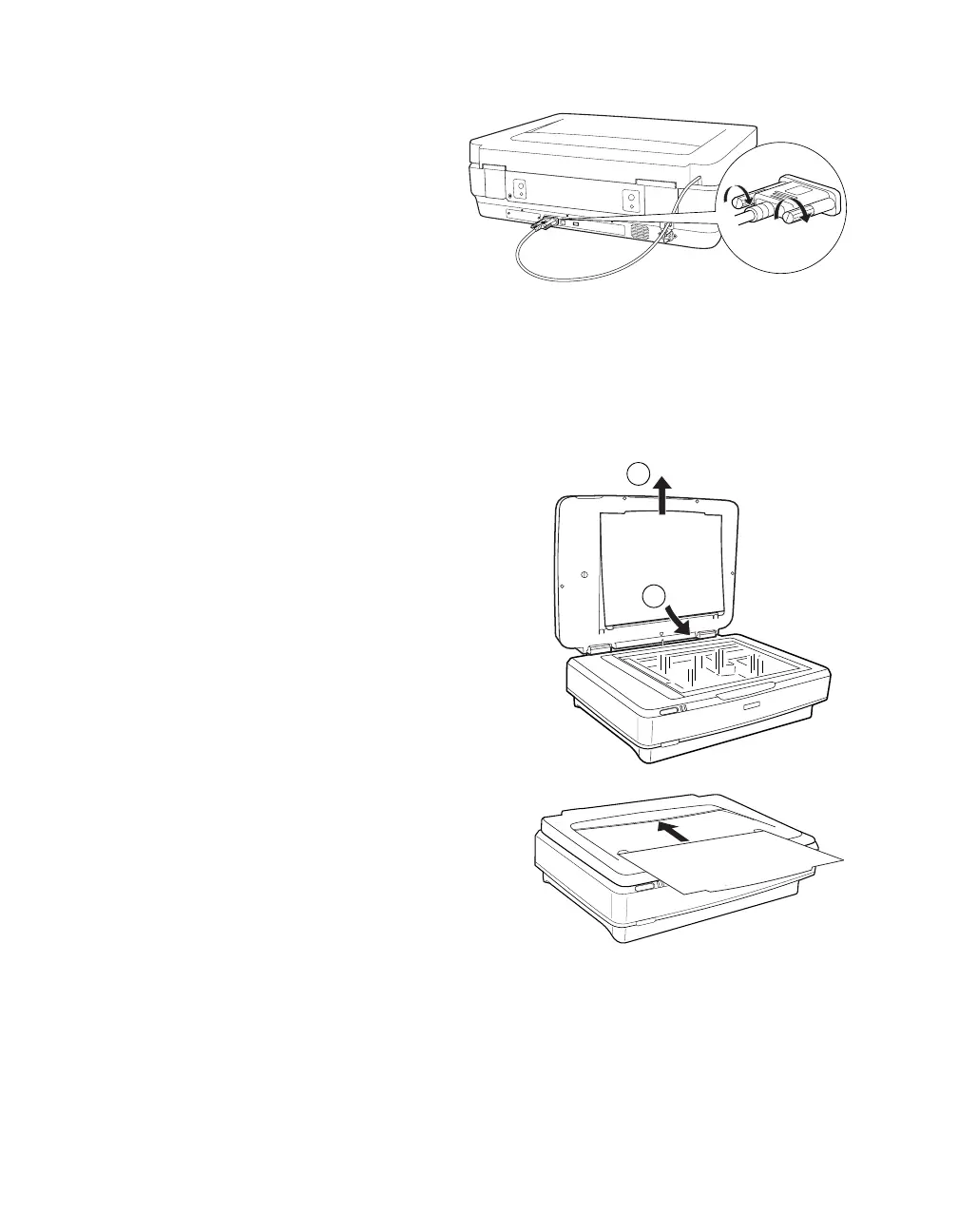

48 Using Optional Equipment
5. Close the transparency unit.
6. Connect the transparency unit cable
to the scanner’s OPTION port, then
tighten its screws.
Using the Transparency Unit
Before using the transparency unit (TPU), you need to remove the reflective
document mat and make sure the glass on both the document table and the TPU
is clean.
1. Open the transparency unit.
2. Grasp the white reflective document mat by
its top edge and slide it upward to free the
bottom edge of the mat.
3. Lower the mat slightly to free the tabs at the
top edge, then remove the mat.
4. Place the mat in the storage pocket located
on top of the TPU.
5. Make sure the glass on the scanner’s
document table and on the TPU is
completely clean and free of dust. If
necessary, use a soft cloth to wipe it clean.
Caution: Never spray glass cleaner directly on the document table. Always spray
it on a cloth first and then wipe the glass.
2
1

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
