Epson Expression 10000XL

Using Optional Equipment 47

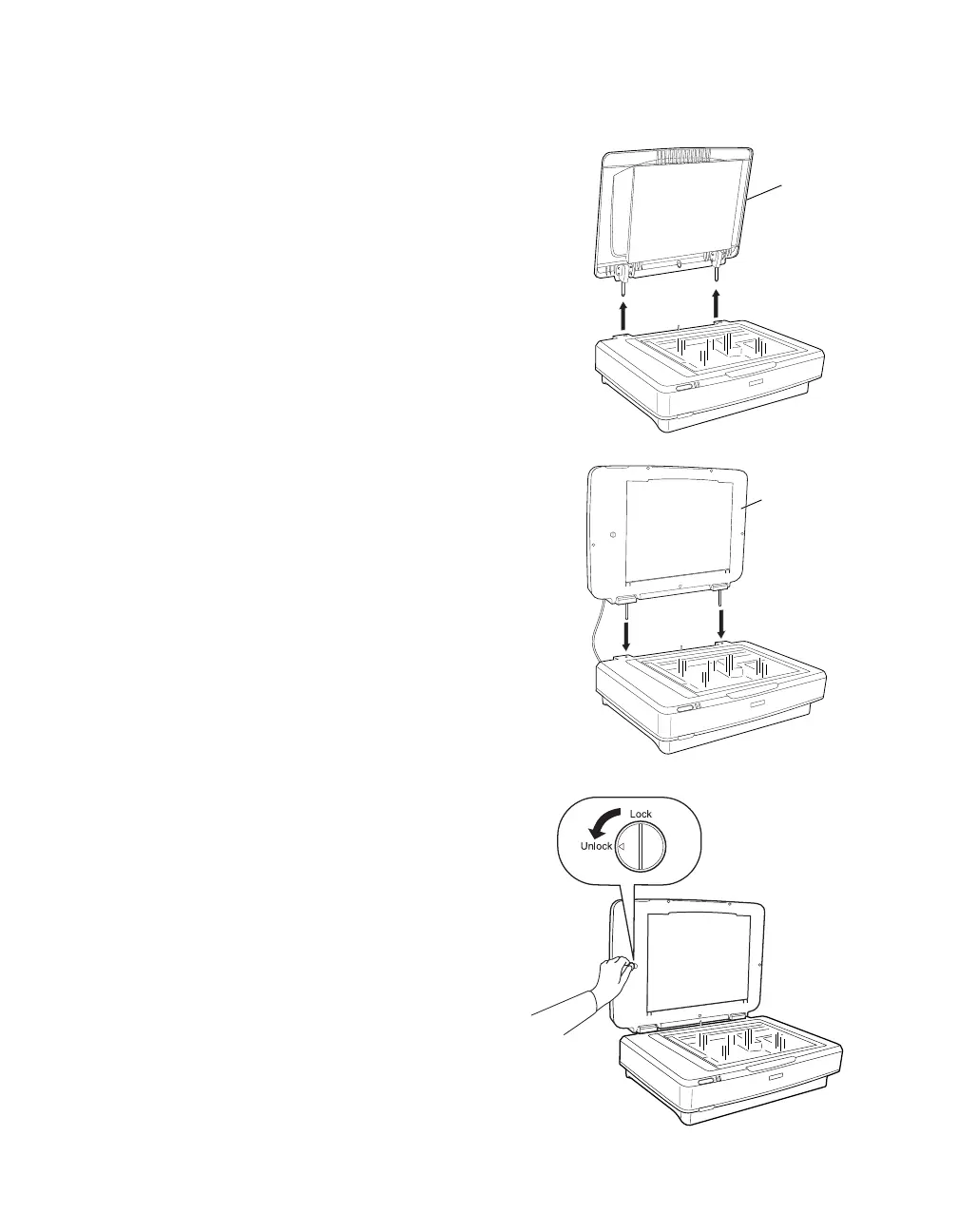

Installing the Transparency Unit
1. Make sure the scanner is turned off, then
unplug the power cord from the scanner.
2. Fully open the scanner’s document cover,
then lift it straight up.
3. Lower the transparency unit onto the
scanner, so that the pins fit into the holes
as shown.
4. Use a coin to turn the transportation lock
to the
Unlock position.
Document
cover
Transparency
unit
