Epson Expression 10000XL User Manual

50 Using Optional Equipment

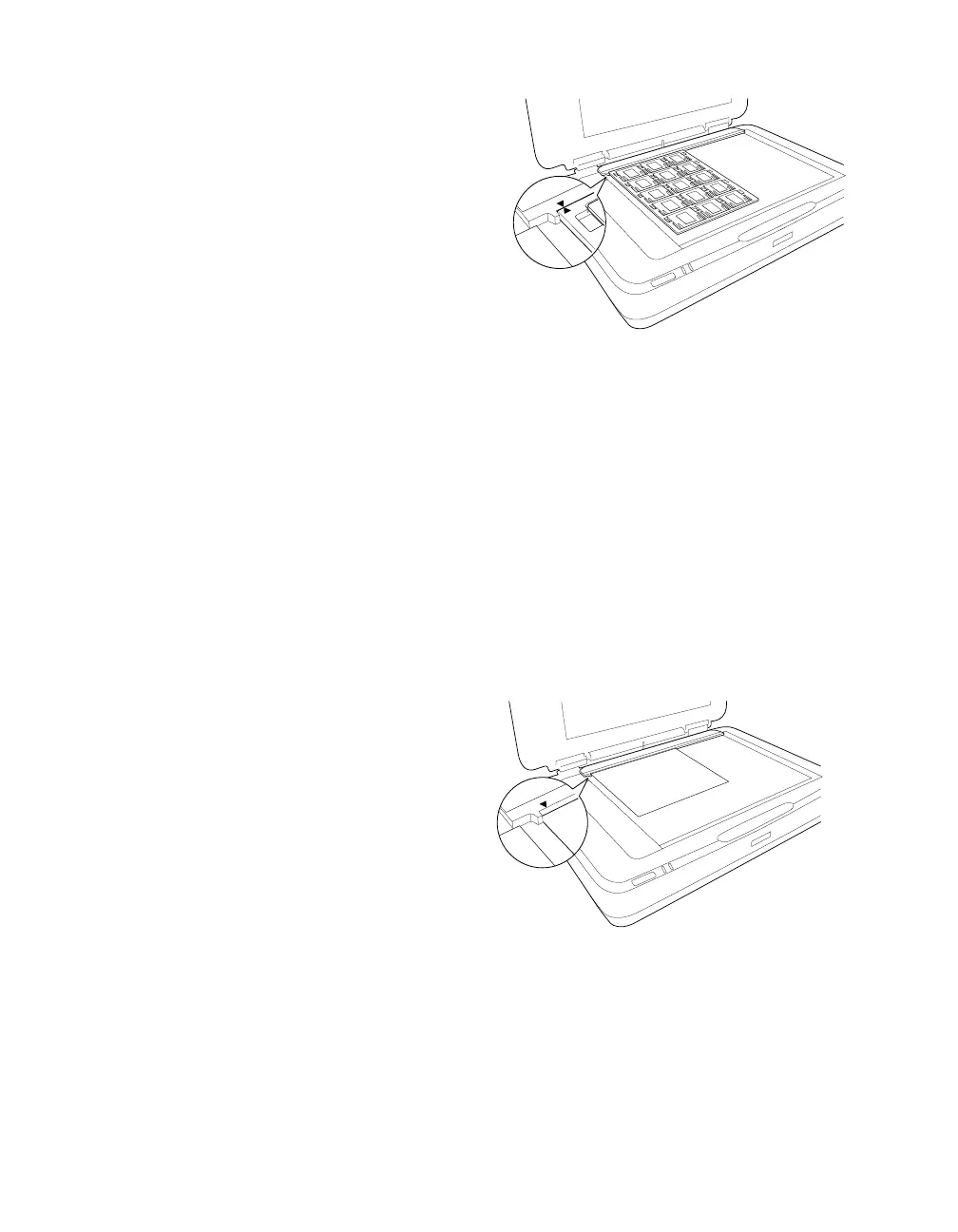

2. Make sure the transparency guide is in
place at the back edge of the document
glass (see page 49). Then place the film
holder on the document glass, aligning
the arrow marks as shown.
When scanning large numbers of images,
you can place a second film holder on the
scanner next to the first one. The holders
can be for different sizes of film (unless
you plan to scan 35 mm slides using the Thumbnail preview screen; see page 52).
3. Close the transparency unit and scan as described on page 51.
Note: If the transparency unit is not closed, you will get an error message and be
unable to scan.
Placing Nonstandard Film Sizes on the Scanner
You can scan film in nonstandard sizes up to 12.2 × 16.5 inches (309 × 420 mm).
Follow these guidelines:
1. Make sure the transparency guide is in place at the back edge of the document
glass (see page 49).
2. Set your film directly on the document
glass, with the shiny side face-down
and the film emulsion layer face-up.
Align the film with the edge of the
transparency guide, as shown.
3. Close the transparency unit and scan
as described in the next section.
Note: When setting film directly on the
glass or using film holders other than
those that came with the scanner, be sure to adjust the focus (see page 52).

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
