Loading roll paper
Follow these steps to load a roll of paper after you install the roll
paper holder:
1. Make sure the printer is turned off and the paper guide is
removed. Also make sure the tractor is not installed in the pull
or rear push position, and the paper tension unit is installed.
2. Set the paper release lever to the single-sheet position. Also
set the paper-thickness lever to the proper position for the
thickness of your roll paper.

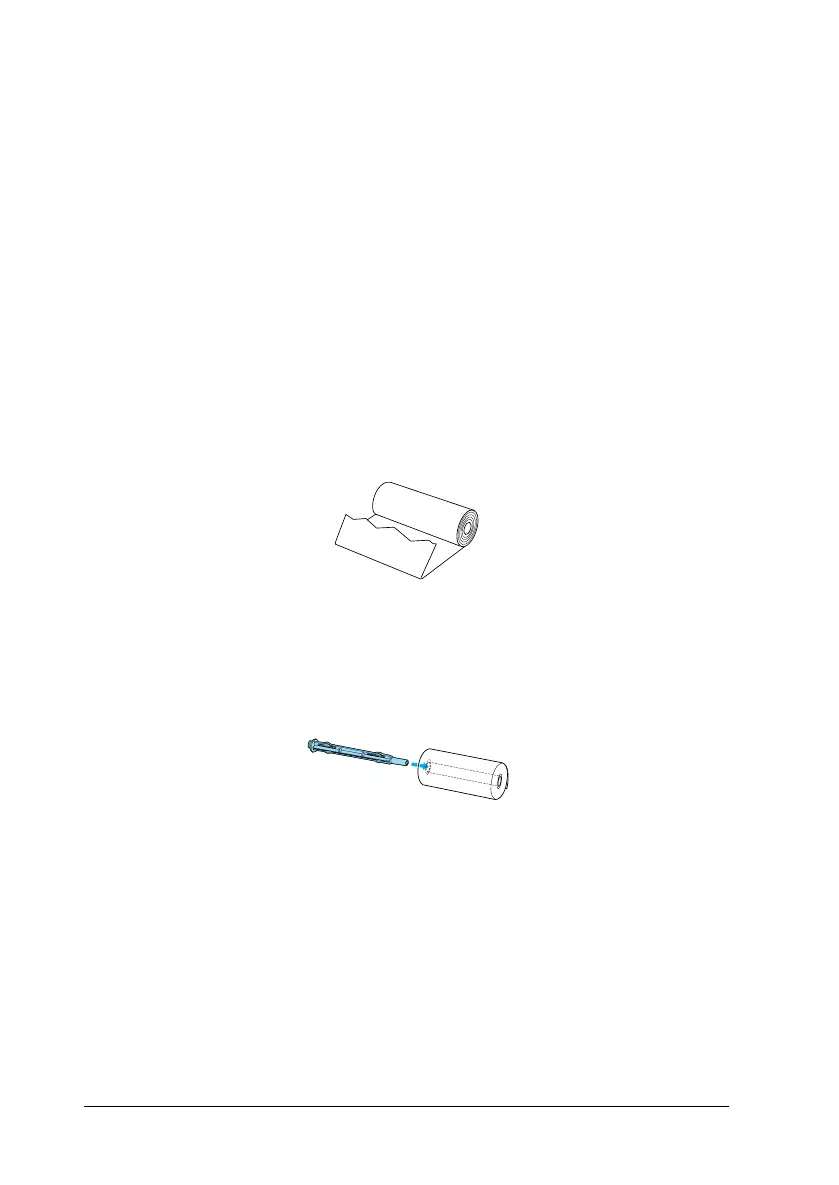

3. Cut the leading edge of the roll paper straight across.
4. Insert the roll paper holder shaft into the center of the paper
roll as shown.
