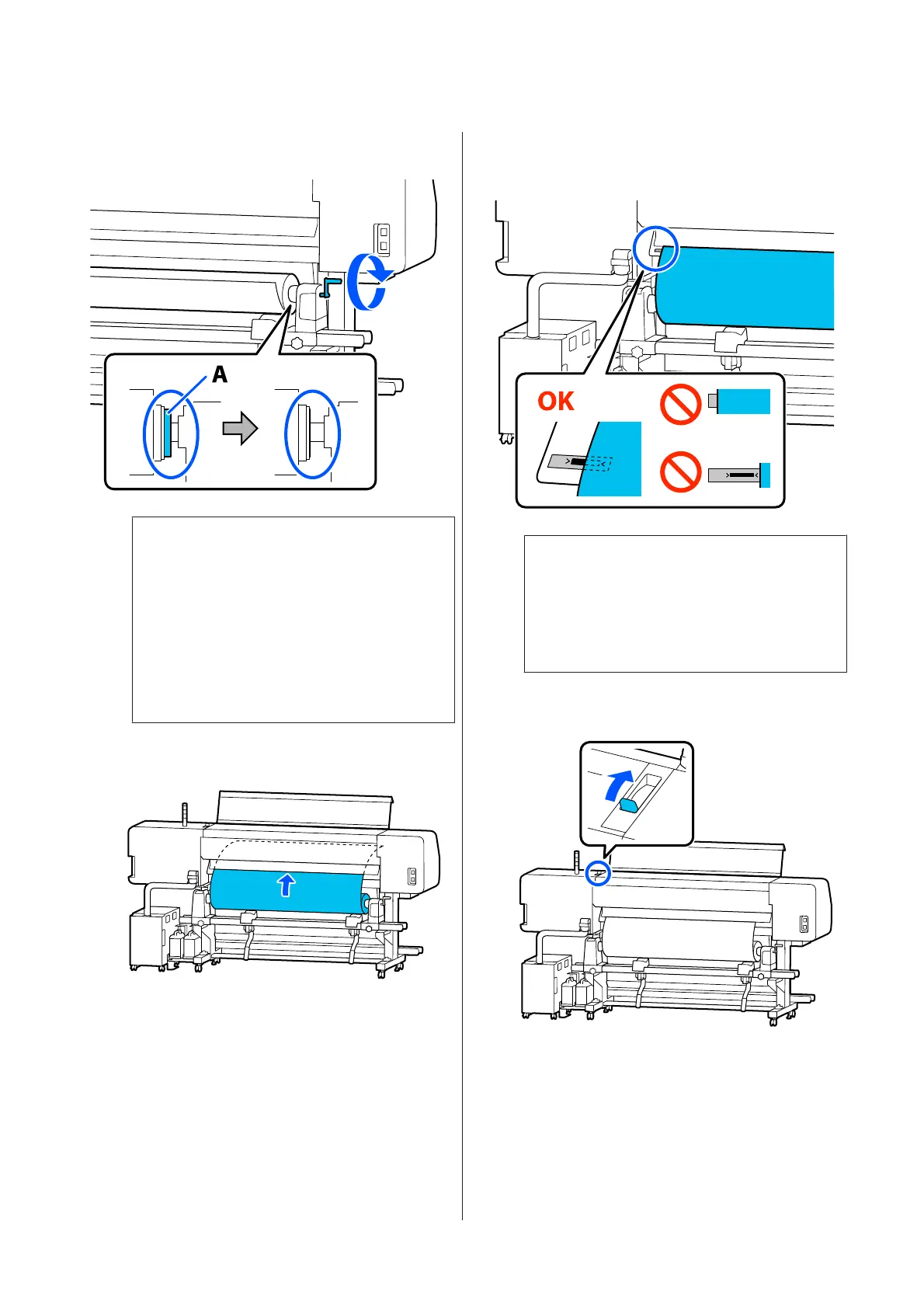

Rotate the handle until part A in the illustration
below is fully inserted.
c
Important:
Once part A is hidden, do not turn the
handle any further. Failure to observe this
precaution could damage the media holder.
If part A is still visible even after the handle
has been turned fully, rewind the handle.
Loosen the media holder screw on the right
side, and then restart from step 4.
O
Insert the media approximately 30 cm (11.8
inches) into the opening.
P
Confirm that the left edge of the media is
within the range of the label's rectangle, as
shown in the illustration below.
Note:
If the left edge of the media is not within the black
square of the label, perform steps 4 to 16 in
reverse to adjust the position of the media holder.
Do not attempt to reposition the media holders
while they are inserted in the media.
Q
Move the media loading lever forward so that
the inserted media does not slide out.
SC-R5000 Series/SC-R5000L Series User's Guide
Basic Operations
51
