Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 159
Confidential
3.4.6.2 Media Loading Lever Sensor
1. Move the Media Loading Lever to the rear side, and set it to the release position.
2. Disconnect the connector of the Reel Unit.
3. Remove the five screws, and remove the Right Rear Cover.
A) Silver M4x10 S-tite screw with washer: 4 pcs
B) Silver M3x6 screw: 1 pcs

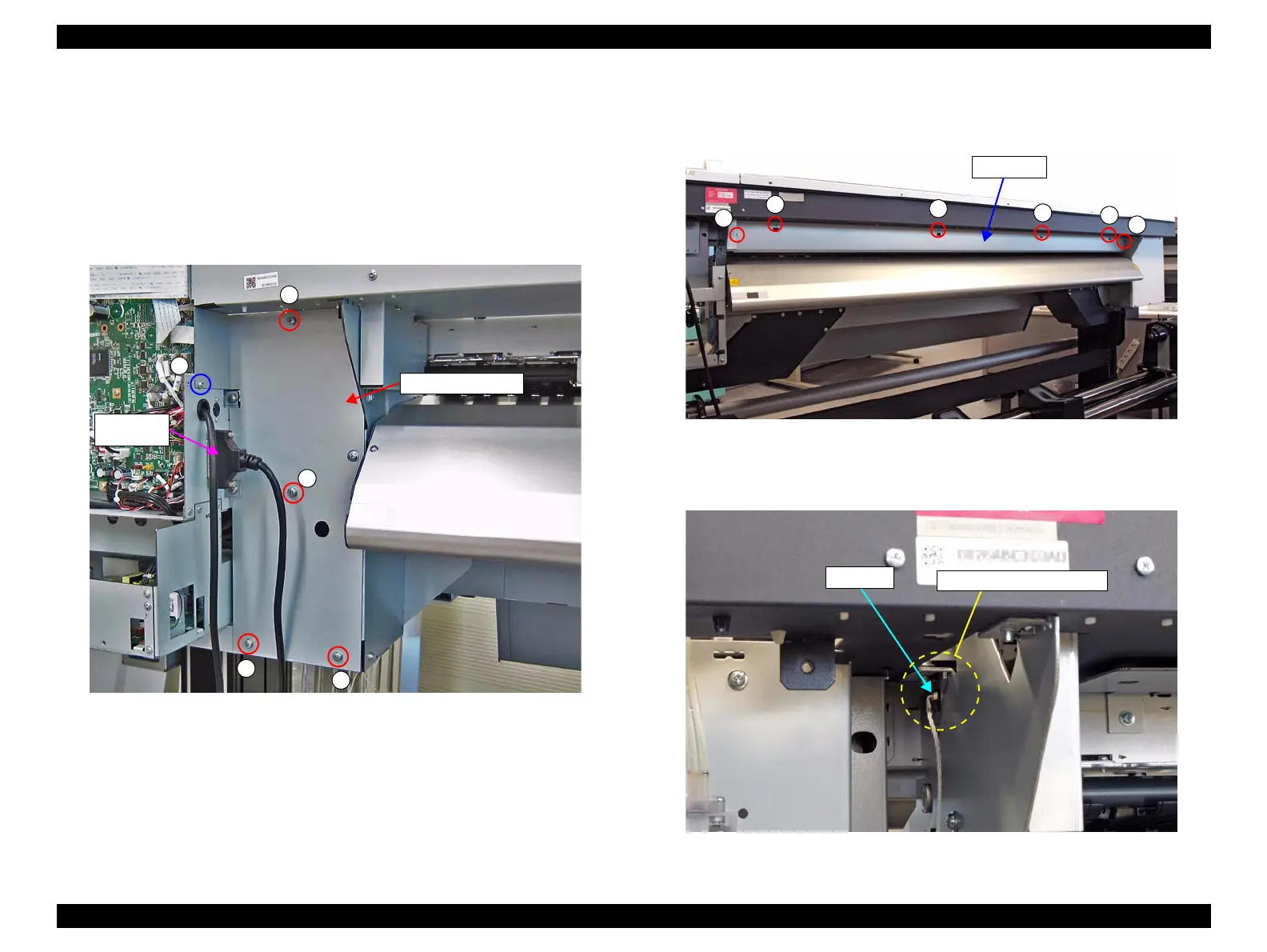

Figure 3-115. Removing the Right Rear Cover
4. Remove the six screws that secure the Rear Cover.
C) Silver M3x8 S-tite screw with built-in washer: 6 pcs
Figure 3-116. Removing the Rear Cover
5. Disconnect the connector from the Media Loading Lever Sensor.
Figure 3-117. Connector of the Media Loading Lever Sensor
A
A
A
A
B
Right Rear Cover
Reel Unit
Connector
C
C
C
C
C
C
Rear Cover
Media Loading Lever Sensor
Connector
