3.4.8 Roll Unit
3.4.8.1 Roll Unit
1. Remove the seven screws, and remove the Roll Unit.
A) Special screw: 7 pcs

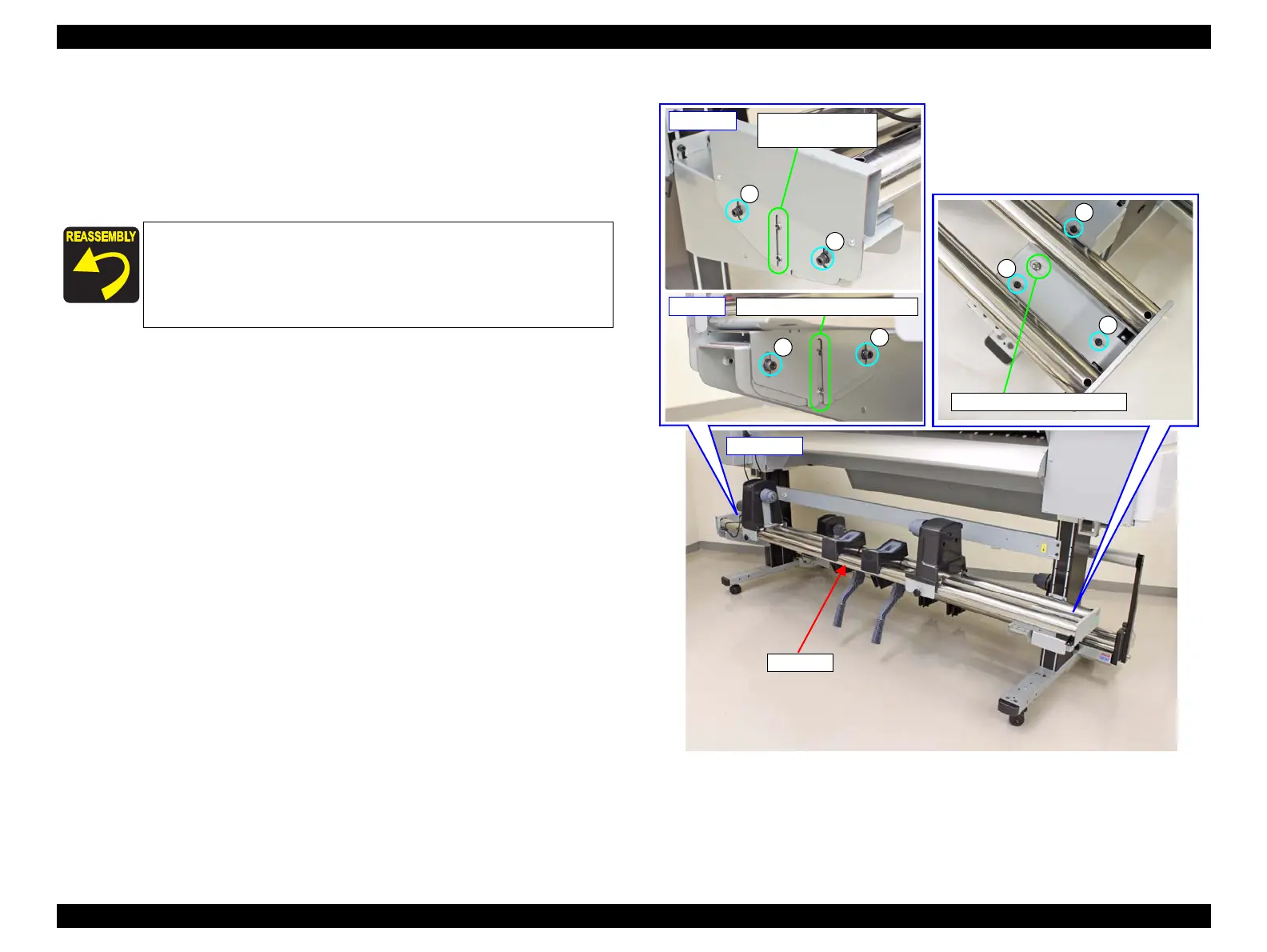

Figure 3-140. Removing the Roll Unit
When installing the Roll Unit, confirm the following.
 On the right side of the Roll Unit, insert the dowels on the
frame into the positioning grooves on the Roll Unit.
 On the left side of the Roll Unit, insert the dowel on the frame
into the positioning hole on the Roll Unit.
A
A
- Inside -
Dowels and positioning groove
A
A
- Outside -
Dowels and
positioning groove
A
A
A
Positioning hole and dowel
Roll Unit
- Rear side -
