3.4.3 Housing
3.4.3.1 Panel Unit
1. Open the Right Maintenance Cover.
2. Open the Front Cover.
3. Remove the four screws that secure the Panel Unit.
A) Silver M4x10 P-tite screw with washer: 2 pcs
B) Silver M4x12 P-tite screw with washer: 2 pcs
4. Pull the left lower portion of the Panel Unit Assy toward you and remove it.
5. Disconnect the FFC from the connector of the Panel Board.

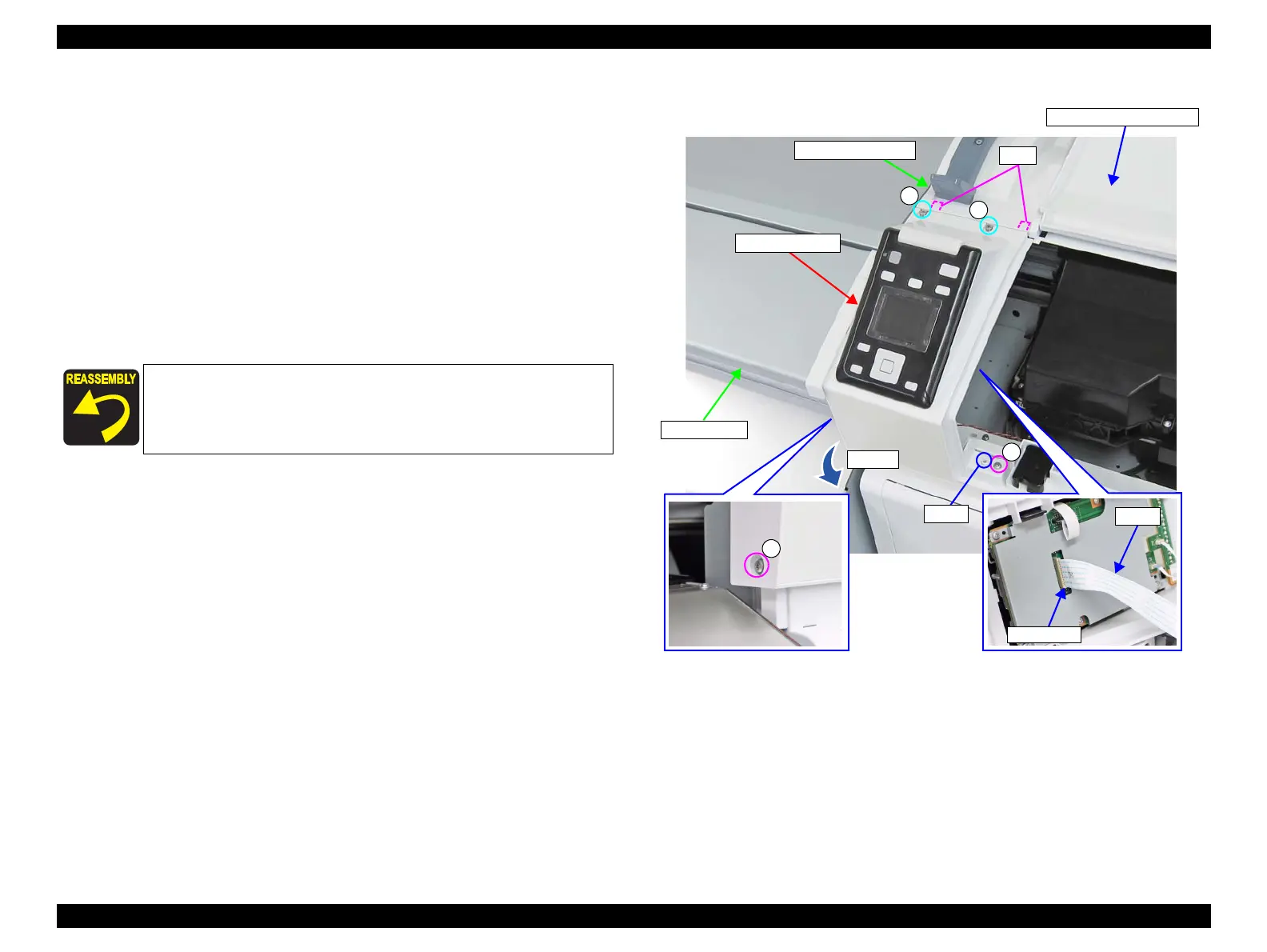

Figure 3-16. Removing the Panel Unit Assy
 Insert the two tabs of the Panel Unit into the two holes on the
Right Upper Cover.
 Insert the positioning hole of the Panel Unit over the dowel on
the main body.
B
FFC
Connector
A
A
B
Panel Unit Assy
Right Upper Cover
Right Maintenance Cover
Tabs
Front Cover
Dowel
Step 4
