SC-S30600 Series Revision B
ADJUSTMENT Media Feed Related Checks and Adjustments 260
Confidential
4.13 Media Feed Related Checks and Adjustments
4.13.1 PF Belt Tension Check
REQUIRED TOOLS
 Sonic tensimeter U-507
 Any tools to flip the timing belt
STANDARD VALUE
 11 ± 4 N
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following part in advance.
 Left Cover (P. 98)
2. Loosen the two screws that secure the PF Motor mounting plate.
3. Move the mounting plate back and forth three times to soften the PF timing belt.
4. Tighten the two screws to secure the mounting plate.

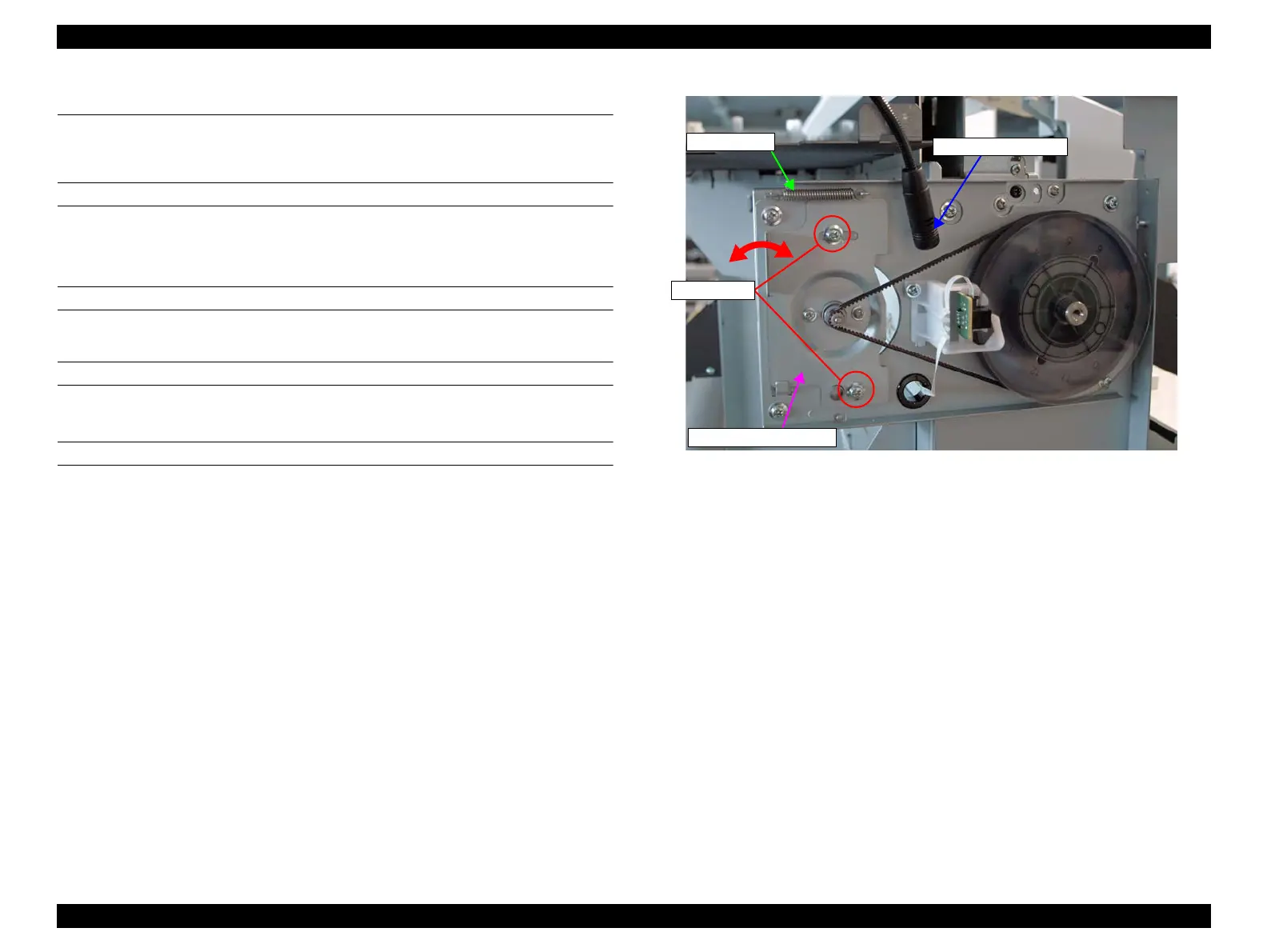

Figure 4-51. PF Belt Tension Check
Fixing screws
Tension spring
PF Motor mounting plate
Measuring microphone
