4.10.2 APG Function Check
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following parts in advance.
 Right Cover (P. 92)
2. Turn the printer ON.
3. Start the Service Program and select APG function check.
4. Click [Run].
The APG mechanism moves.

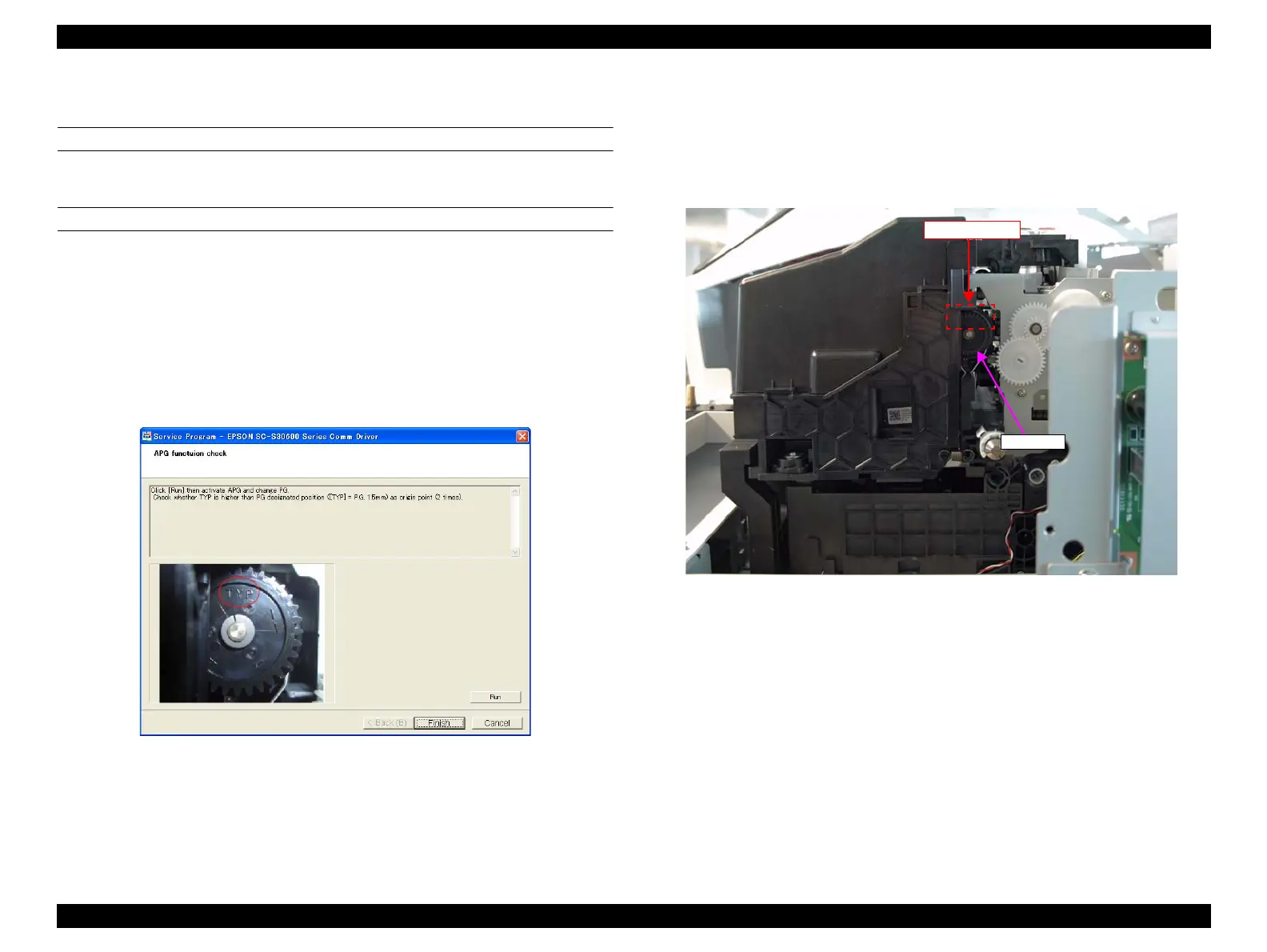

Figure 4-17. [APG function check] Screen
5. Check that the mark on the top of the APG cam is “TYP”.
Run the check two times and check the mark.
 “TYP” is on the top: Go to Step 7
 “TYP” is not on the top: Go to Step 6
Figure 4-18. Checking the APG cam
TYP
Mark on the top
APG cam
