4.11.6 Head Slant Adjustment (PF direction)
The following two methods are provided.
Automatic adjustment:
An adjustment pattern is printed and scanned by the Ink Mark Sensor, and required
adjustment level is displayed.
Manual adjustment:
Visually check the printed adjustment pattern, and determine the required
adjustment level.
The way to actually correct the head slant according to the result obtained by any of the
above methods is the same.
PAPER USED
Size: 16 inches or longer
Type: 3M IJ40-10R
EXECUTION MODE
Normal Mode
4.11.6.1 Head Slant Auto Adjustment (PF direction)
1. Load the paper into the printer.
2. Turn the printer ON.
3. Start the Service Program and select Head slant auto adjustment (PF direction).
4. Click [Run].
The adjustment pattern is printed.
5. The printed pattern is scanned by the Ink Mark Sensor and the required adjustment
level (how much the Adjustment Knob should be moved) is displayed.
6. Make the adjustment referring to “4.11.6.3 Correcting Head Slant (PF direction)”
(p256).

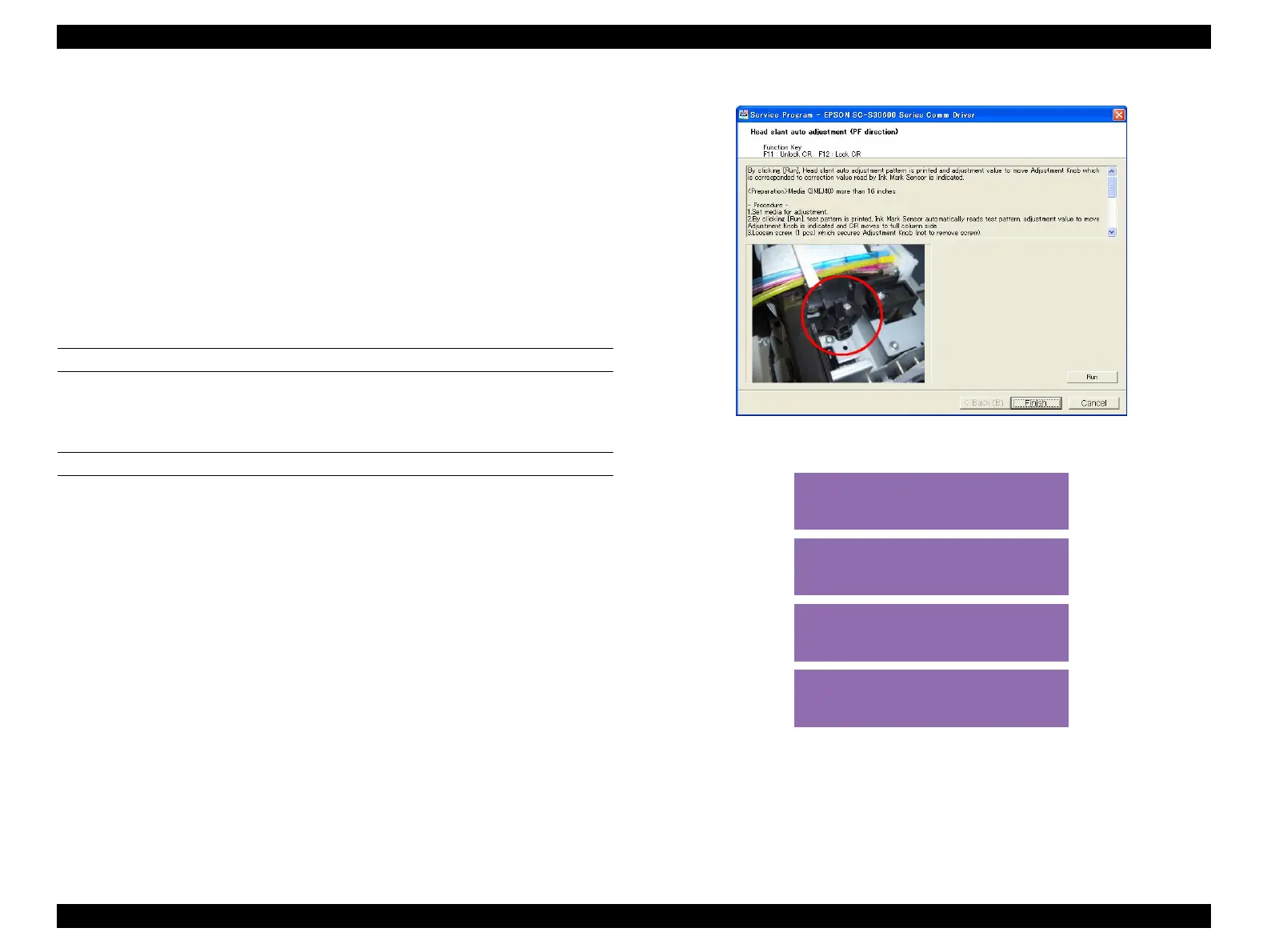

Figure 4-42. [Head slant auto adjustment (PF direction)] Screen
Figure 4-43. Auto adjustment pattern
