SC-S30600 Series Revision B
ADJUSTMENT Head Related Checks and Adjustments 253
Confidential

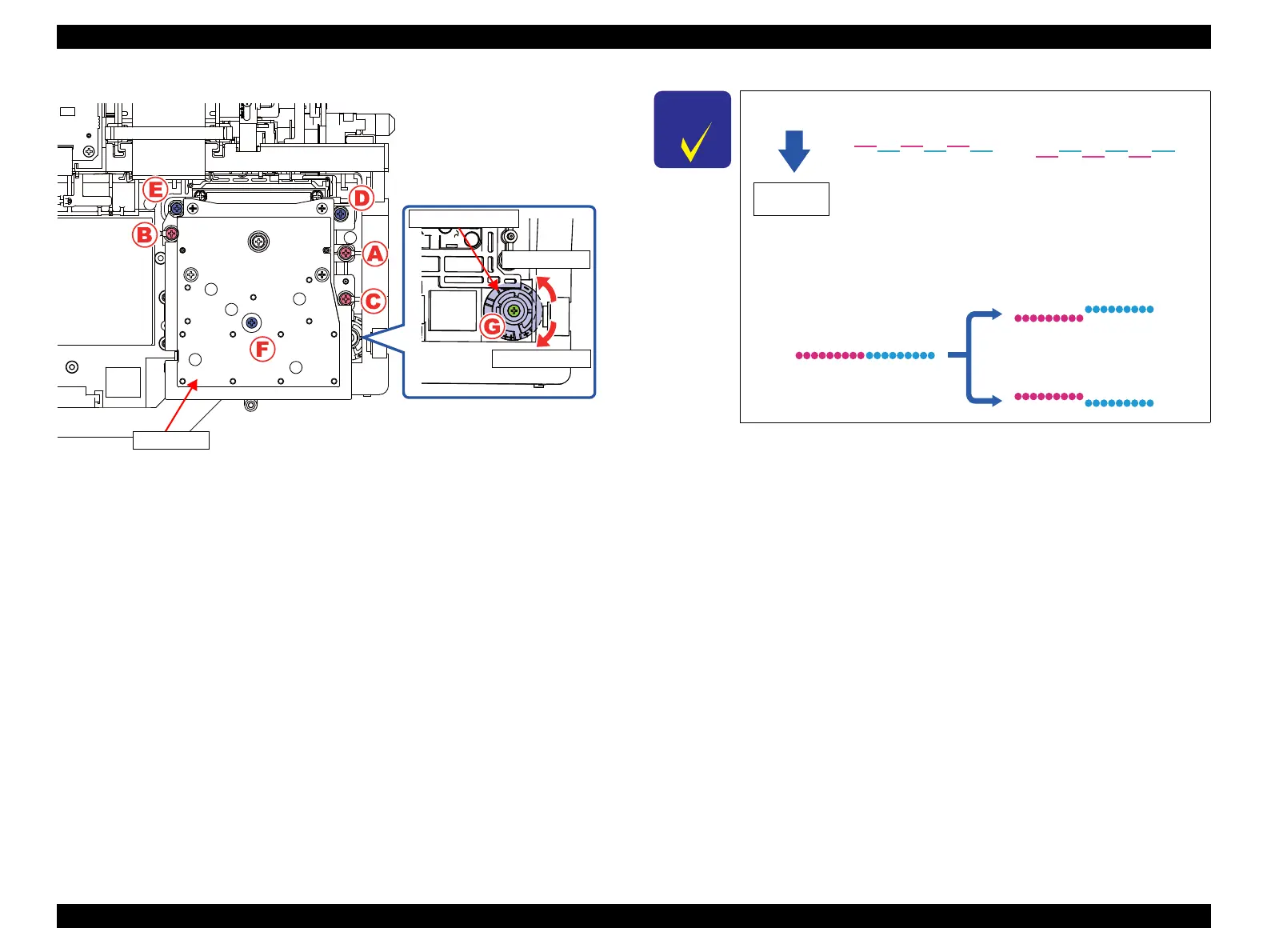

Figure 4-41. Correcting the Head Inclination
8. Tighten the three screws to secure the Head Holder.
Tighten them in the order shown below.
D - E - F
9. Tighten the screw to secure the Adjustment Knob.
10. Tighten the three screws to secure the Damper Kit.
(there is no particular order to tighten them.)
11. Attach the CR Cover.
12. Print the pattern and see if the inclination is corrected. If not, repeat the procedure
until normal pattern is printed.
13. When finished, click [Finish] and turn the printer OFF.
Adjustment Knob
Minus direction
Plus direction
Damper Kit
C H E C K
P O I N T
 For which direction to turn the knob, see below.
 The lines move about one-dot’s width when the knob is moved
by five or six notches.
Paper feed
direction
When Cyan lines lie
below Magenta lines,
turn clockwise
When Cyan lines lie
above Magenta lines,
turn counterclockwise
