Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
APPENDIX Connection Diagram 304
Confidential

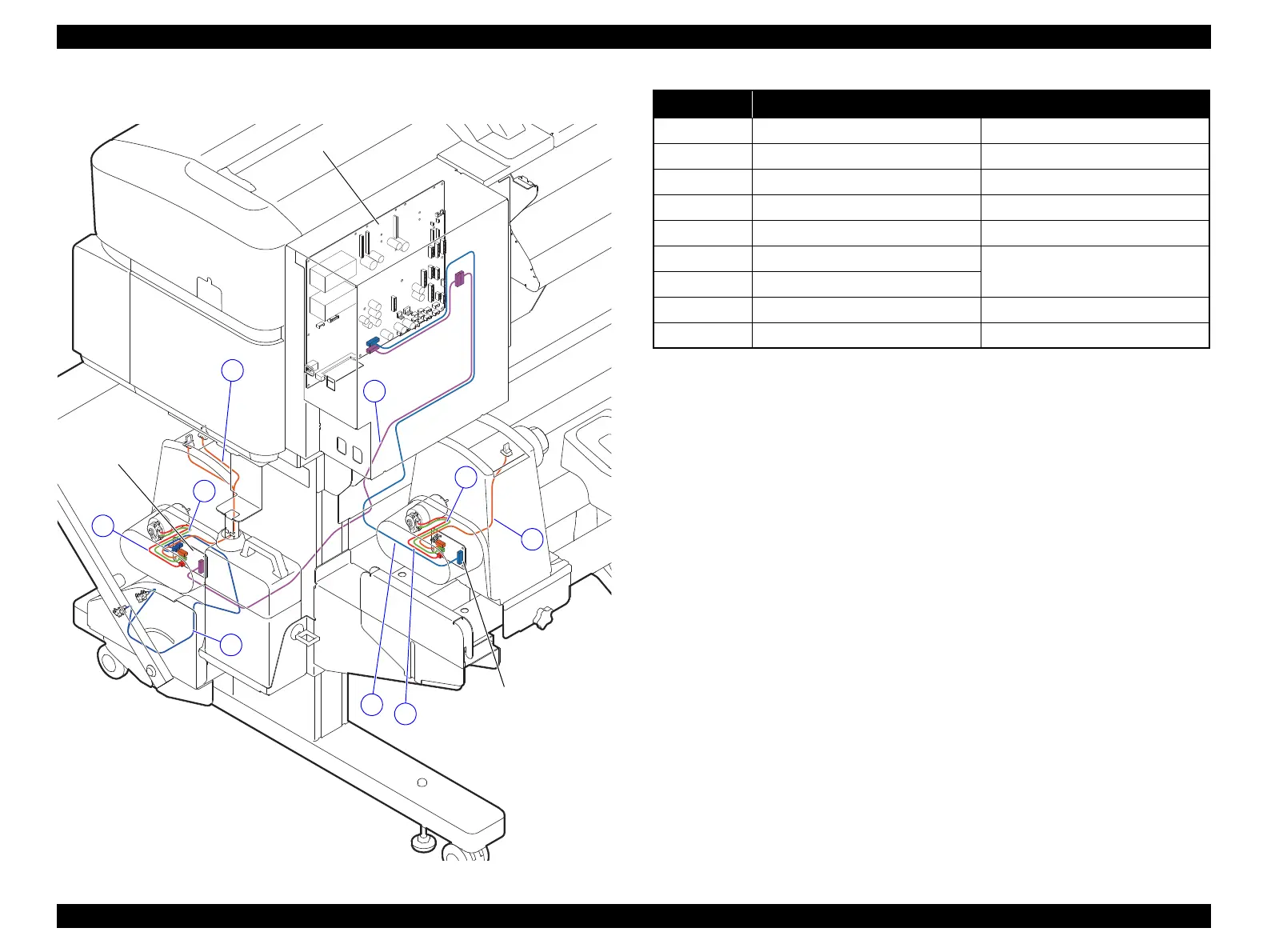

6.2.10 Roll Unit/Reel Unit
SUB-F Board (Roll)
1
2
6
4
3
5
7
8
9
SUB-F Board
(Reel)
Main Board
Cable No. Connection
1
SUB-F Board (Roll) (CN600) Main Board (CN600)
2
Roll Motor SUB-F Board (Roll) (CN604)
3
Roll Motor SUB-F Board (Roll) (CN602)
4
SW1 SUB-F Board (Roll) (CN606)
5
SUB-F Board (Reel) (CN600) Main Board (CN601)
6
SW1
SUB-F Board (Reel) (CN606)
7
SW2
8
Reel Motor SUB-F Board (Reel) (CN604)
9
Reel Motor SUB-F Board (Reel) (CN602)
