Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
ADJUSTMENT Head Related Checks and Adjustments 256
Confidential
4.11.6.3 Correcting Head Slant (PF direction)
1. Press the F11 key of the keyboard to unlock the CR unit.
2. Move the CR unit to the left end of the printer.
3. Remove the CR Cover.
(P. 119)
4. Loosen the screw that secures the Adjustment Knob.
5. Move the Adjustment Knob to correct the head slant.
See Figure 4-46 for which direction to move the knob.

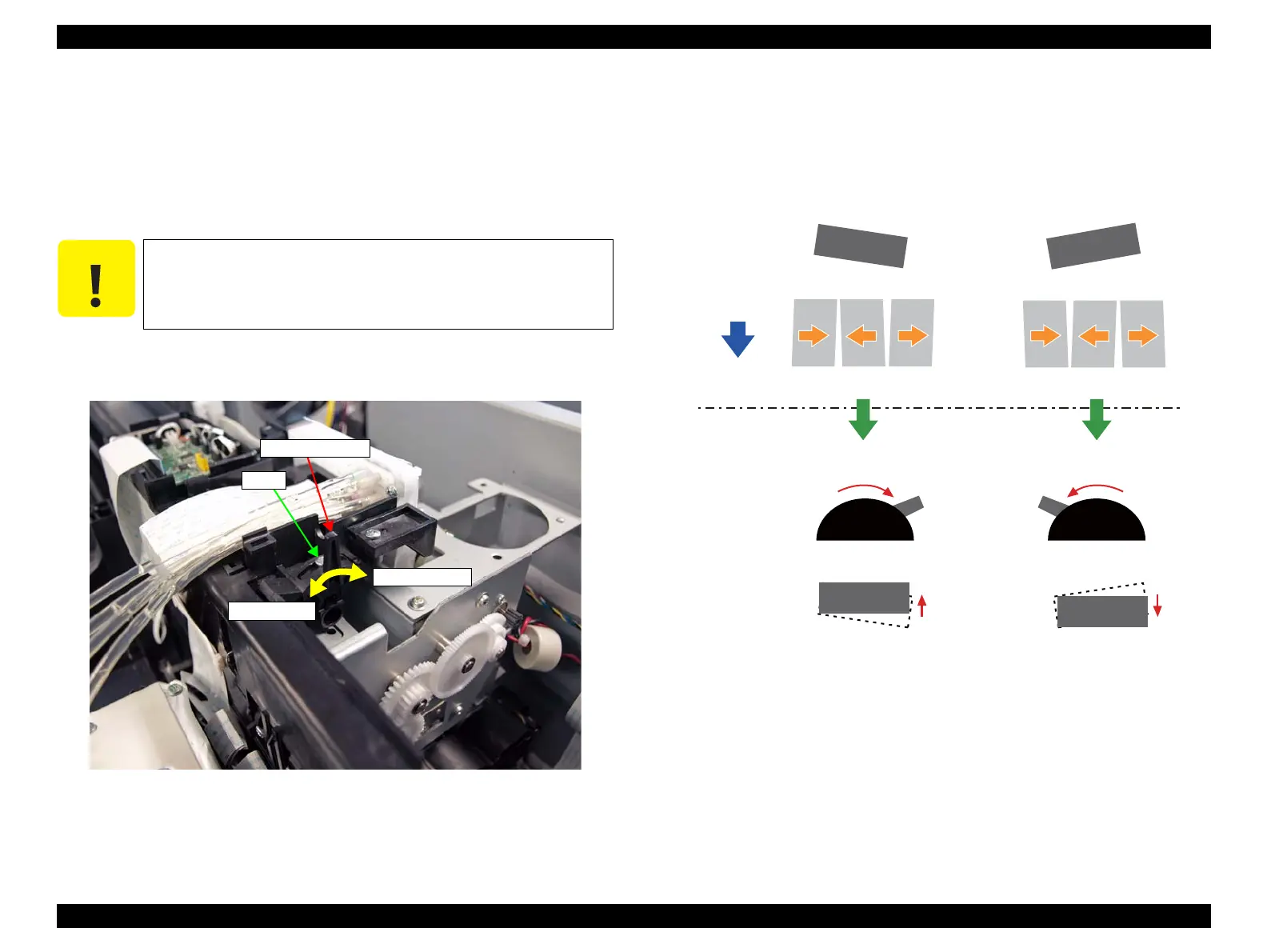

Figure 4-46. Correcting the Head Slant
6. Tighten the screw to secure the Adjustment Knob.
7. Print the pattern and see if the slant is corrected. If not, repeat the procedure until
normal pattern is printed.
8. When finished, click [Finish] and turn the printer OFF.
Figure 4-47. Adjustment
C A U T I O N
Be careful not to completely remove the screw that secures the
Adjustment Knob.
Adjustment Knob
Screw
Minus direction
Plus direction
Print Head
Print Head
Print Head
FrontRear
Print Head
FrontRear
FrontRear FrontRear
Paper feed direction
Condition of the head
Adjustment knob
Printed pattern
