ADJUSTMENT Head Related Checks and Adjustments 255
Confidential
4.11.6.2 Head Slant Manual Adjustment (PF direction)
1. Load the paper into the printer.
2. Turn the printer ON.
3. Start the Service Program and select Head slant manual adjustment (PF
direction).
4. Click [Run].
The adjustment pattern is printed.

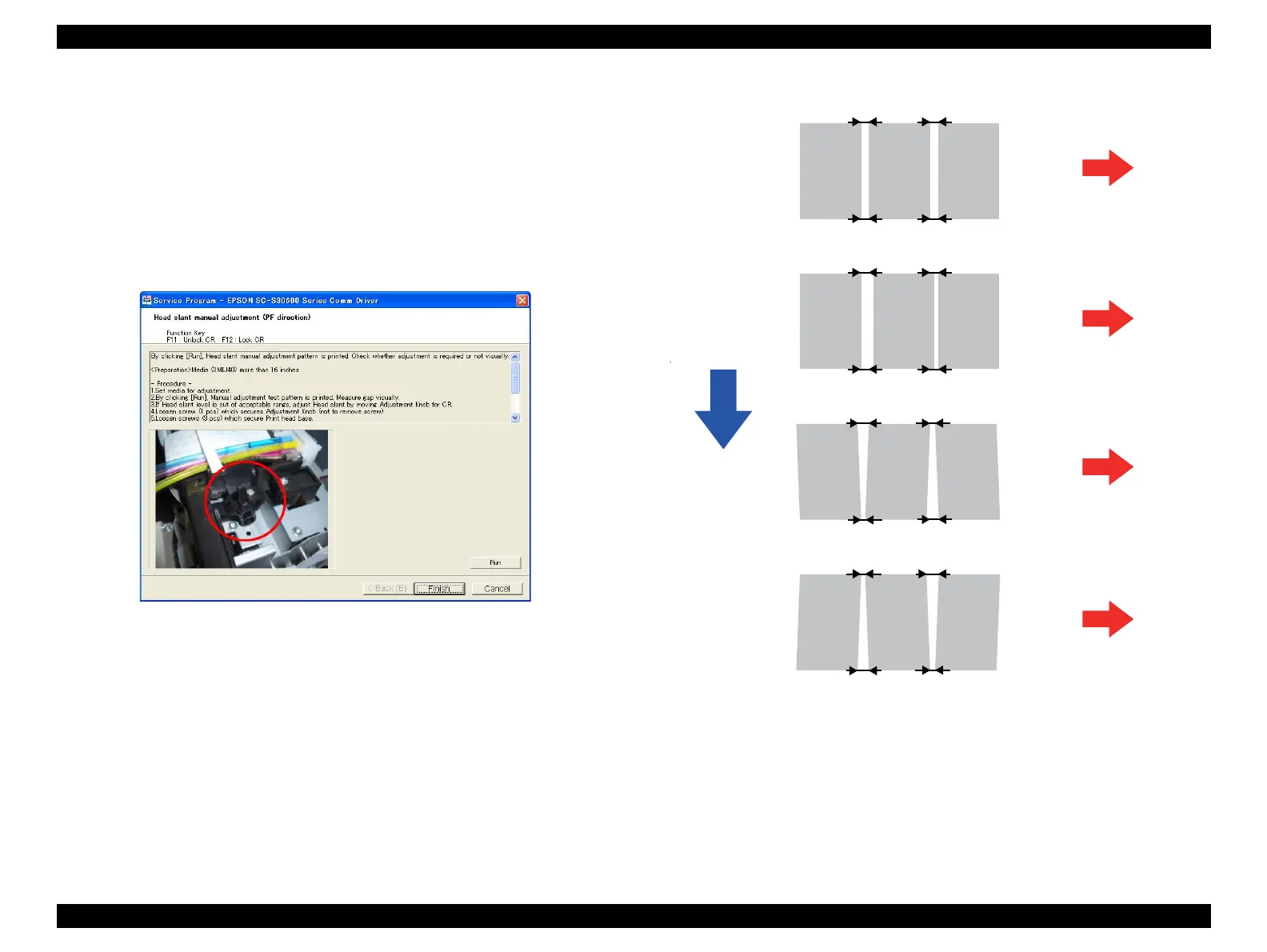

Figure 4-44. [Head slant manual adjustment (PF direction)] Screen
5. Examine the printed pattern.
See if the gaps between the squares are parallel. If so, no adjustment is required. If
not, make the adjustment referring to “4.11.6.3 Correcting Head Slant (PF
direction)” (p256).
Figure 4-45. Judgement
OK
A
B
C
D
A
B
C
D
A
B
C
D
A
B
C
D
A = B
C = D
OK
A = B
C = D
用紙搬送方向
NG
A ≠ B
C ≠ D
NG
A ≠ B
C ≠ D
It does not matter if the gap widths
(the width of A-B and that of C-D)
differ.
Paper feed direction
