12. Loosen the two screws that secure the driven pulley holder.
13. Turn the adjustment screw to adjust the belt tension.
 If larger than standard value: Turn the screw counterclockwise.
 If smaller than standard value: Turn the screw clockwise.
After adjusting the tension, tighten the screws loosened in Step 12, and then back
to Step 7.

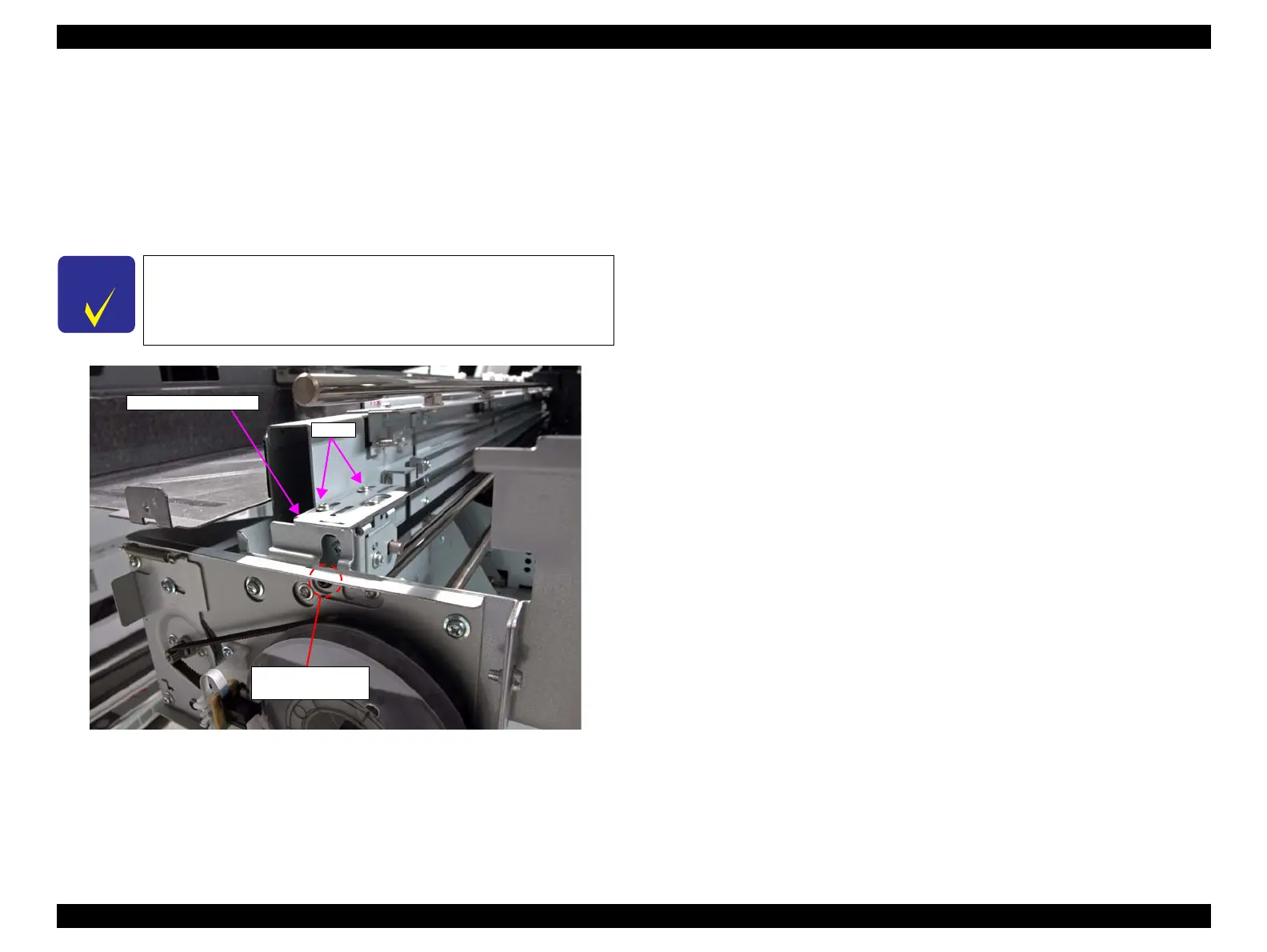

Figure 4-16. Tension adjustment screw
C H E C K
P O I N T
The tension is changed about 1.58N by turning the adjusting screw
for a quarter turn.
Tension adjustment
screw (black)
Screws
Driven Pulley Holder
