Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
ADJUSTMENT CR Related Adjustments 234
Confidential
8. Press [MEASURE] on the tensimeter and flip the belt with tweezers or a similar
tool.
9. Measure the belt tension for three times, and check if the average is within the
standards.
 Within the standards: Go to Step 10
 Out of the standards: Go to Step 12
10. Click [Finish].
11. Turn the printer OFF to finish the adjustment.

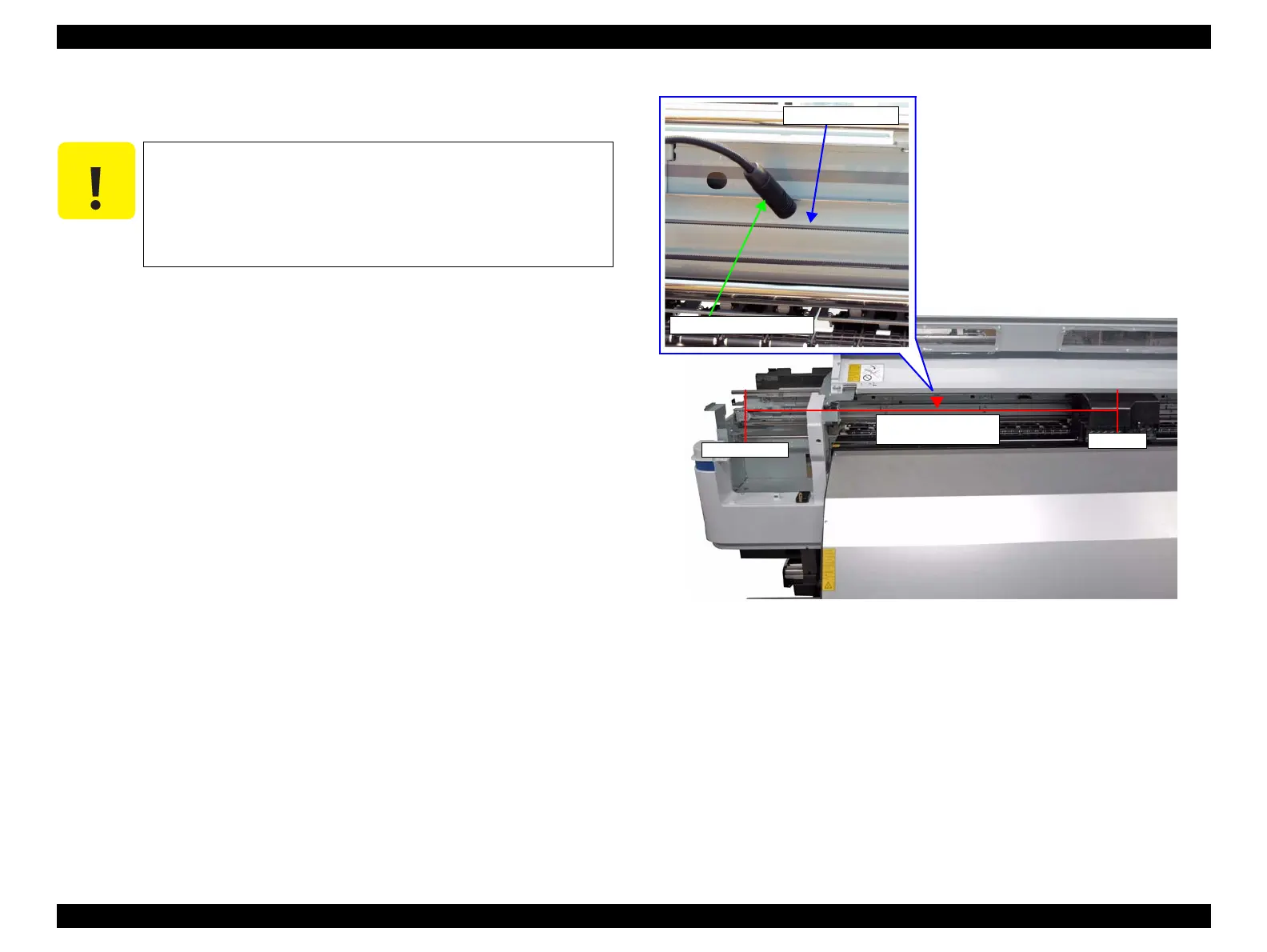

Figure 4-15. Measuring the belt tension
C A U T I O N
 Be sure to measure the tension of the belt on the upper side. If
you measure the tension of the belt on the lower side, the
measuring value may be inaccurate.
 Flip the belt as weak as the tensimeter can measure it.
 Be careful not to let the microphone touch the belt when
flipping the belt.
Upper timing belt
Measuring microphone
Center
(Measurement point)
CR Unit
Driven Pulley
