SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 98
Confidential
3.4.3.9 Left Cover
1. Remove the Left Rear Cover. (p94)
2. Remove the Left Upper Cover. (p95)
3. Remove the three screws and slide the Left Cover toward the rear to remove it.
A) Silver M4x12 P-tite screw with washer: 1 pcs
B) Silver M3x8 P-tite screw with washer: 1 pcs
C) Silver M4x10 S-tite screw with washer: 1 pcs

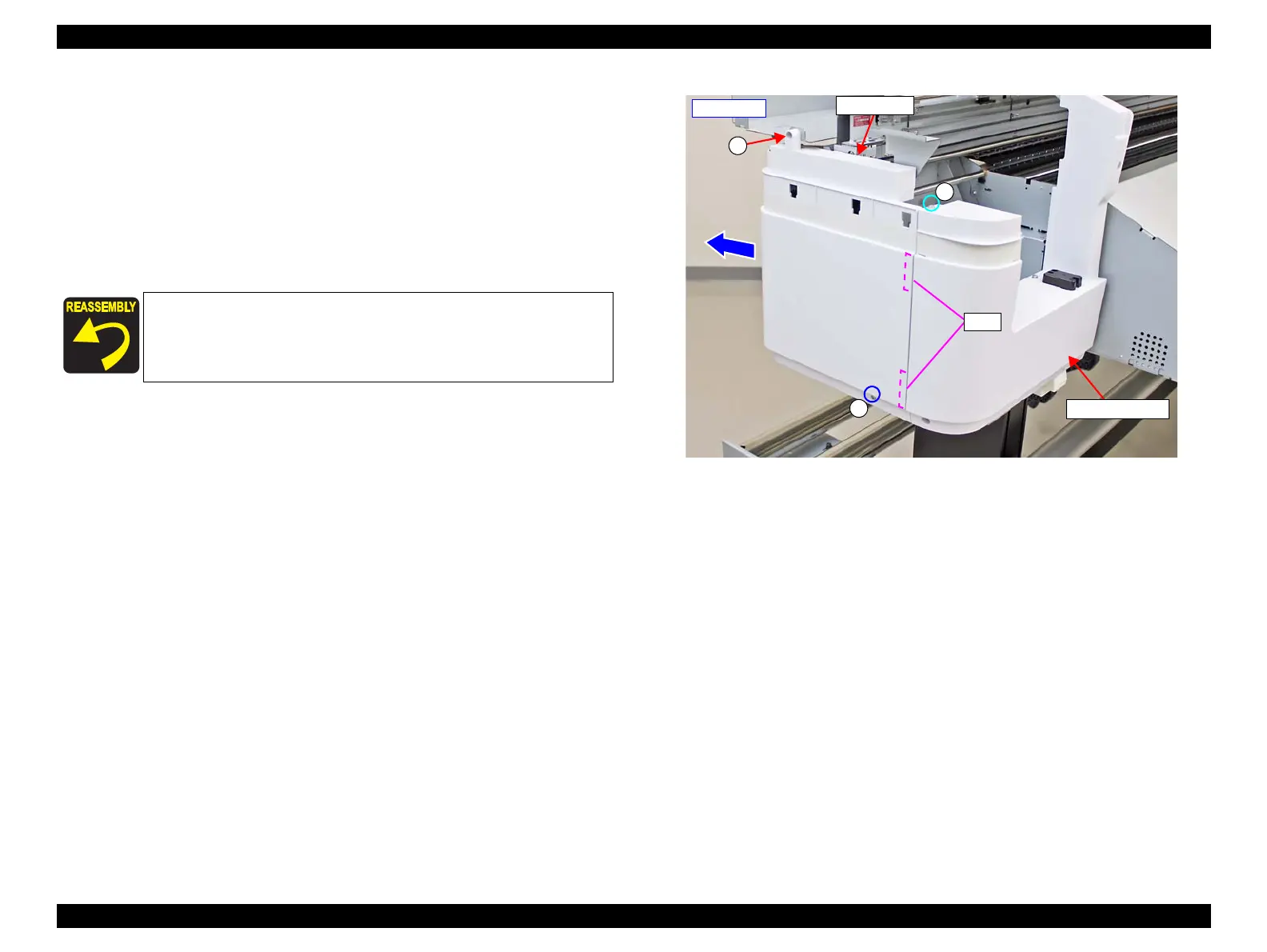

Figure 3-34. Removing the Left Cover
Insert the two tabs of the Left Front Cover into the two positioning
holes on the Left Cover.
A
B
- Left side -
Left Cover
Tabs
Left Front Cover
C
