DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 99
Confidential
3.4.3.10 Left Lower Cover
1. Remove the Left Rear Cover. (p94)
2. Remove the Left Upper Cover. (p95)
3. Remove the Left Cover. (p98)
4. Remove the two screws, and remove the Left Lower Cover sliding it toward the
rear of the printer.
A) Silver M4x12 P-tite screw with washer: 2 pcs

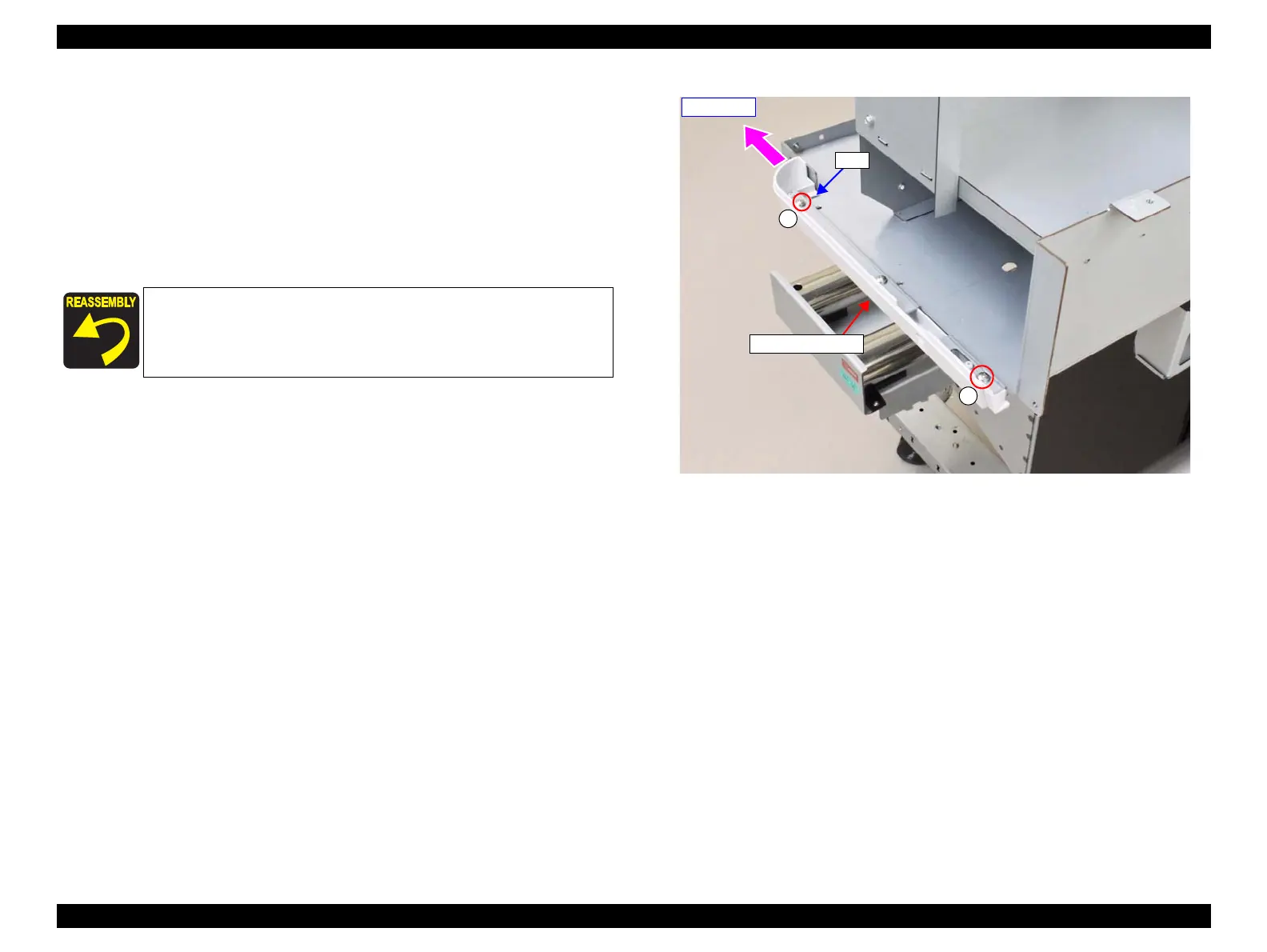

Figure 3-35. Removing the Left Lower Cover
Install the Left Lower Cover so that its tab comes on the main body
frame.
A
A
Tab
Left Lower Cover
- Left side -
