DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 94
Confidential
3.4.3.6 Left Rear Cover
1. Remove the screw, and remove the Left Rear Cover in the direction of the arrow.
A) Silver M4x10 S-tite screw with washer: 1 pcs

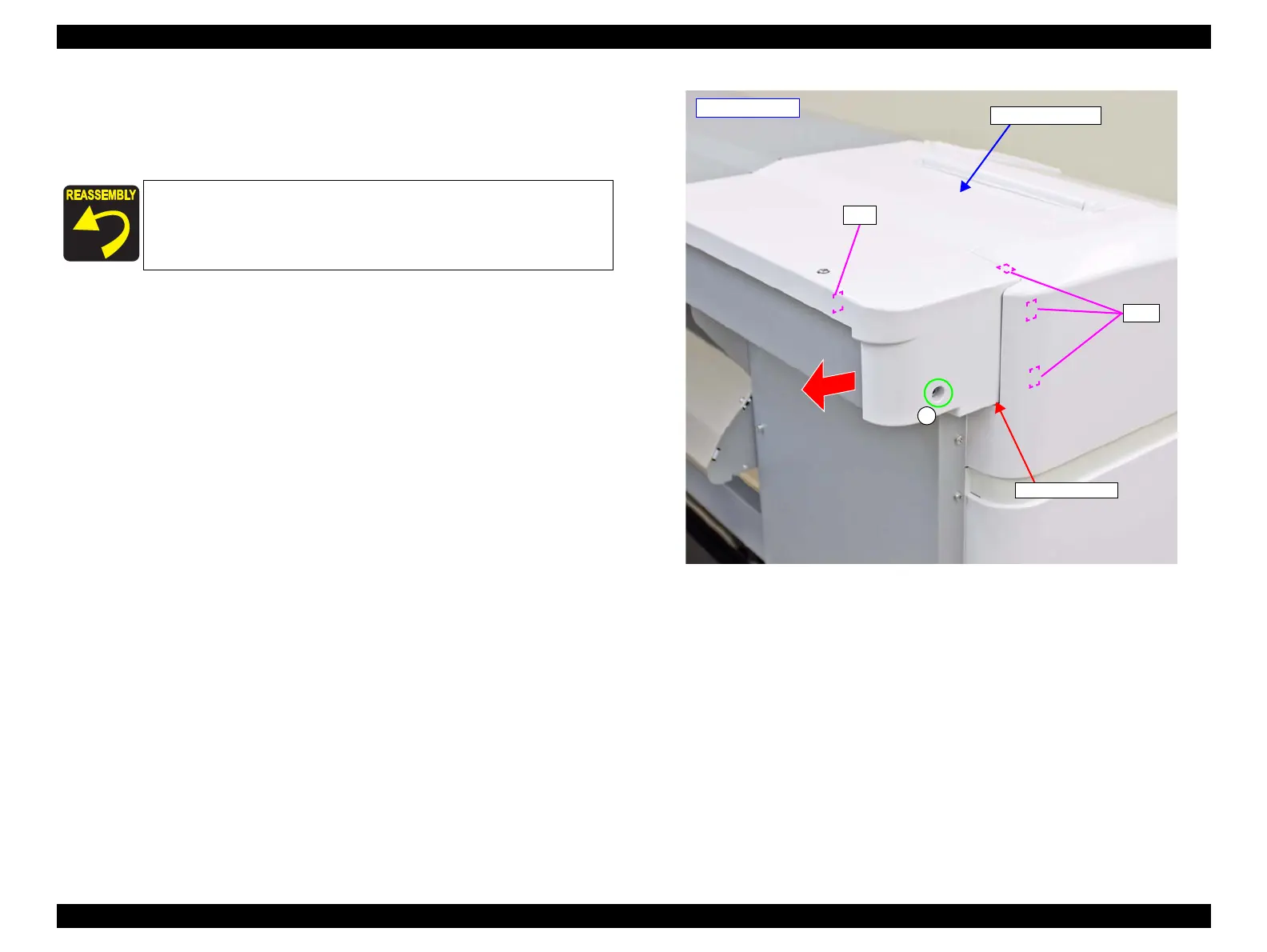

Figure 3-28. Removing the Left Rear Cover
Insert the four tabs of the Left Rear Cover into the four positioning
holes on the Left Upper Cover.
A
- Left rear side -
Left Upper Cover
Left Rear Cover
Tab
Tabs
