DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 93
Confidential
3.4.3.5 Right Lower Cover
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Right Cover. (p92)
5. Remove the three screws, and remove the Right Lower Cover sliding it toward the
rear of the printer.
A) Silver M4x12 P-tite screw with washer: 3 pcs

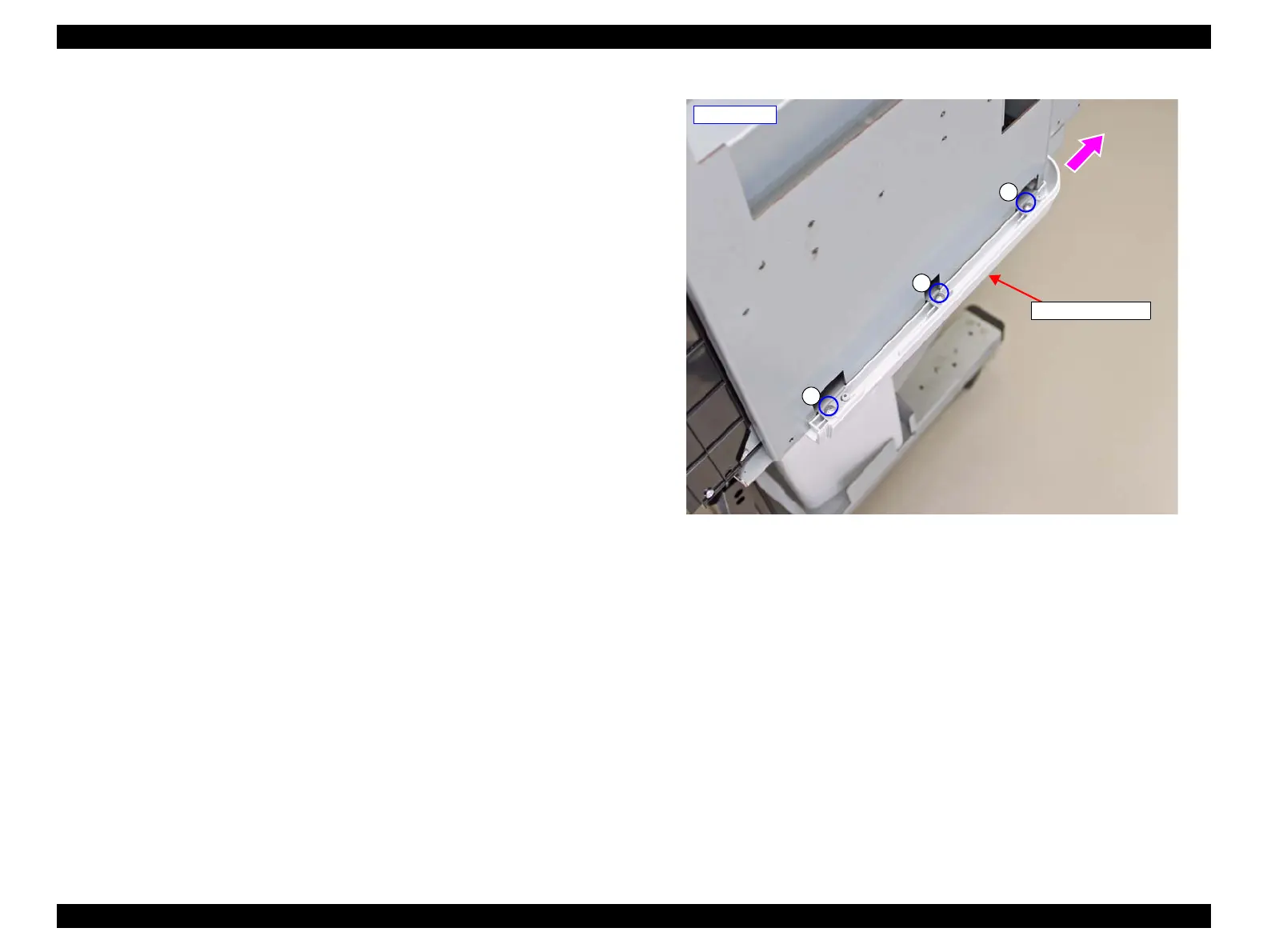

Figure 3-27. Removing the Right Lower Cover
A
A
A
- Right side -
Right Lower Cover
