SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 88
Confidential
3.4.3.2 Right Upper Cover
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Push the Media Loading Lever Frame toward the rear of the printer to move the
lever to its release position.

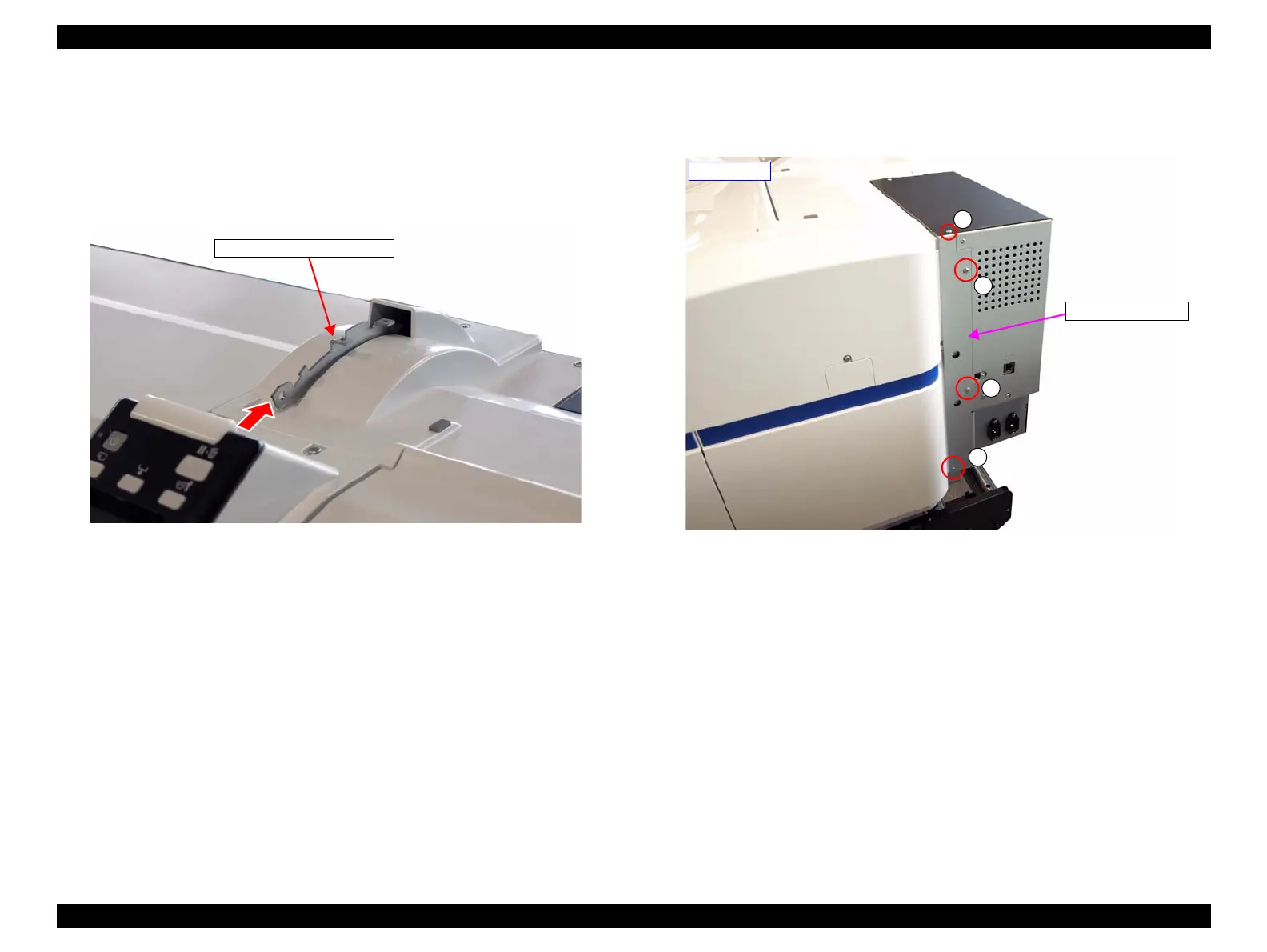

Figure 3-19. Moving the Media Loading Lever Frame
4. Remove the four screws, and remove the Board Right Frame.
A) Silver M3x6 screw: 4 pcs
Figure 3-20. Removing the Board Right Frame
Media Loading Lever Frame
A
A
A
A
Board Right Frame
- Right side -
