SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 89
Confidential

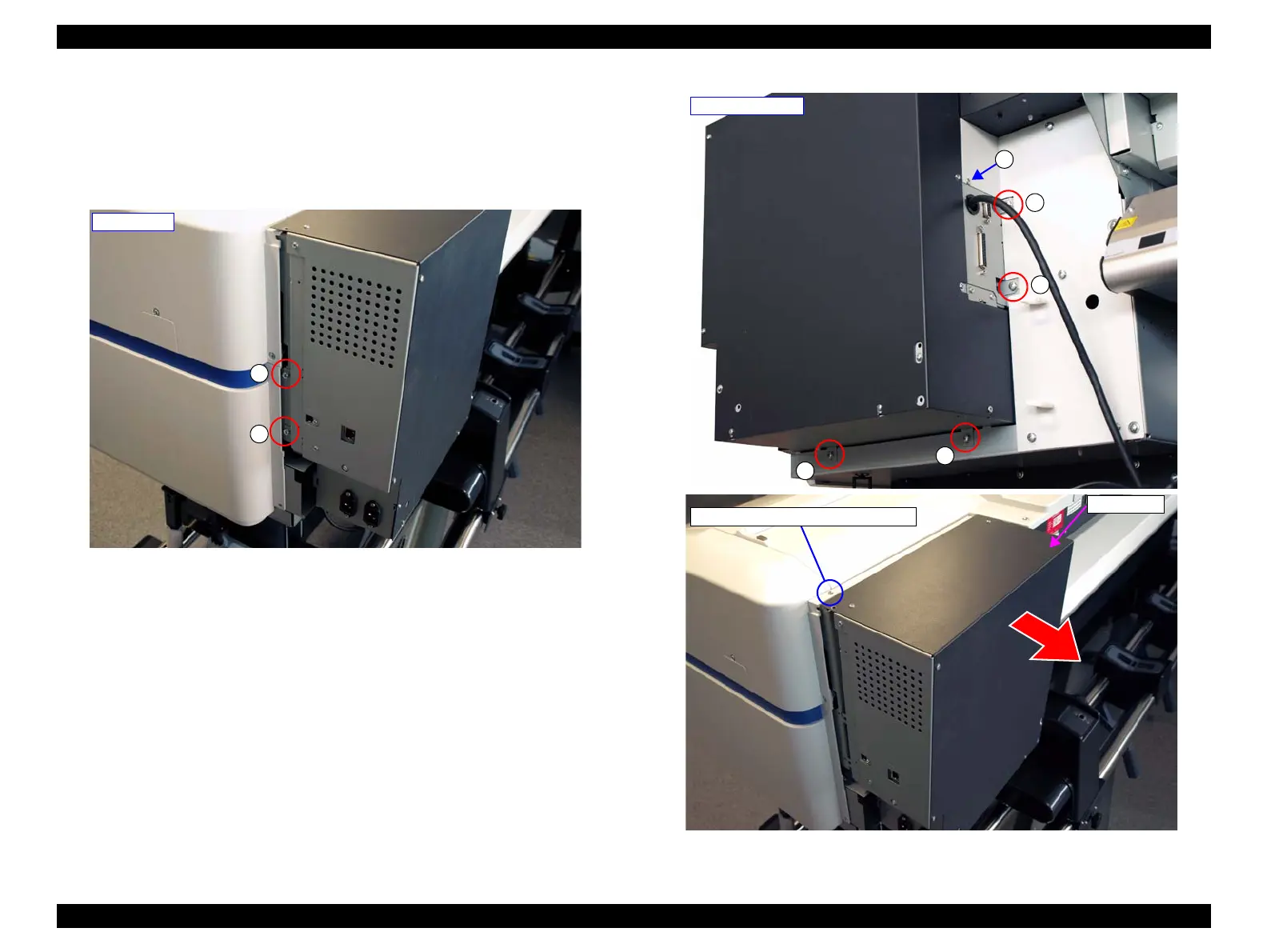

5. Remove the seven screws that secure the Board Box, and slide the Board Box in
the direction of the arrow.
B) Silver M4x10 screw with washer: 6 pcs
C) Silver M3x6 screw: 1 pcs
Figure 3-21. Sliding the Board Box
Figure 3-22. Sliding the Board Box
B
B
- Right side -
B
B
B
B
C
- Right rear side -
Board Box
Slide the box until this screw appears.
