SC-S30600 Series
Revision B
DISASSEMBLY & ASSEMBLY
Disassembly and Assembly Procedure
87
Confidential
6.
Disconnect the FFC from the
connector of the Panel Board.
7.
Disengage the two hooks and separate the Panel Unit from the Panel Unit Assy.

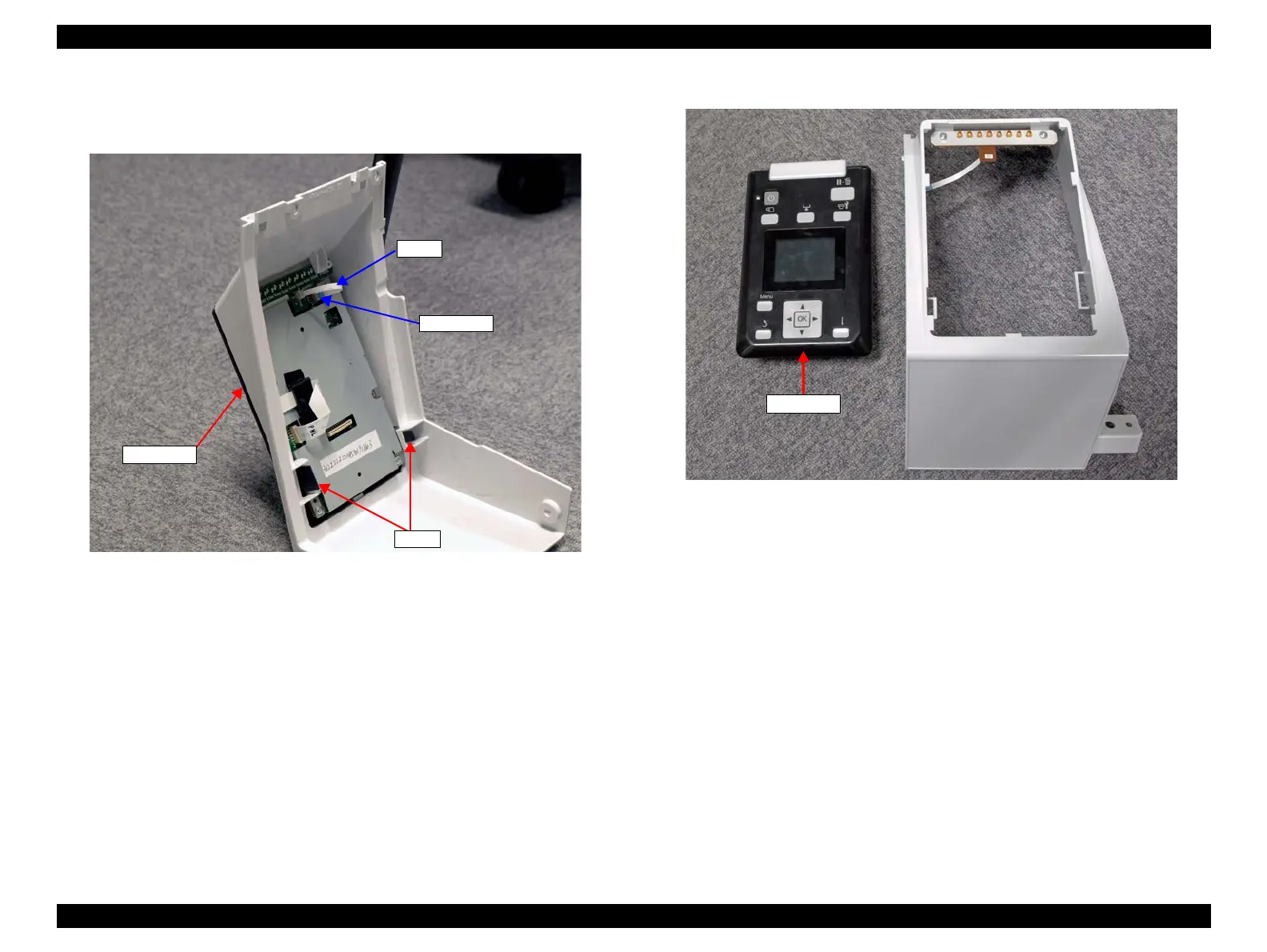

Figure 3-17. Removing the Panel Unit
Figure 3-18. Disassembled Panel Unit
Connector
Panel Unit
FFC
Hooks
Panel Unit
86
88
Table of Contents
Service Manual
1
About this Manual
4
Manual Configuration
4
Symbols Used in this Manual
5
Product Description
9
Product Description
10
Basic Specifications
12
Ink Specifications
13
Printing Specifications
14
Hardware Specifications
16
Part Names
17
Control Panel
19
Setup Menu
22
Serviceman Mode
31
Trouble Shooting
33
Overview
34
Troubleshooting Procedure
35
Remedies for Maintenance Requests
36
Remedies for Service Call Error
37
Remedies for Print Quality Troubles
49
Trouble on Paper Feeding
53
Other Troubles
57
Trouble on Service Program
59
Trouble on NVRAM Viewer
60
Overview
62
Cautions after Assembling
64
Recommended Tools
65
Parts Diagram
66
Disassembly Flowchart
76
Carriage Mechanism
78
Disassembly and Assembly Procedure
82
Consumables/Accessories
84
Housing
86
Electric Circuit Components
107
Carriage Mechanism/Ink System Mechanism
119
Paper Feed Mechanism
158
Heater Mechanism
171
Roll Unit
176
Reel Unit
184
Additional Drying Fan Unit
192
Overview
199
Adjustment Items and the Order by Repaired Part
200
Adjustment Items
210
Tools/Consumables for Adjustments
217
Service Program Basic Operations
218
NV-RAM BACKUP / NVRAM Viewer
219
NVRAM Viewer Basic Operation
220
ADJUSTMENTS (Individual)
225
ADJUSTMENTS (Sequence)
226
Installing Firmware
227
Image & Test Print
228
Counter Reset
229
References
231
Initial Ink Charge Flag
232
CR Related Adjustments
233
APG Function Check
236
Ink Mark Sensor Check & Auto Adjustment
238
CR Scale Check
239
CR Active Damper Auto Adjustment
240
Auto Uni-D Adjustment
241
Auto Bi-D Adjustment
242
PG Adjustment
243
Head Related Checks and Adjustments
245
Head ID Input
246
Nozzle Check
248
Cleaning
250
Head Inclination Adjustment (CR Direction)
251
Head Slant Adjustment (PF Direction)
254
Ink Supply Related Checks and Adjustments
257
Tube Inner Cleaning
258
Initial Ink Charge
259
Media Feed Related Checks and Adjustments
260
PF Scale Check
262
Media Feed Auto Adjustment
263
Boards Related Checks and Adjustments
264
MAC Address Input
265
Serial Number Input
266
Board Replacement Date & Time Setting
267
Other Printer Checks and Adjustments
268
Suction Fan Adjustment
269
Heater Function Check
270
Panel Setting Reset & Job History Reset
271
Single Channel Cleaning
272
Panel LCD Operation Check
273
Motor Measurement & Automatic Adjustment
274
Rear AD Adjustment
275
Overview
277
Setting Up/Storing the Printer
278
Transportation
279
Exchange Parts
280
Cleaning
282
How to Clean
284
Lubrication
288
Block Wiring Diagram
291
Connection Diagram
292
Ink Cartridge Holder
294
Ink Cartridge Holder
295
CR Unit
296
CR Unit
297
CR Drive Mechanism
298
Paper Feed Mechanism/Pump Mechanism
300
Pre Heater/Platen Heater
302
After Heater
303
Roll Unit/Reel Unit
304
Additional Print Drying Unit
305
Panel Menu Map
307
Part Names Used in this Manual
310
Exploded Diagram/Parts List
312
