Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 175
Confidential
3.4.7.4 Cooling Fan
1. Remove the After Heater. (p174)
2. Remove the Sub-E Board Cover. (See Step 2 in
“3.4.4.6 Sub-E Board” (P. 115))
3. Disconnect the cable of the Cooling Fan from the connector (CN518) on the Sub-E
Board.
4. Release the cable of the Cooling Fan from the two clamps.
5. Insert the screwdriver through the holes on the frame at the Cooling Fan side to
remove the two screws that secure the Cooling Fan, and remove the Cooling Fan.
A) Silver M3x22 S-tite screw: 2 pcs

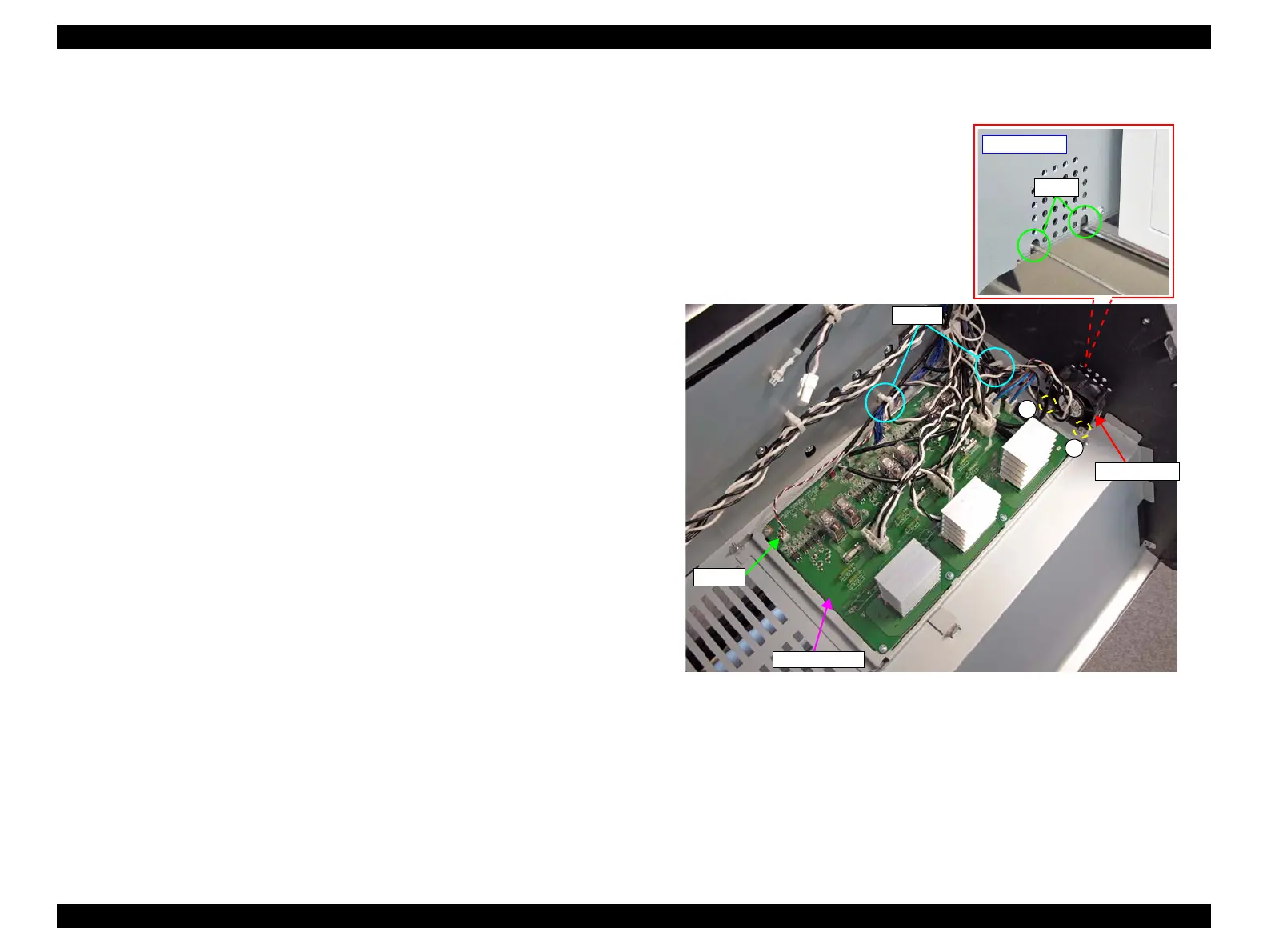

Figure 3-139. Removing the Cooling Fan
- Right side -
Holes
Clamp
Cooling Fan
Sub-E Board
A
A
CN518
