Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 185
Confidential

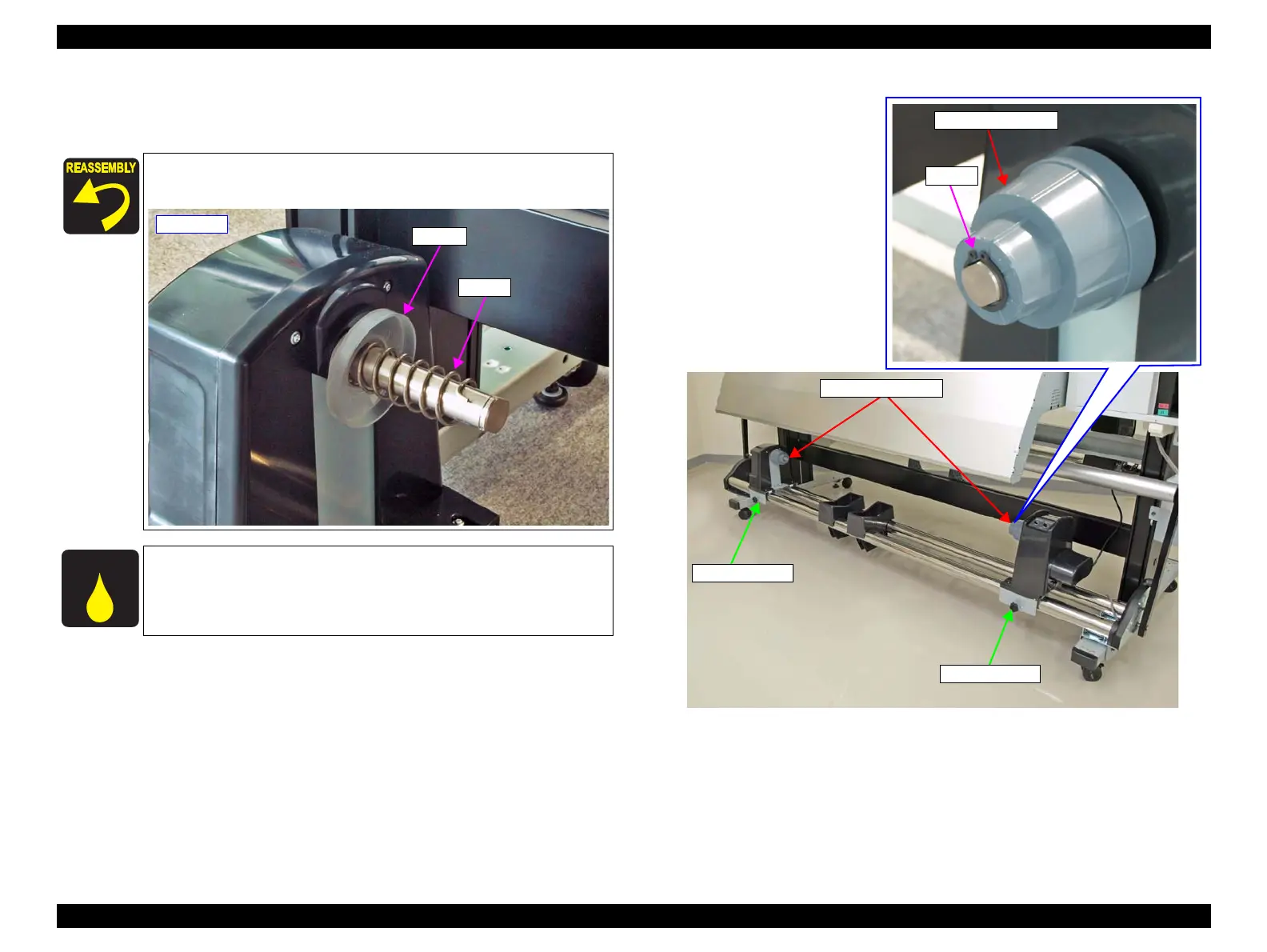

3.4.9.2 Roll Paper Holder
1. Remove the C-ring (, and remove the Roll Paper Holder.
Figure 3-151. Removing the Roll Paper Holder
Before installing the Roll Paper Holder on the left, install the
holder and the spring as shown in the figure below.
LubricationLubrication
When replaced with a new part, make sure to lubricate the new one
referring to “5.6 Lubrication” (p288).
- Left side -
Holder
Spring
C-ring
Roll Paper Holder
Right Reel Unit
Left Reel Unit
Roll Paper Holder
