Display Description

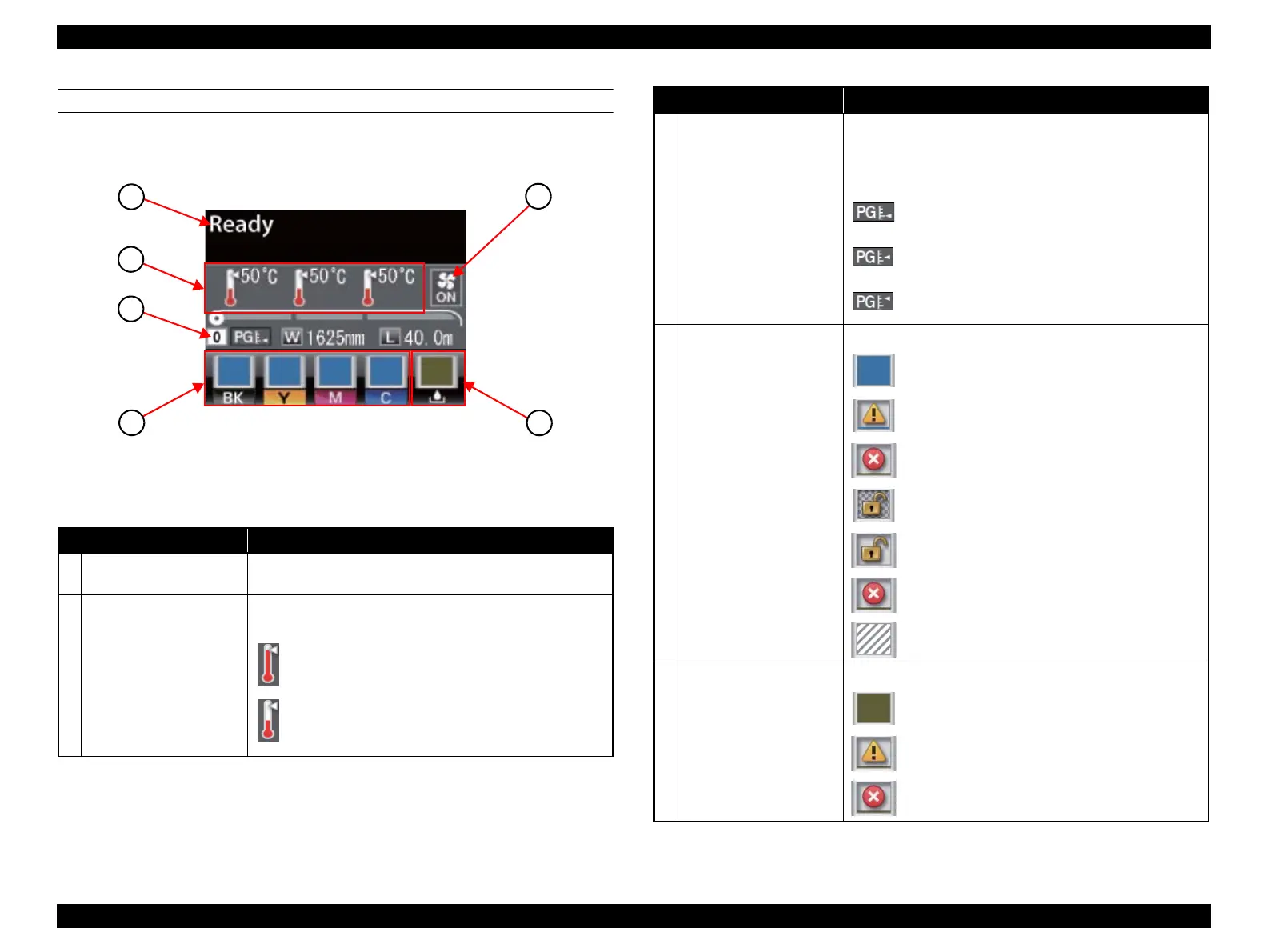

Figure 1-9. LCD
Name Function
1 Message
Printer status, operating status, or an error message is
displayed.
2 Heater temperature
The preset temperature of the Heater is displayed. (From left,
Pre Heater, Platen Heater, After Heater)
The heater temperature has reached the preset temperature.
The heater temperature has not reached the preset temperature.
3 Media information
The setting number of the selected media, platen gap, media
width and remaining amount of the media are indicated from
the left. Icons of platen gap change according to the set value
as follows.
: 1.5
: 2.0
: 2.5
4 Ink cartridge status
The current ink level and status are indicated.
Ready
Low
Under the limit amount
Unlocked
Uninstalled
Error
Cleaning cartridge is installed.
5 Waste ink bottle status
The current Wasted Ink Bottle status is indicated.
No problem
Almost full
Full
