Part Name CR Slider
Lubricants (Part Code) G-84 (1516265)
Amount 2 mm x 7 mm
Lubrication Tool 2 mm injector
Lubrication Manner

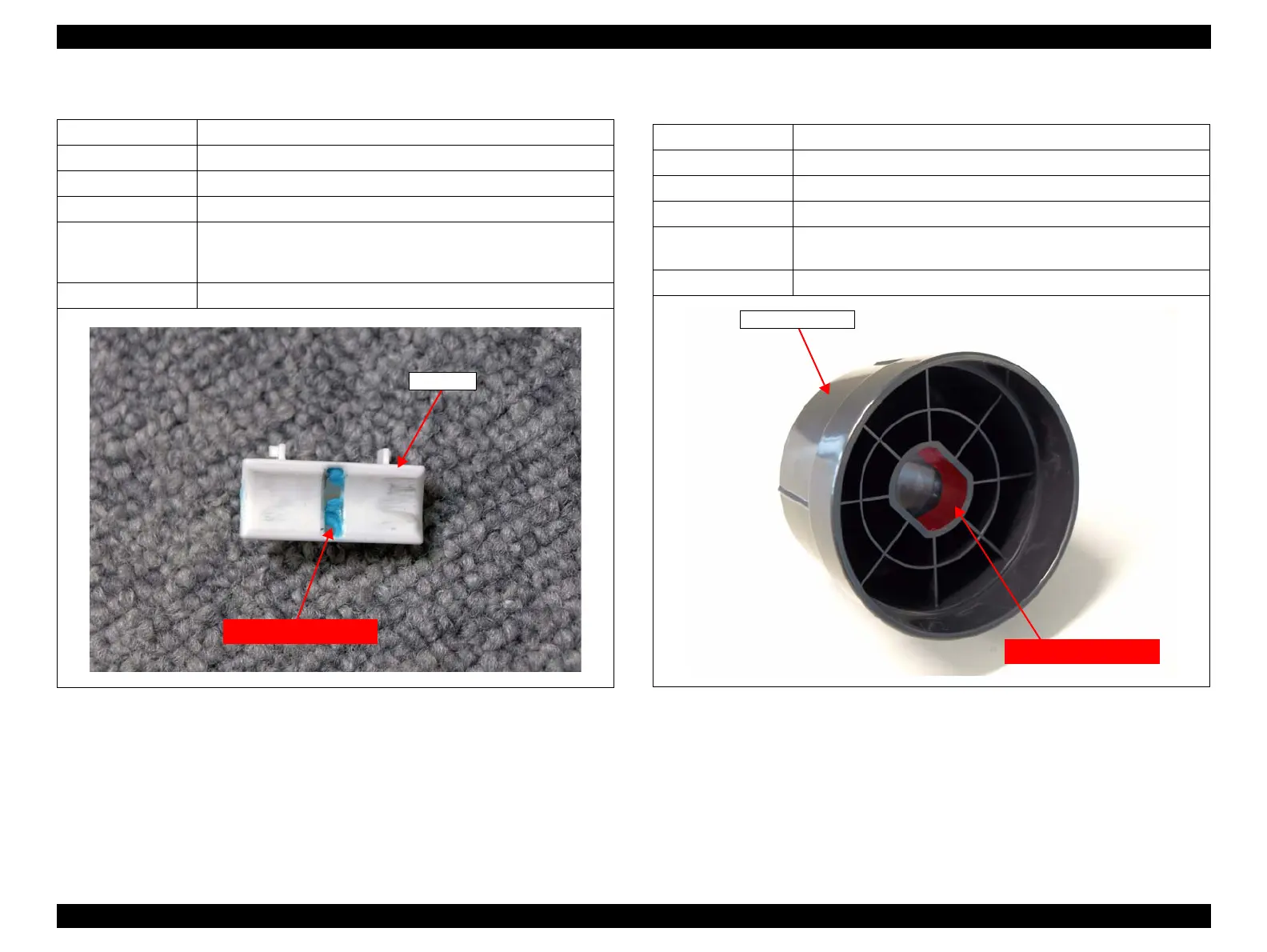

Apply the lubrication to the portion of the CR slider where it contacts
with the secondary axis.
Using an injector, apply lubricant so as to fill in the band.
Note Be careful not to apply lubricant beyond the specified point.
CR Slider
Lubrication Point
Part Name ROLL PAPER HOLDER (RIGHT/LEFT)
Lubricants (Part Code) G-81 (1574337)
Amount 25 mm x 76.7 mm
Lubrication Tool Flux dispenser
Lubrication Manner
Using a flux dispenser, apply lubricant to the portion of the Roll paper
holder where it contacts with the axis.
Note ---
Roll Paper Holder
Lubrication Point
