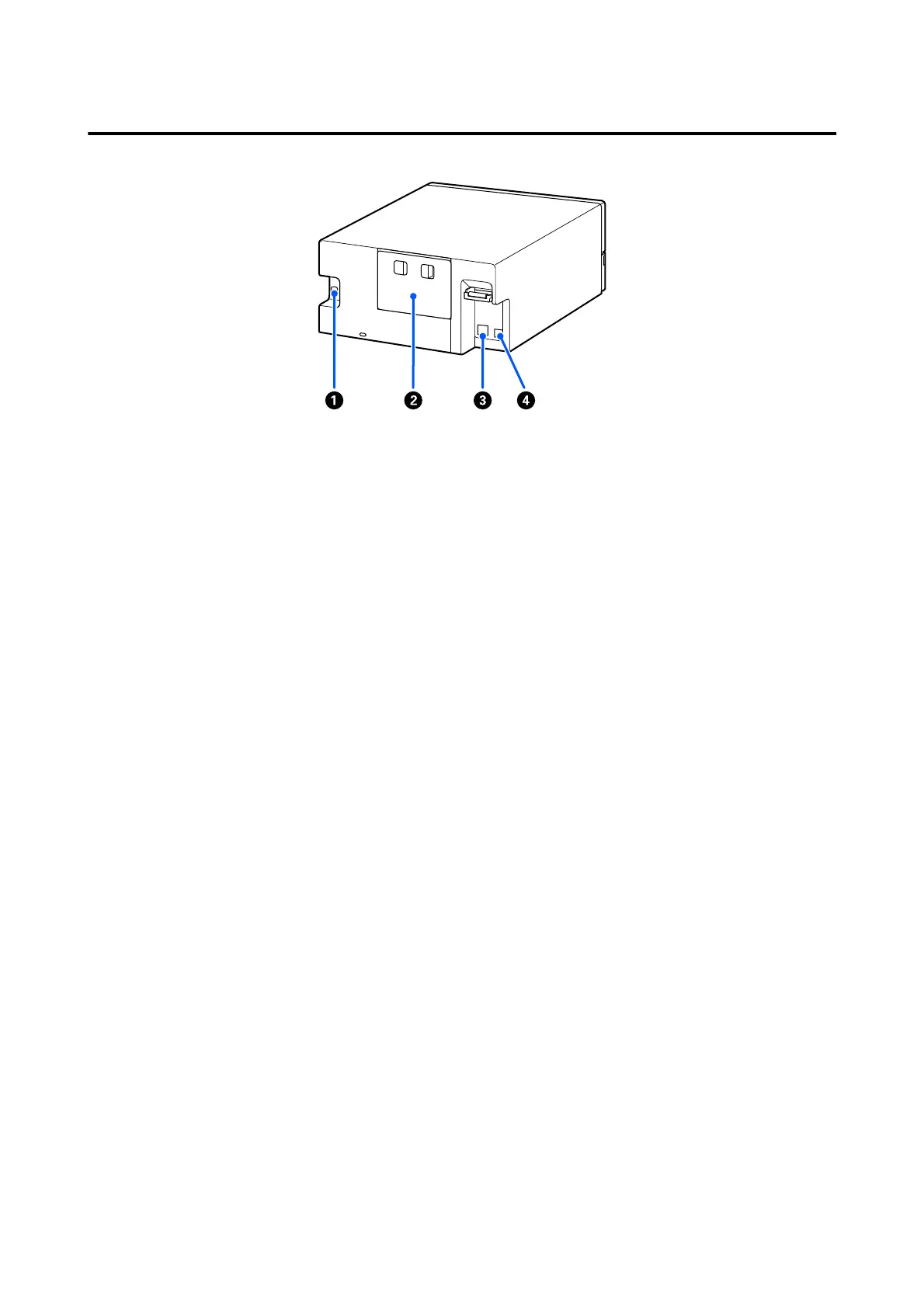

Rear

A AC inlet

Connects the power cord to the printer.

B Rear cover

Remove when doing maintenance or removing paper jams.

By removing the rear cover, you can pull out the interior to the point that the print head is visible.

C LAN port

Connects the LAN cable.

D USB port

Connect the USB cable here.
