Epson SL-D500 Series - Print Nozzle Check Pattern Method

B
Select a printer, in the printer list area on the
main screen, on which to execute a nozzle
check.
When you select multiple printers, press and
hold Ctrl as you select the targeted printers.
See the following for more details on the main
screen.
U “Explanation of the Main Screen” on
page 65
C

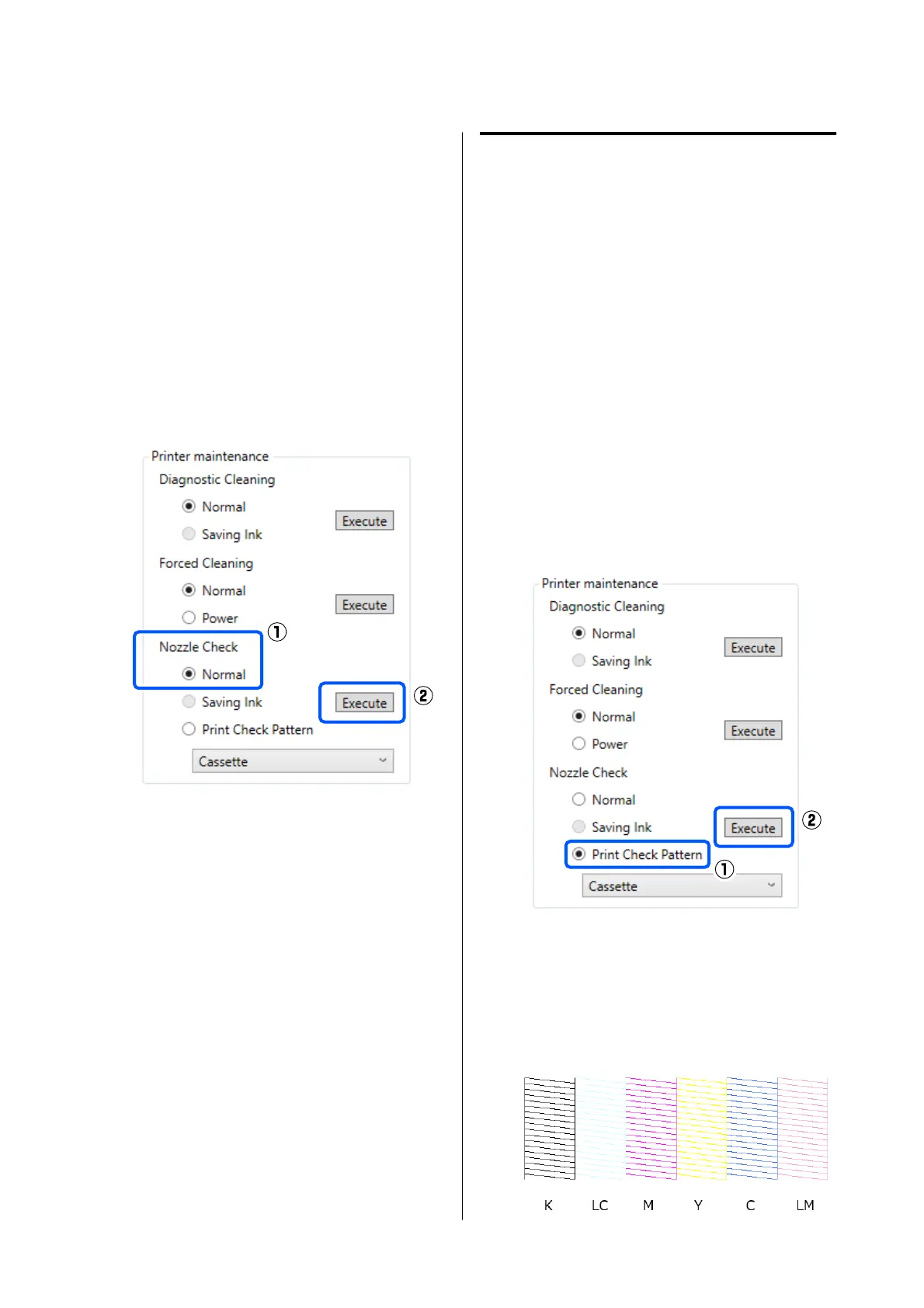

In Printer maintenance - Nozzle Check, select
Normal, and then click Execute.
Saving Ink cannot be selected on the printer.
Nozzle check is executed.
D
Check the results of nozzle checks in the
message displayed in Printer history.
When "<Printer name>-Nozzle Check is
complete." is displayed, the work is complete.
When “Clogged nozzles detected. Perform
[Forced Cleaning].” is displayed, execute
Forced Cleaning.
U “Forced Cleaning” on page 75
Perform Print Check Pattern to check the
condition of the nozzles.
U “Print Nozzle Check Pattern Method” on
page 73
Print Nozzle Check Pattern
Method
A
Load paper in the paper cassette.
U “How to Load Paper” on page 25
B
Select a printer, in the printer list area on the
main screen, on which to print a nozzle check
pattern.
When you select multiple printers, press and
hold Ctrl as you select the targeted printers.
See the following for more details on the main
screen.
U “Explanation of the Main Screen” on
page 65
C
In Printer maintenance - Nozzle Check, select
Print Check Pattern, and click Execute.
The check pattern is printed.
D
Review the printed check pattern while
referring to the following section.
Example of clean nozzles
SL-D500 Series User's Guide
Using the Maintenance Tool (Windows)
73
