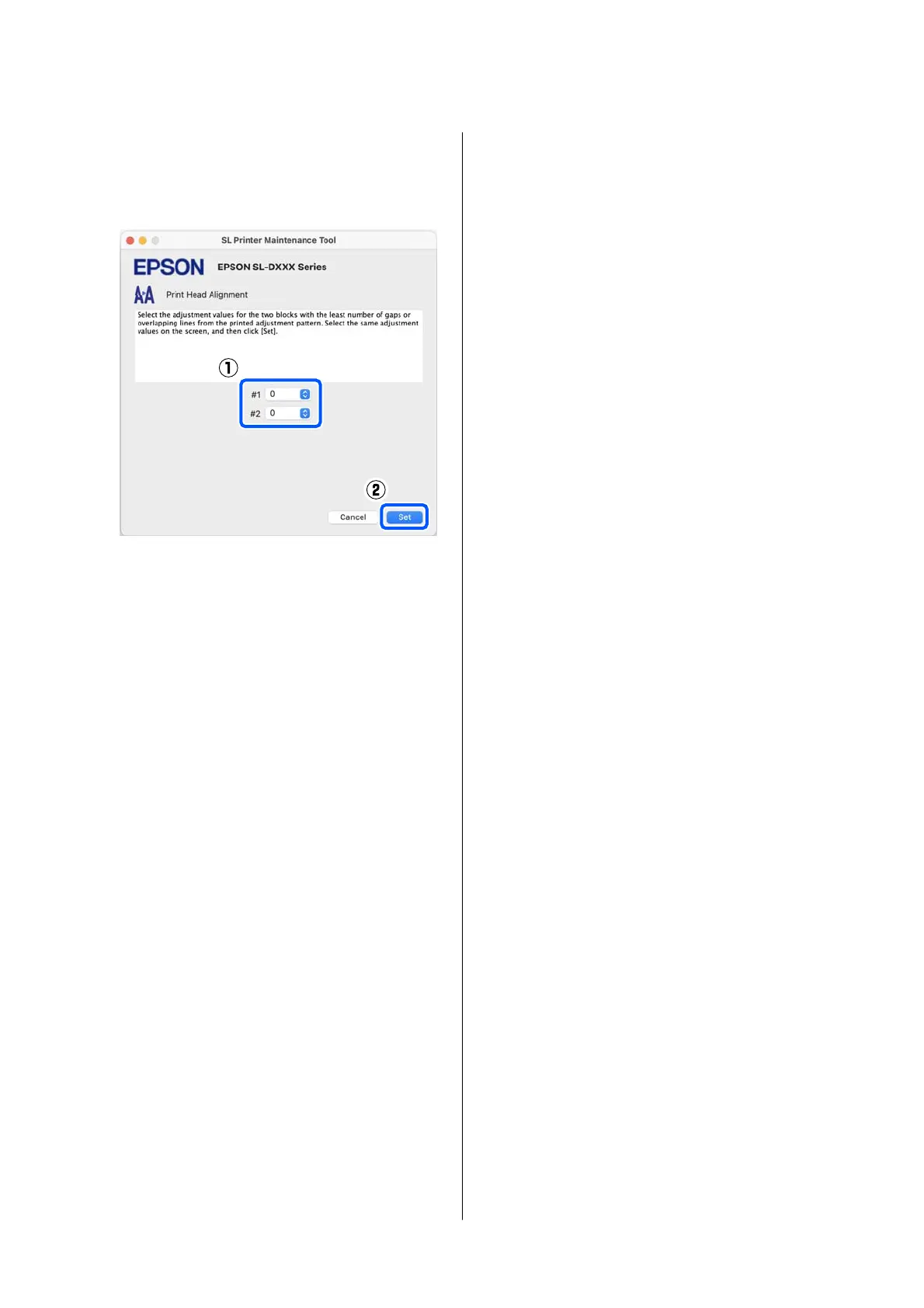

F
Selec
t the number of the prin
t pattern
you
confirmed, and then click
Set
.
Selec
t the number of the prin
t pattern
you
confirmed individ
u
ally fo
r b
oth
#1
and
#2
.
The adj
ustmen
t values are ap
plied.
SL
-D500 Series User's Guide
Using the
Maintena
nce T
o
ol (Mac
)
89
88
90
Table of Contents
Table of Contents
3
Notes on Manuals
6
Meaning of Symbols
6
Screen Shots in the Guide
6
Manual Organization
6
Viewing PDF Manuals
6
Before Use
8
Printer Parts
8
Front
8
Inside
10
Rear
12
Control Panel
13
Understanding and Operating the Display
14
Home Screen
14
Text Input Screen
15
Notes on Usage
16
Notes When Handling the Main Unit
16
Notes on Paper
16
Notes on Handling Ink Bottles
18
Introducing the Software
19
Installing Maintenance Tool (Windows Only)
22
How to Use EPSON Software Updater
22
Checking Software Update Availability
22
Receiving Update Notifications
22
How to Use Web Config
22
Instructions for Starting
23
Exiting Procedure
23
Uninstalling Software
23
Windows
23
Mac
24
Basic Operations
25
Loading Paper
25
Item Prepared
25
How to Load Paper
25
Basic Printing Methods (Windows)
28
How to Print from Photoshop
28
How to Cancel Printing (from the Computer)
30
How to Cancel Printing (from the Printer)
31
Basic Printing Methods (Mac)
31
How to Print from Photoshop
31
How to Cancel Printing (from the Computer)
34
How to Cancel Printing (from the Printer)
34
Printing Using Various Print Functions
35
Color Management
35
Color Management Settings
35
Setting Colors Manually
35
Color Management from the Application (no Color Management)
38
Color Management from the Printer Driver (ICM) (Windows)
39
Color Management from the Printer Driver (Colorsync) (Mac)
40
Borderless Printing on All Sides
41
Types of Borderless Printing Methods
41
Setting Procedure
42
Printing on Paper of Non-Standard Sizes
43
Settings on Windows
43
Settings on Mac
44
Double-Sided Printing
45
Settings on Windows
45
Settings on Mac
46
Printing from Smart Devices
47
Printing Photos Using Epson Smart Panel
47
Printing Documents Using Epson Smart Panel
47
Use Airprint
47
Printing Using Mopria Print Service
48
Printing from Cloud Services
49
Registering to Epson Connect from the Control Panel
49
Maintenance
50
List of Maintenance Items
50
Disposal of Used Consumables
50
Refilling Ink
51
Precautions Regarding Maintenance
51
How to Refill Ink
51
Replacing Maintenance Box
53
Cleaning the Platen
55
Cleaning and Replacing the Roller Assembly Kit
56
Cleaning the Roller Assembly Kit
56
Replacing the Roller Assembly Kit
59
Print Head Nozzle Check
60
Types of Nozzle Checks
60
How to Print a Nozzle Check Pattern
61
Print Head Cleaning
61
Types of Cleaning
61
Print Head Cleaning (Normal Cleaning)
62
Powerful Cleaning
62
Power Ink Flushing
63
Using the Maintenance Tool (Windows)
64
Summary of the Maintenance Tool
64
Starting and Closing
64
Explanation of the Main Screen
65
Explanation of the Printer Settings
66
Explanation of the System Environment Settings Screen
71
Printer Maintenance
72
Maintenance Operations
72
Nozzle Check Methods
72
Print Nozzle Check Pattern Method
73
Print Head Cleaning Method
74
Print Head Alignment Method
76
Paper Feed Adjustment Method
76
Using the Maintenance Tool (Mac)
78
Summary of the Maintenance Tool
78
Starting and Closing
78
Explanation of the Main Screen
79
Explanation of the Printer Window Screen
80
Explanation of the Operation Condition Settings Screen
81
Explanation of the Auto Nozzle Check Settings Screen
82
Printer Maintenance
84
Maintenance Operations
84
Nozzle Check Methods
84
Print Nozzle Check Pattern Method
85
Print Head Cleaning Method
86
Print Head Alignment Method
87
Paper Feed Adjustment Method
88
Adding Paper Information
90
Adding Paper Information by Using a Paper Type File
90
Settings on Windows
90
Settings on Mac
91
Adding Paper Information from Custom Settings (Windows Only)
92
Control Panel Menu
94
Menu List
94
Details of the Menu
98
Wireless LAN Connection
106
Types of Wireless LAN Connection
106
Wi-Fi Connection
106
Wi-Fi Direct (Simple AP) Connection
106
Connecting to a Computer
106
Connecting to a Smart Device
107
Connecting to a Smart Device over a Wireless Router
107
Connecting to an Iphone, Ipad, Ipod Touch Using Wi-Fi Direct
107
Connecting to Devices Other than Ios Using Wi-Fi Direct
109
Making Wi-Fi Settings from the Printer
109
Making Wi-Fi Settings by Entering the SSID and Password
110
Making Wi-Fi Settings by Push Button Setup
110
Setting up Using Wi-Fi Auto Connect
111
Making Wi-Fi Settings by PIN Code Setup (WPS)
111
Printing a Network Connection Report
112
Messages and Solutions on the Network Connection Report
112
Message on the Network Environment
116
Replacing or Adding New Wireless Routers
117
Making Settings for Connecting to the Computer
117
Making Settings for Connecting to the Smart Device
117
Problem Solver
118
When a Message Is Displayed
118
Messages Displayed on the Printer
118
Error Messages (Windows)
120
Error Messages (Mac)
121
Message Codes that Appear in Maintenance
122
Tool (Windows Only)
122
Troubleshooting
127
When Paper Jams
127
You Cannot Print (Because the Printer Does Not Work)
129
The Printer Sounds Like It Is Printing, but Nothing Prints
130
Cannot Do Borderless Printing
130
The Prints Are Not What You Expected
131
Feeding or Ejecting Problems
132
Cannot Print from Smart Device Even Though It Is Connected (Ios)
132
Others
133
If Troubles Are Not Resolved
133
Appendix
134
Consumables and Optional Items
134
Supported Media
135
Epson Special Media
135
Other Commercially Available Paper
135
Moving and Transporting the Printer
137
Moving the Printer
137
Transport
137
System Requirements
141
Printer Driver
141
Maintenance Tool
141
Web Config
142
Specifications Table
142
Necessary Space
146
Open Source Software License Terms
146
