TROUBLESHOOTING Troubleshooting 103

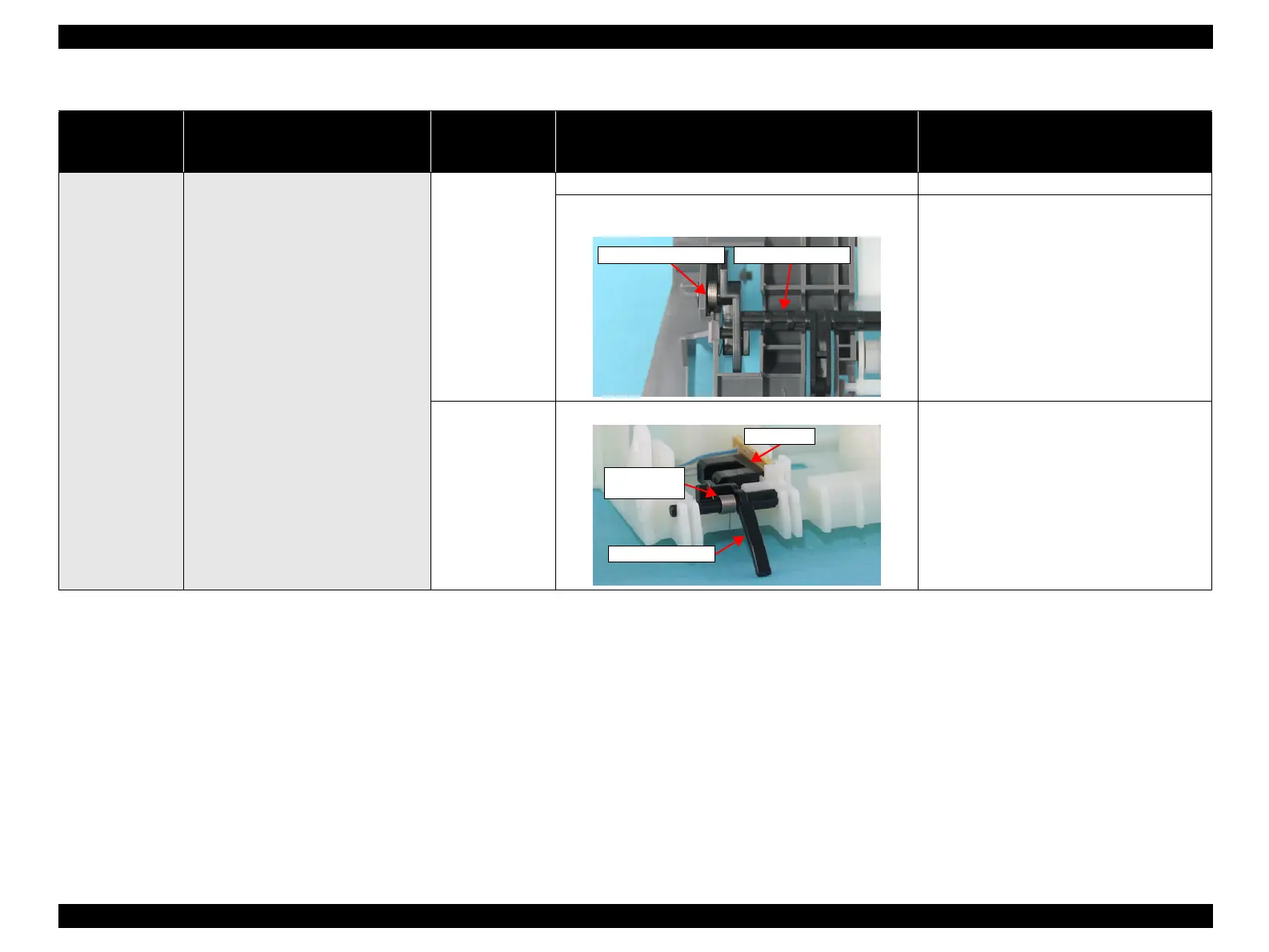

Table 3-17. Check point for the paper jam error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•Outside HP
The paper feeding sequence is
performed without loading paper in the
paper loading sequence.
ASF Unit
1. Check if the ASF Unit is properly installed. 1. Install the ASF Unit properly.
2. Check if the Paper Back Lever operates correctly in the
paper loading sequence.
2. Set the Torsion Spring 6.45 between the ASF
Frame and the Paper Back Lever.
Holder Shaft Unit
1. Check if the Torsion Spring 0.22 is properly installed. 1. Set the Torsion Spring 0.22 between the
Holder Shaft and the PE Sensor Lever.
Paper Back LeverTorsion Spring 6.45
PE Sensor Lever
PE Sensor
Torsion
Spring 0.22
