EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
ADJUSTMENT Adjustment Except Adjustment Program 184
5.3.3 Original Adjustment
Parts to be removed and replaced
Replacement of Scanner Housing, Upper
Replacement of Scanner Unit
Adjustment procedure
1. Hold down the [Color Start] + [Paper Size]+ [Fit to Page] and turn the printer
on. Keep pressing those buttons for five seconds, and the printer turns to the
scanner mode.
* This adjustment could be performed if turning on the printer without pressing
those buttons, however, necessary time to transit to the ready mode becomes
shorter by following this approach.
2. Install “C592B00W.exe” to the computer, and put the FT program into place.

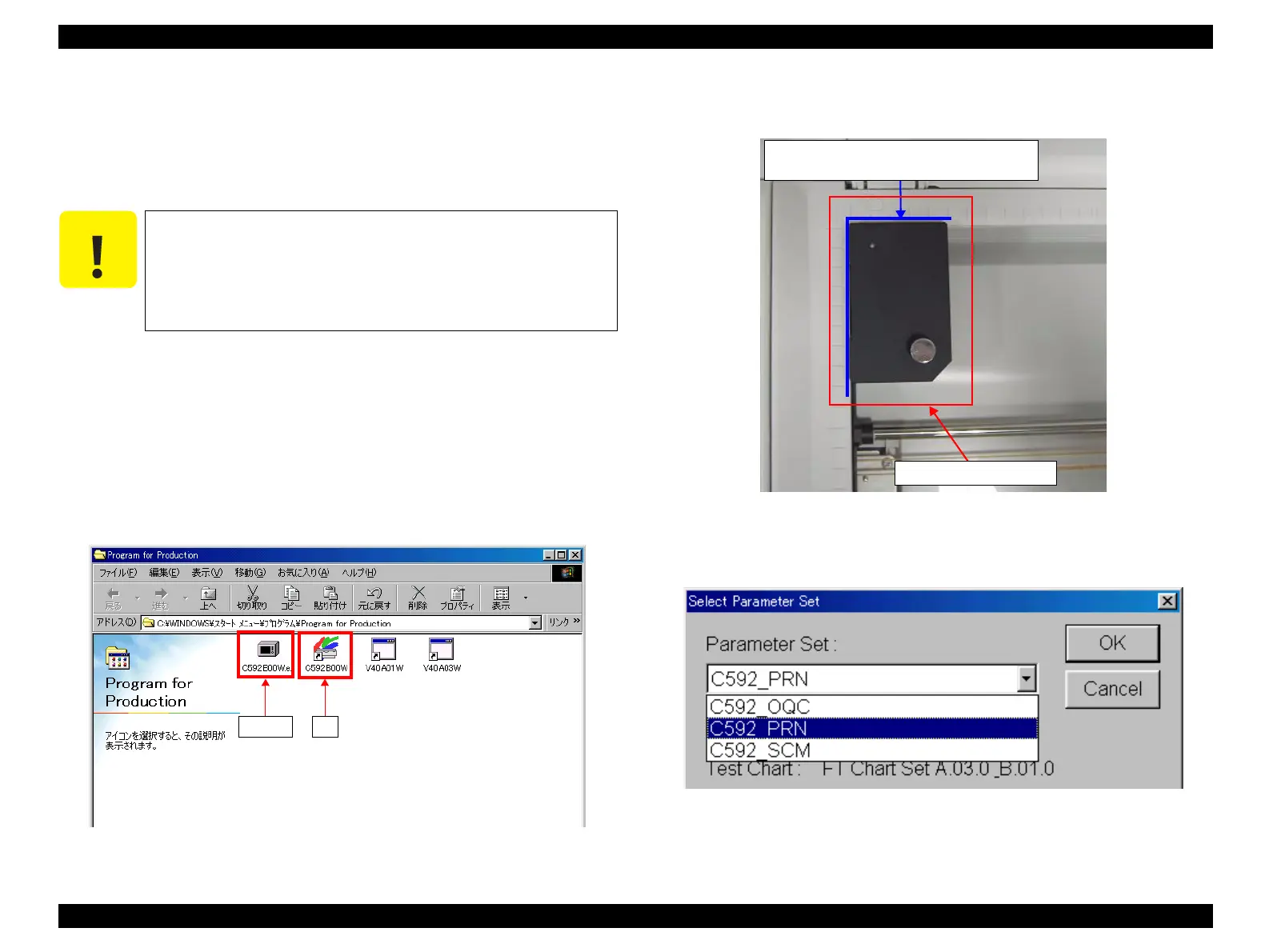

Figure 5-16. Original Adjustment (1)
3. Open the document cover, and place the original adjustment jig as shown in
the figure below.
Figure 5-17. Original Adjustment Jig Setting Position
4. Open the FT, select “C592_PRN”on the “Select Parameter Set” window, and
click [OK].
Figure 5-18. Original Adjustment (2)
C A U T I O N
This adjustment requires the FT (Function Test) program and
the exclusive adjustment jig.
If the setting of the printer differs from the one mentioned in the
following procedure, this adjustment could not be completed
correctly. In that case, the edge of the Scanner Housing, Upper
may be read in during scanning or copying.
exe file
FT
Pending
Original Adjustment Jig
Place the jig against the upper left corner
of the Scanner Housing, Upper
To Next Page
