PRODUCT DESCRIPTION Memory Card Print (Only for CX4700/CX4800/DX4800/DX4850) 46
1.5.8.5 80-up

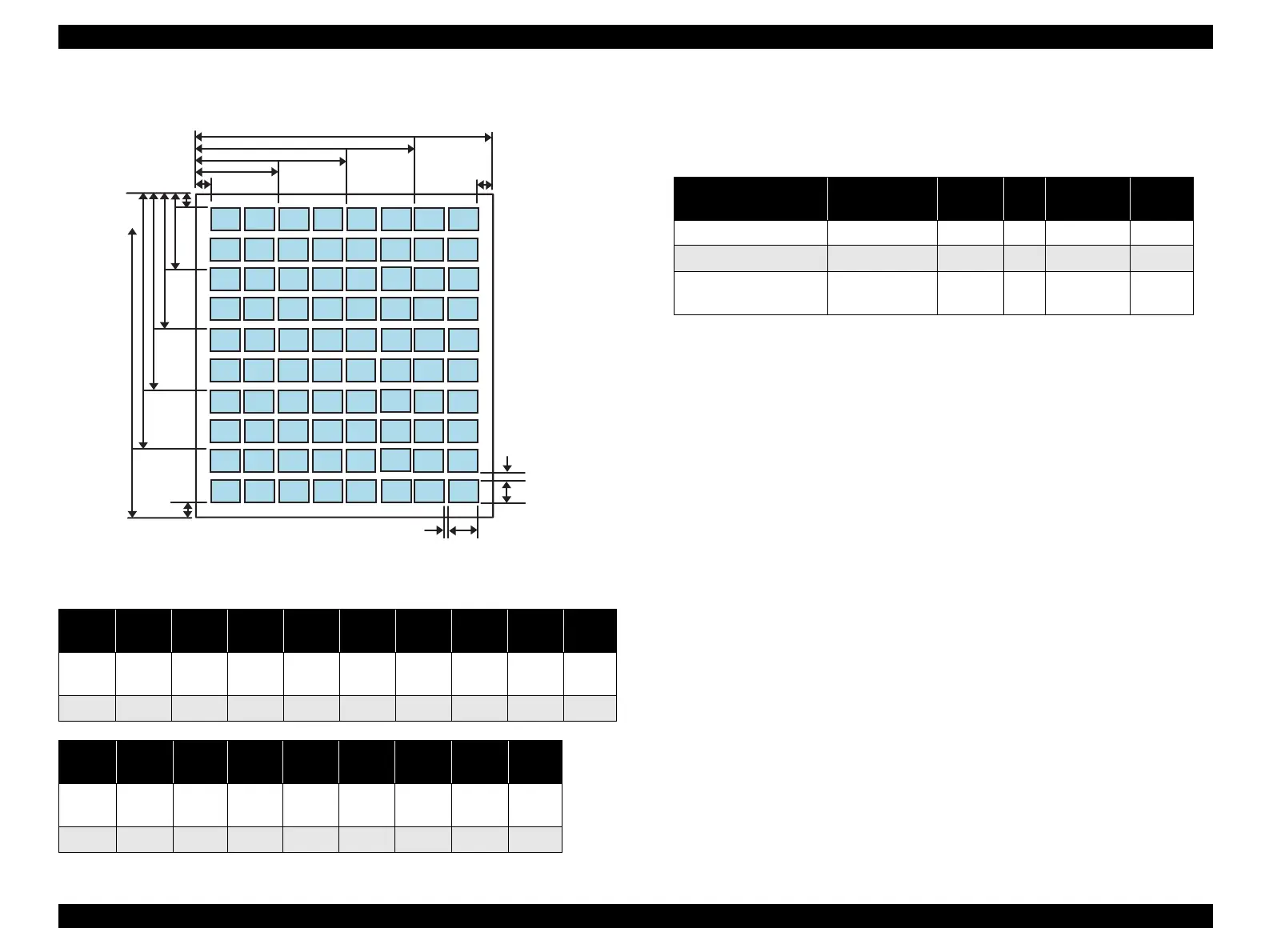

Figure 1-23. 80-up
1.5.9 Relation between Paper Type and Quality
In this mode, printing is always in color (CMYK), not black ink only.
Table 1-44. 80-up (unit: mm (inch))
Paper
type
A B C D E F G H I
Letter
215.90
(8.50)
279.40
(11.00)
20.07
(0.79)
20.07
(0.79)
6.10
(0.24)
6.10
(0.24)
6.35
(0.25)
58.67
(2.31)
111.00
(4.37)
A4 210.0 297.0 20.0 20.0 2.0 5.0 18.0 62.0 106.0
Paper
type
J K L M N O P Q
Letter
163.32
(6.43)
6.35
(0.25)
11.94
(0.47)
64.26
(2.53)
116.59
(4.59)
168.91
(6.65)
221.23
(8.71)
11.94
(0.47)
A4 150.0 18.0 26.0 76.0 126.0 176.0 226.0 26.0
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Table 1-45. Relation between Paper Type and Quality
Paper type
Print resolution
(H x V dpi)
Dot size MW High speed LUT
Plain Paper 720 x 720 VSD3 On On 1
Photo Paper 1440 x 720 VSD3 On On 2
Index sheet
(Plain Paper)
360 x 720 VSD1 On On 4
