Epson Stylus DX4850 Service Manual

EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 131
4.4.6 Housing, Upper
 External view

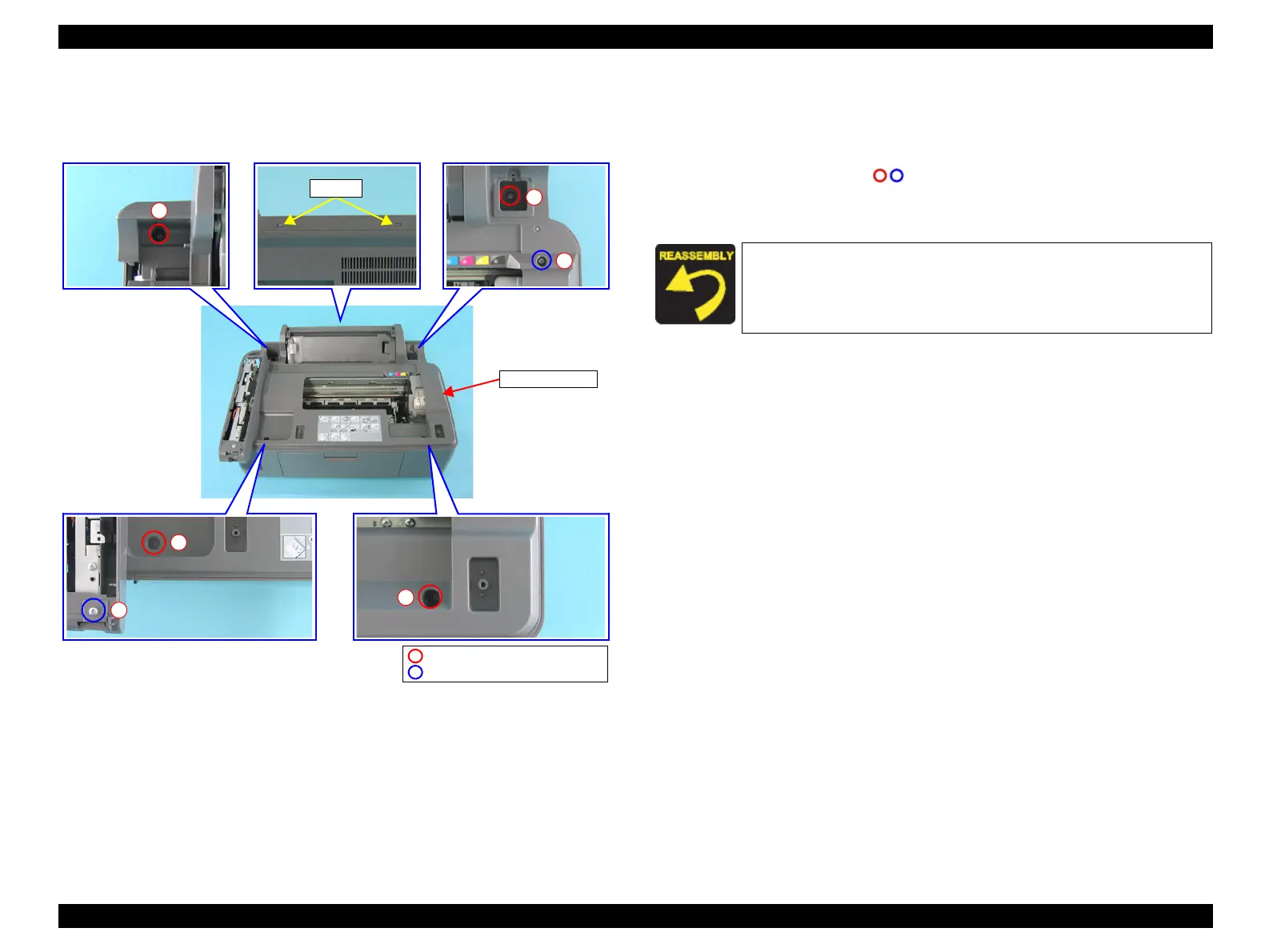

Figure 4-8. Removing Housing, Upper
 Part/Unit that should be removed before removing Housing, Upper
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit
 Removal procedure
1. Remove the screws (x6, ) that secure the Housing, Upper.
2. Release the tabs (x2) that secure the Housing, Upper with a flathead
screwdriver or a similar tool, and lift up to remove the Housing, Upper.
1
5
2
6
3
4
Tabs
C.B.P. 3x10 F/Zn (4±1kgfcm)
C.B.S. 3x6 F/Zn (7±1kgfcm)
Housing, Upper
Tighten the screws in the order as shown in the figure.
