EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 127
4.4 Printer Section
4.4.1 Document Cover/Document Cover Mat/
ASF Cover

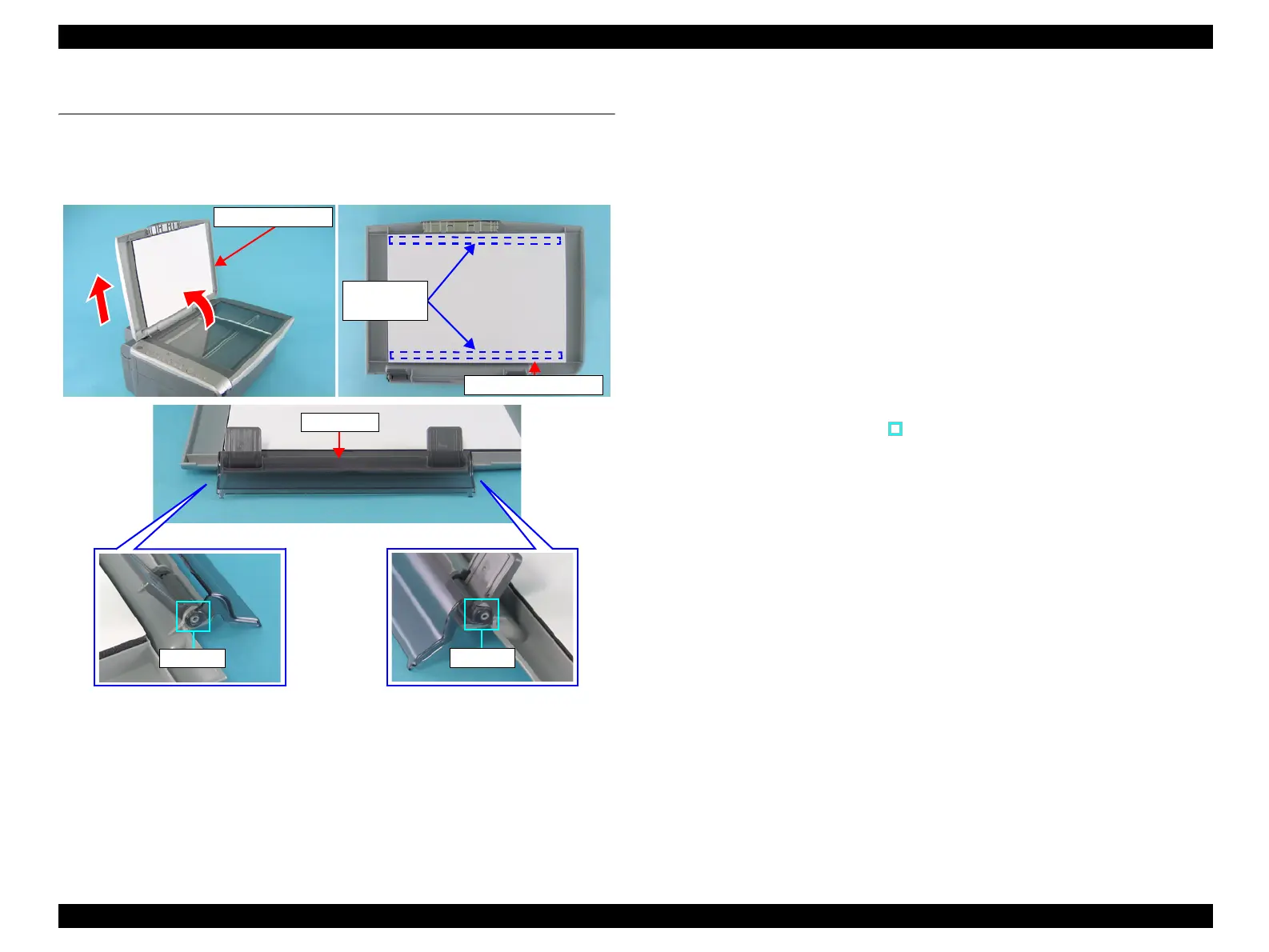

Figure 4-2. Removing Document Cover/Document Cover Mat/
ASF Cover
Part/Unit that should be removed before removing Document Cover/
Document Cover Mat/ASF Cover
None
Removal procedure
Document Cover
1. Open the Document Cover and remove it by pulling out upward.
Document Cover Mat
1. Remove the Document Cover Mat that is secured to the Document Cover with
the double-sided tapes (x2).
ASF Cover
1. Release the guide pins (x2, ) that secure the ASF Cover, and remove it from
the Document Cover.
ASF Cover
Document Cover
Double-sided
Tape
Document Cover Mat
Guide Pin
Guide Pin
