Epson Stylus DX4850 Service Manual

EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 157
4.4.22 EJ Frame Unit
 External view (1)

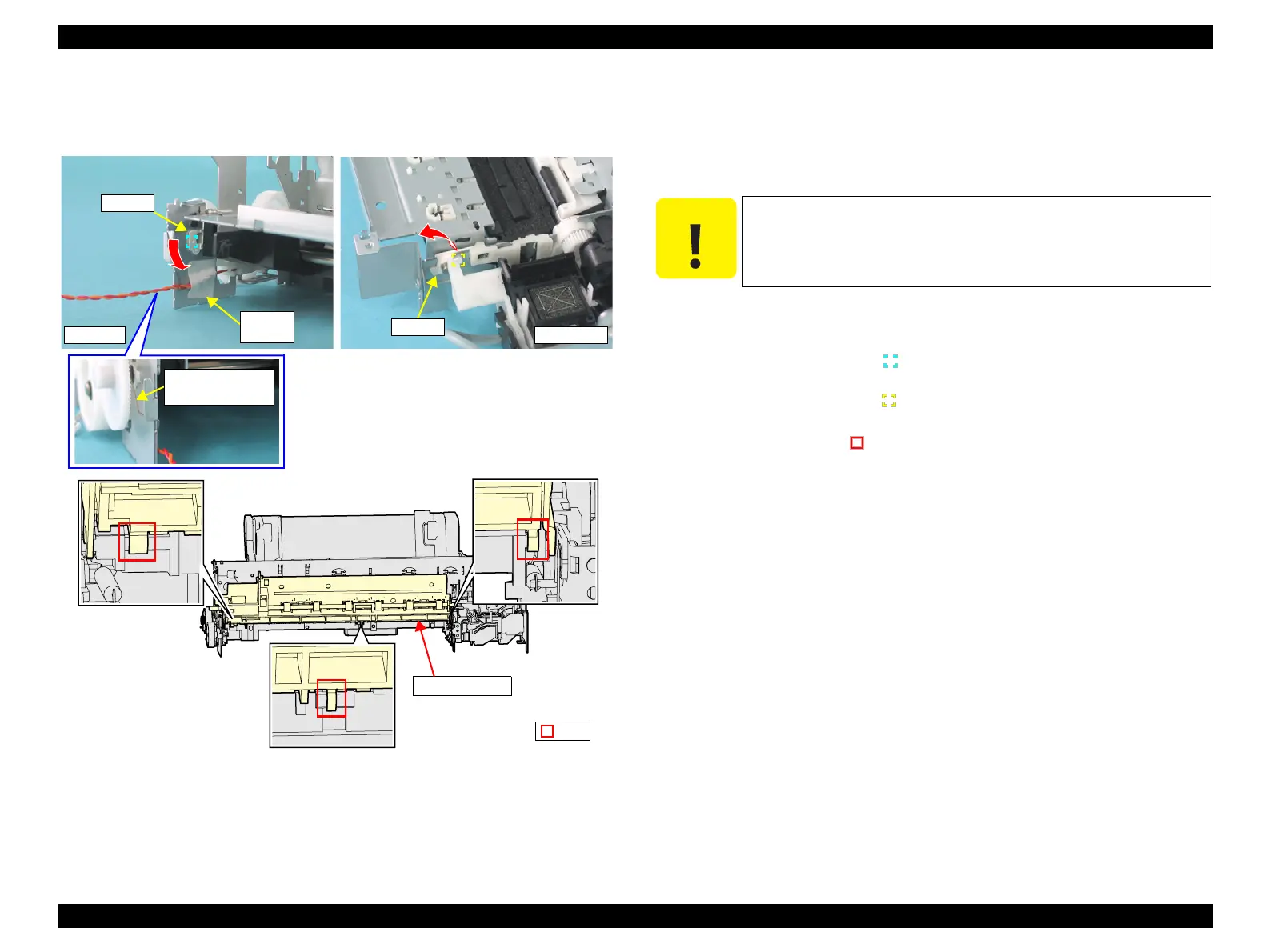

Figure 4-40. Removing EJ Frame Unit
 Part/Unit that should be removed before removing EJ Frame Unit
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing Upper / Print Head / Printer Mechanism / Main Board Unit /
CR Guide Frame / CR Motor / Carriage Unit / Front Frame
 Removal procedure
1. Peel off the acetate tape (x1) that secures the PG Sensor Connector Cable.
2. Remove the Paper Eject Grounding Spring from the left side of the EJ Frame
Unit.
3. Release the guide pin (x1, ) of Bush 5 on the left side of the EJ Frame Unit,
and rotate the Bush 5 downward by 90°.
4. Release the guide pin (x1, )of Bush 5 on the right side of the EJ Frame Unit,
and rotate the Bush 5 upward (or downward) by 90°.
5. Release the tabs (x3, ) that secure the EJ Frame Unit while lifting the near
side of the EJ Frame Unit upward.
Right Side
Bush 5
Bush 5
Acetate
Tape
Left Side
Paper Eject
Grounding Spring
Tabs
EJ Frame Unit
C A U T I O N
 Do not hold the EJ Frame Unit while handling the Printer
Mechanism in your repair.
 Do not touch the rubber portion of the Eject Roller.
