EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 151
4.4.18 PF Motor
 External view

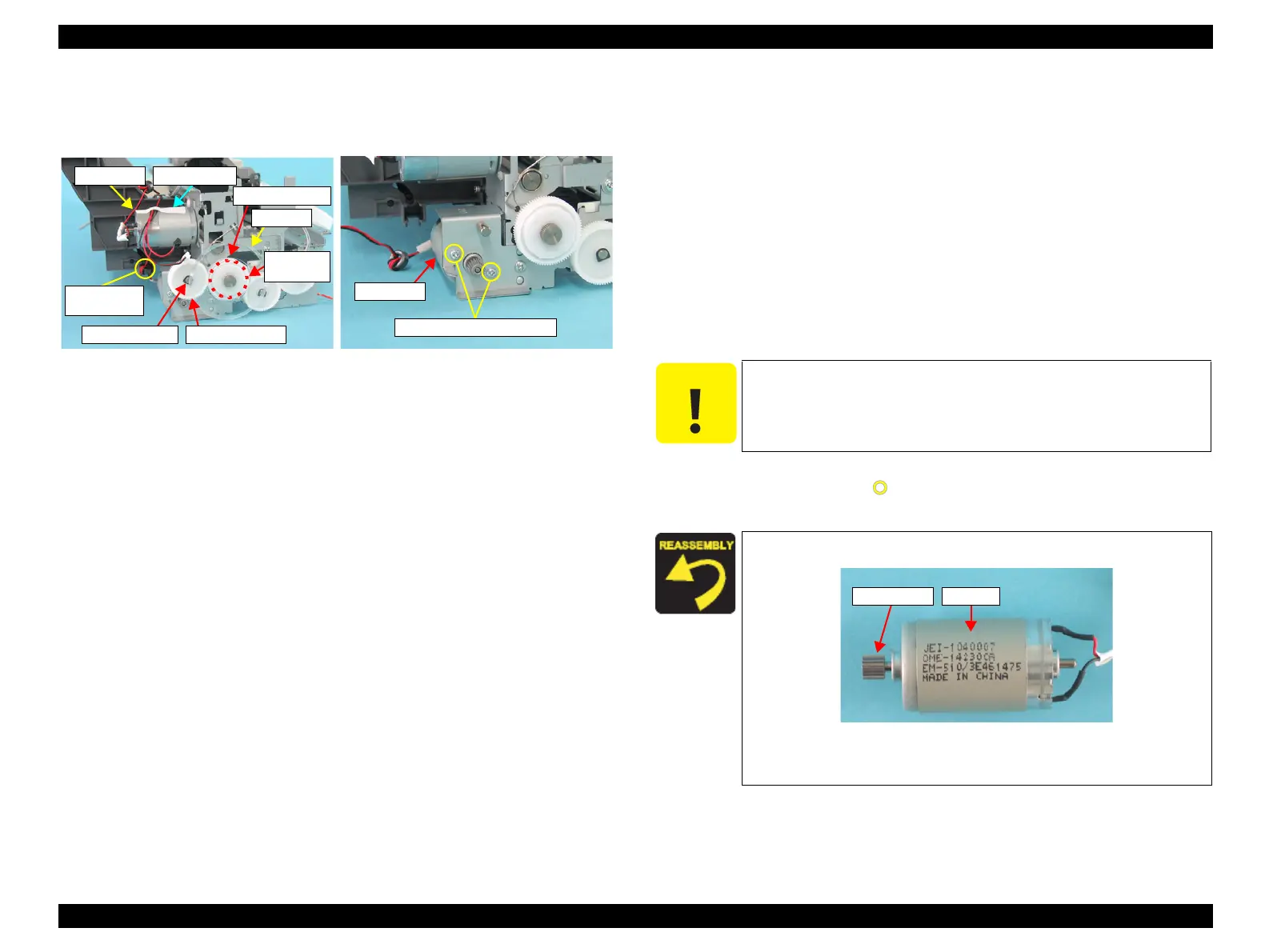

Figure 4-33. Removing PF Motor
 Part/Unit that should be removed before removing PF Motor
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing, Upper / Printer Mechanism / Main Board Unit
 Removal procedure
1. Peel off the acetate tape (x1) from the CR Motor, and release the CR Motor
Connector Cable and the PF Motor Connector Cable.
2. Remove the Ferrite Core (x1) of the PF Motor Connector Cable from the slot
(x1) of ASF Unit.
3. Remove the PF Scale that is secured with double-sided tape to the Spur Gear
32.4.
4. Remove the Spacer (4.1 x 0.5) that secures Spur Gear 30.8, and remove Spur
Gear 30.8 from the Main Frame.
5. Remove the screws (x2, ) that secure the PF Motor, and remove the PF
Motor from the Printer Mechanism.
PF Motor
C.P. 3x4 F/Zn (4±0.5kgfcm)
Ferrite Core
and Slot
Acetate TapeCR Motor
PF Scale
Double-
sided Tape
Spur Gear 32.4
Spur Gear 30.8
Spacer (4.1x0.5)
C A U T I O N
Do not damage the following parts.
 Pinion gear of the PF Motor
 PF Scale
 Spur Gear 30.8
 Install the PF Motor so that the Lot Number faces upward.
Figure 4-34. Installing PF Motor
 Make sure that there is no gap between the PF Motor and the
Main Frame.
Pinion Gear
Lot No.
