EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
MAINTENANCE Overview 193

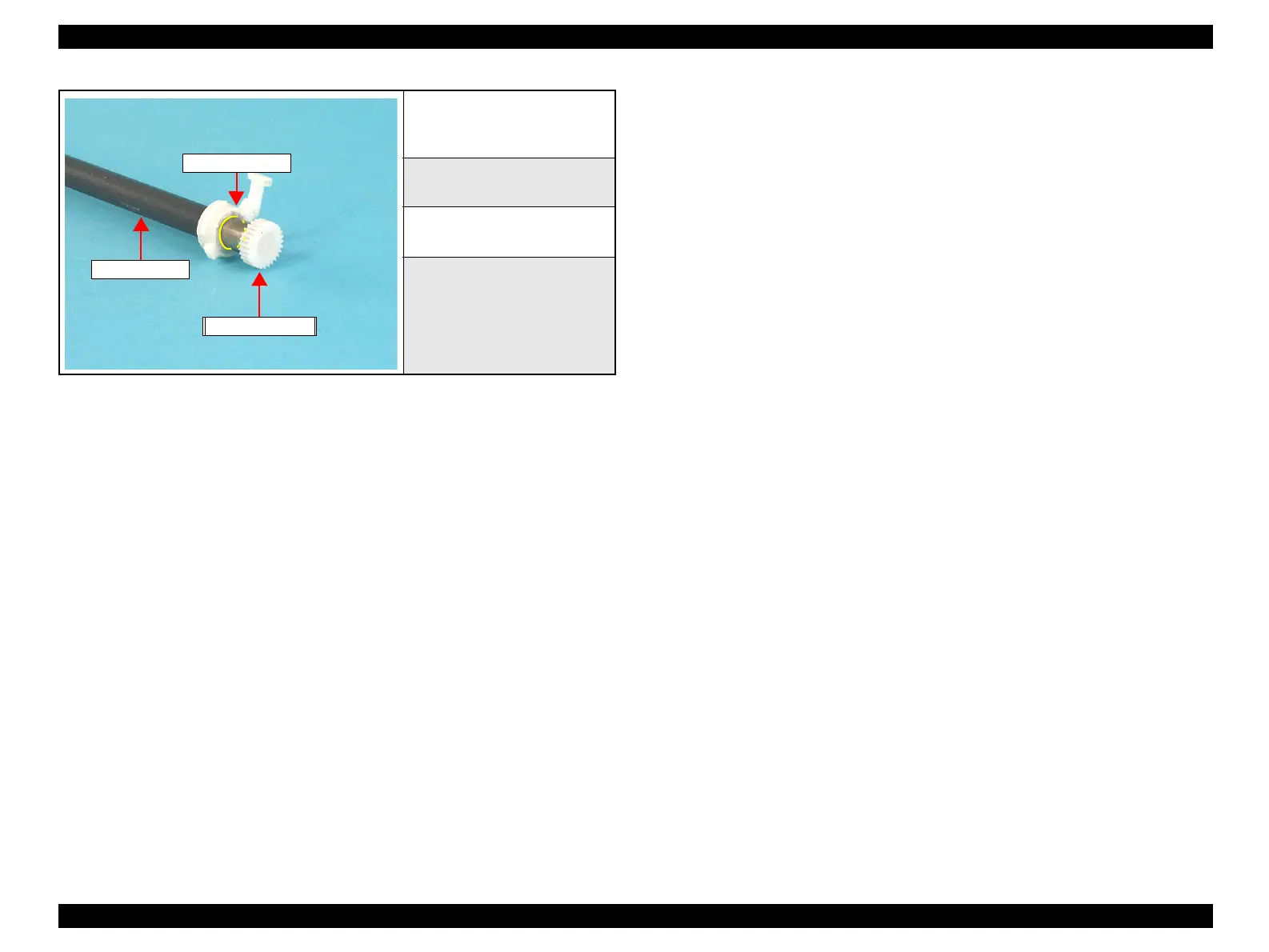

Figure 6-14. Lubrication on PF Roller Unit (2)
<Lubrication Point>
Contact point between Bush 10
(Right) and PF Roller Unit
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x φ of the PF Roller Unit
<Remarks>
Use a injector to apply.
• Do not adhere G-26 to Spool
Gear 13.5.
Spool Gear 13.5
Bush 10 (Right)
PF Roller Unit
Spool Gear 13.5
