EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
APPENDIX Exploded Diagram 206

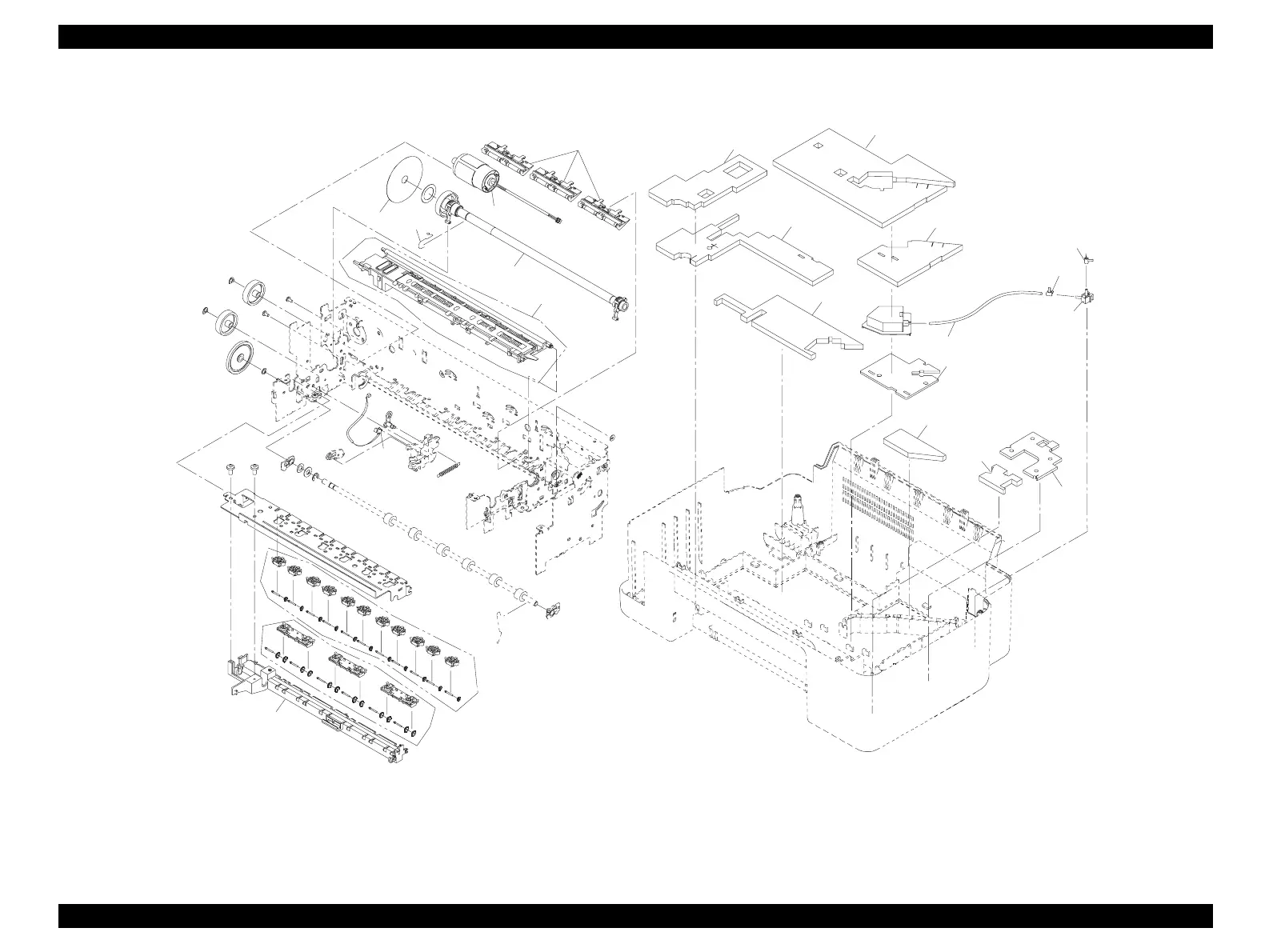

Figure 7-6. PX-A650/Stylus CX4700/CX4800/DX4800/DX4850 Exploded Diagram 5
567
566
565
563
562
564
561
540
Rev.01 C610-MECH-002
506
541
538
538
542
522
536
527
505
514
525
526
524
EPSONޓPX-A650
Stylus CX4700/CX4800/DX4800/DX4850
