Epson Stylus DX4850 Service Manual

EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
PRODUCT DESCRIPTION Control Panel 48

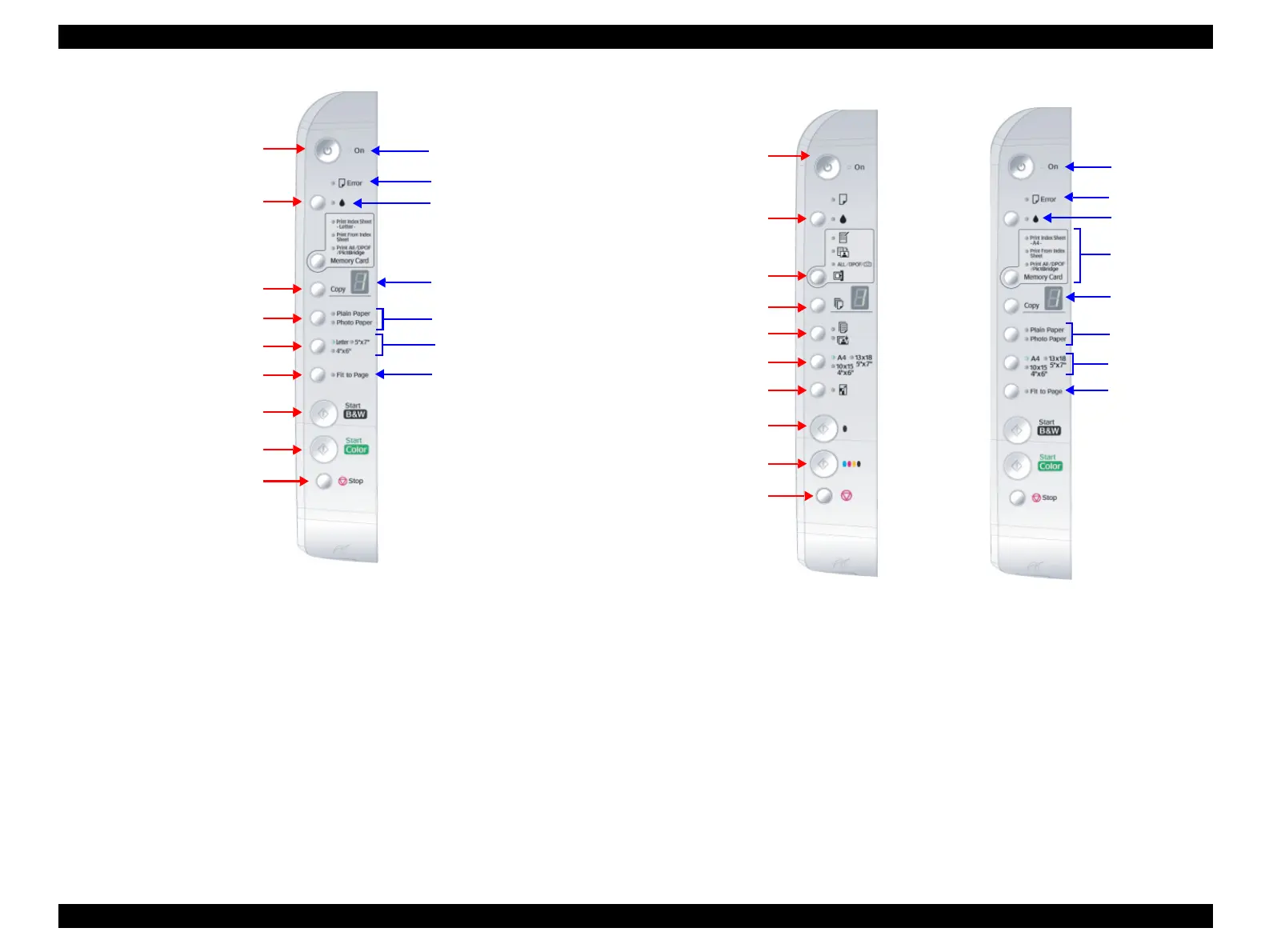

Figure 1-24. Control Panel (Stylus CX4200/CX4800)
Figure 1-25. Control Panel (Stylus CX4100/CX4700/DX4200/DX4800/DX4850)
Power Button
Ink Button
Copy Button
Paper Type Button
Paper Size Button
Fit to Page Button
B&W Start
Button
Color Start
Button
Stop Button
Power LED
Error LED
Ink LED
7-seg. LED
Paper Type
LED 1,2
Paper Size
LED 1,2
Fit to Page LED
Power Button
Ink Button
Memory Card
Button
Copy Button
Paper Type Button
Paper Size Button
Fit to Page Button
B&W Start
Button
Color Start
Button
Stop Button
Power LED
Error LED
Ink LED
Memory Card
LED 1-3
7-seg. LED
Paper Type
LED 1,2
Paper Size
LED 1,2
Fit to Page LED
<Stylus DX4200/
DX4800/DX4850>
<Stylus CX4100/CX4700>
