TROUBLESHOOTING Troubleshooting 96
Table 3-9. Check point for the PG error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•–
This error is generated when using
stand-alone copy.
Torsion Spring
19.01
1. Check if the Torsion Spring 26.1 is properly installed. 1. Properly install the Torsion Spring 26.1.
* Only when the Torsion Spring 26.1 comes
off while the PG lever is set to “H”
position.
PG Sensor
1. Check if the PG Sensor is not damaged. 1. Replace the PG Sensor with a new one.
Main Board 1. Check if the Main Board is not damaged. 1. Replace the Main Board with a new one.

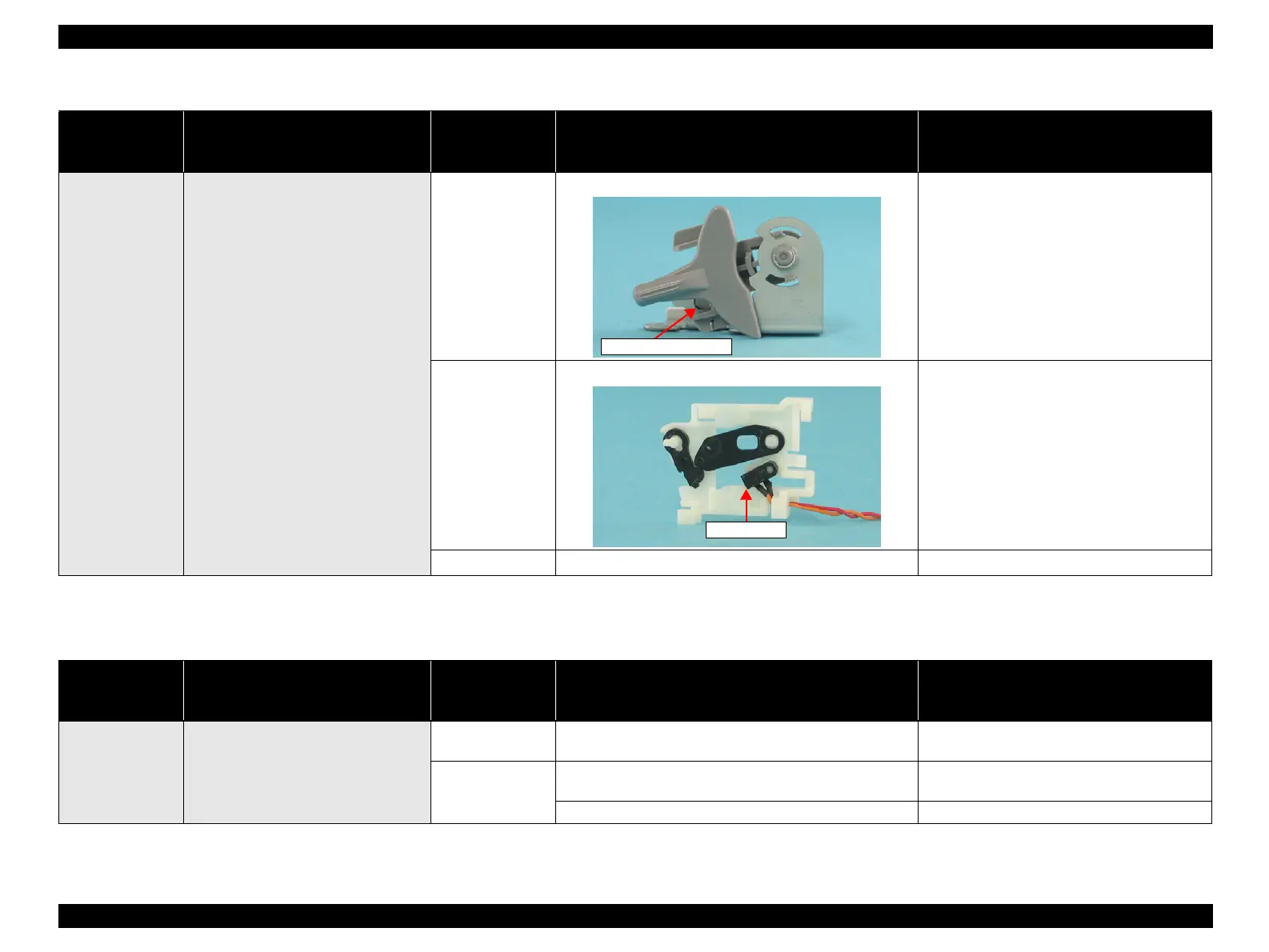

Torsion Spring 26.1
PG Sensor
Table 3-10. Check point for the Index Sheet. error (incorrect card) according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•–
This error is generated when attempting
to print from Index Sheet.
Index Sheet
1. Check if the Index Sheet was printed from an inserted
Memory Card.
1. Switch to Index Sheet printed from an
inserted Memory Card.
Memory Card
1. Check if the Memory Card storing the Index Sheet data is
inserted.
1. Insert Memory Card storing the Index Sheet
data.
2. Check if the Memory Card is not damaged. 2. Replace the Memory Card with a new one.
