EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Removing the Circuit Boards 104
Confidential

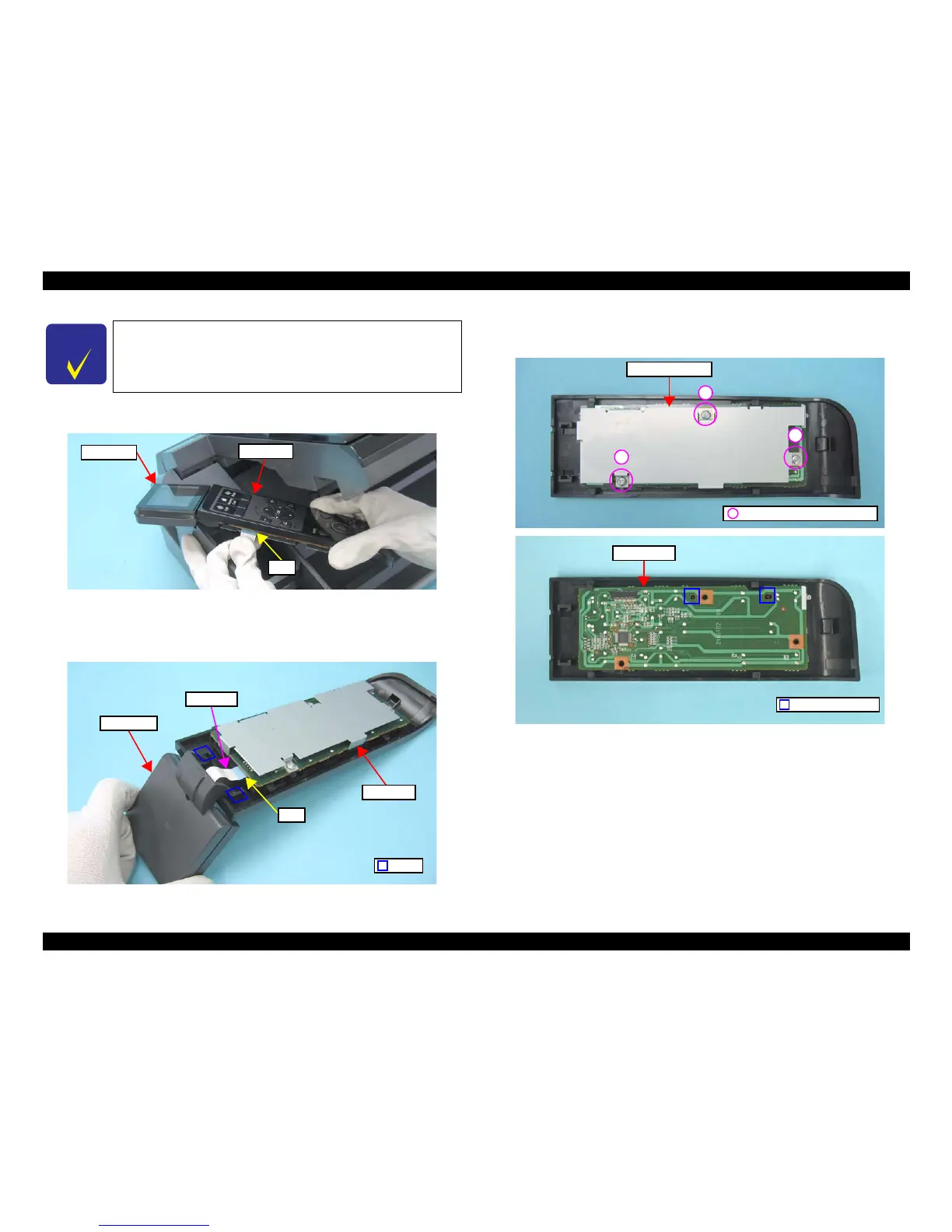

5. Disconnect the Panel FFC from the connector (CN1) of the Panel Board, and
remove the Panel Unit together with the LCD Unit.
Figure 4-21. Removing the Panel Unit and LCD Unit (2)
6. Disconnect the LCD FFC from the connector (CN2) of the Panel Unit.
7. Release the dowels (x2) that secure the LCD Unit, and separate the LCD Unit
from the Panel Unit.
Figure 4-22. Removing the Panel Unit and LCD Unit (3)
8. Remove the screws (x3) that secure the Panel Board and Panel Board Frame,
and remove the Panel Board together with the Panel Board Frame.
Figure 4-23. Removing the Panel Board
C H E C K
P O I N T
Be sure to disconnect the Panel FFC from the connector on the
Panel Board.
Panel Unit
LCD Unit
CN1
Panel Unit
LCD Unit
CN2
LCD FFC
Dowel
C.B.P. 3x8, F/Zn-3C (3±1kgfcm)
Panel Board Frame
1
2
3
Positioning Hole/Pin
Panel Board
