Epson Stylus TX209 User Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 122
Confidential
4.5.13 Main Frame Assy
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit/Left Frame/Front Frame/Right Frame/CR
Motor/CR Scale/Hopper
 Removal procedure
1. Remove the Grounding Spring from the PF Motor.
(Refer to 4.5.11 PF Motor Step2 (p119))
2. Release one end of the Extension Spring from the hook of the Main Frame
with longnose pliers, and then remove the spring together with the Driven
Pulley Holder.

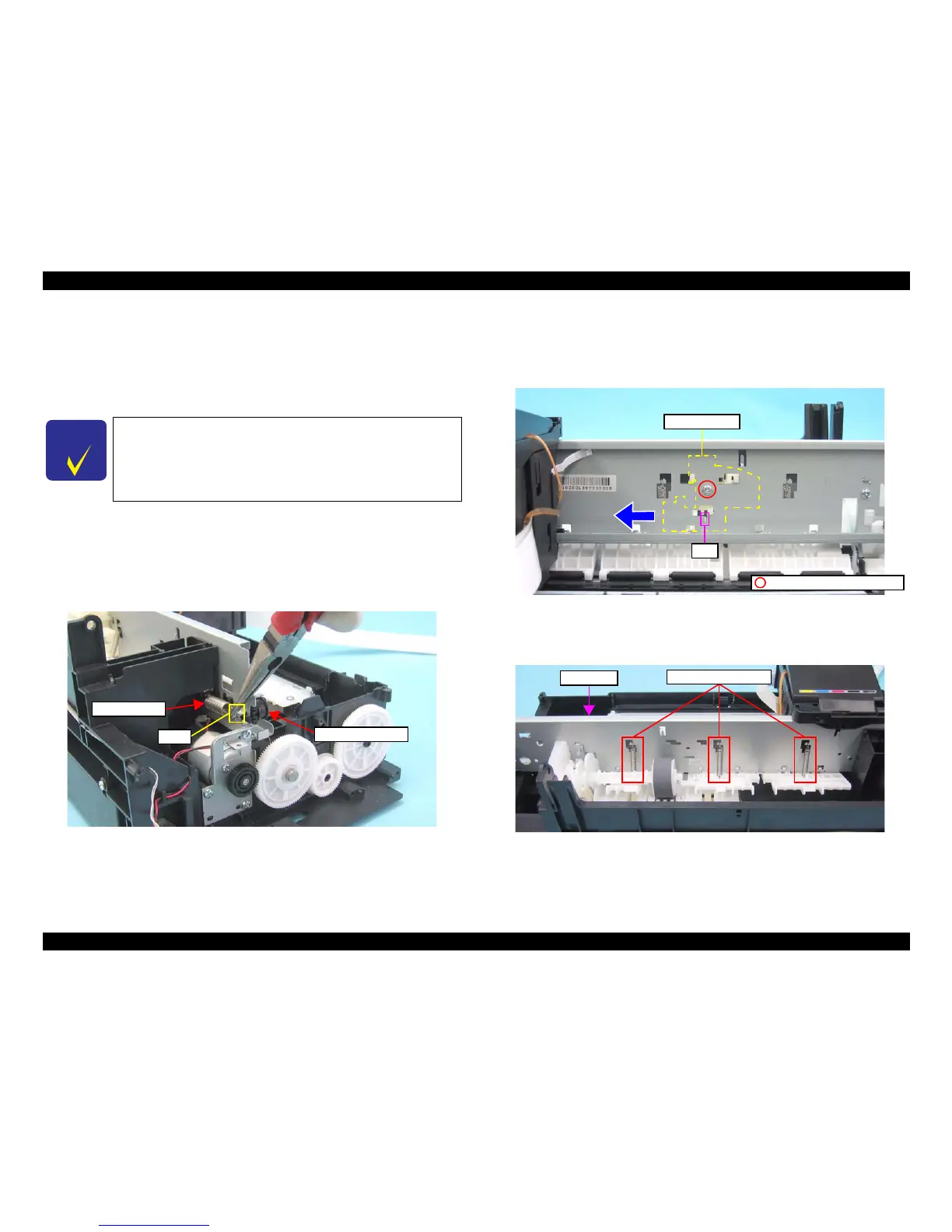

Figure 4-69. Removing the Extension Spring and Driven Pulley Holder
3. Move the CR Unit to the left side of the printer.
4. Remove the screw (x1) that secures the LD Shaft Holder.
5. Move the LD Shaft Holder in the direction of the arrow while holding down
its tab with a flathead precision screwdriver, and remove the LD Shaft Holder.
Figure 4-70. Removing the LD Shaft Holder
6. Remove the Extension Springs 10.99 (x3) from each hook of the Main Frame
and the Upper Paper Guide.
Figure 4-71. Removing the Upper Paper Guide (1)
C H E C K
P O I N T
Main Frame Assy consists of the following parts.
 Main Frame
 CR Unit
 Printhead
 Upper Paper Guide
Extension Spring
Driven Pulley Holder
Hook
LD Shaft Holder
Tab
C.B.P. 3x6, F/Zn-3C (6±1kgfcm)
Extension Springs 10.99
Main Frame
