DISASSEMBLY/ASSEMBLY Removing the Housing 98
Confidential
4.3.4 Scanner Unit/Hinge
 Parts/Components need to be removed in advance
Document Cover/ASF Cover
 Removal procedure
1. Remove the screw (x1) that secures the USB Cover.
2. Pull the USB Cover at its screwing part, and remove it by sliding it to the left
(in the direction of the arrow).

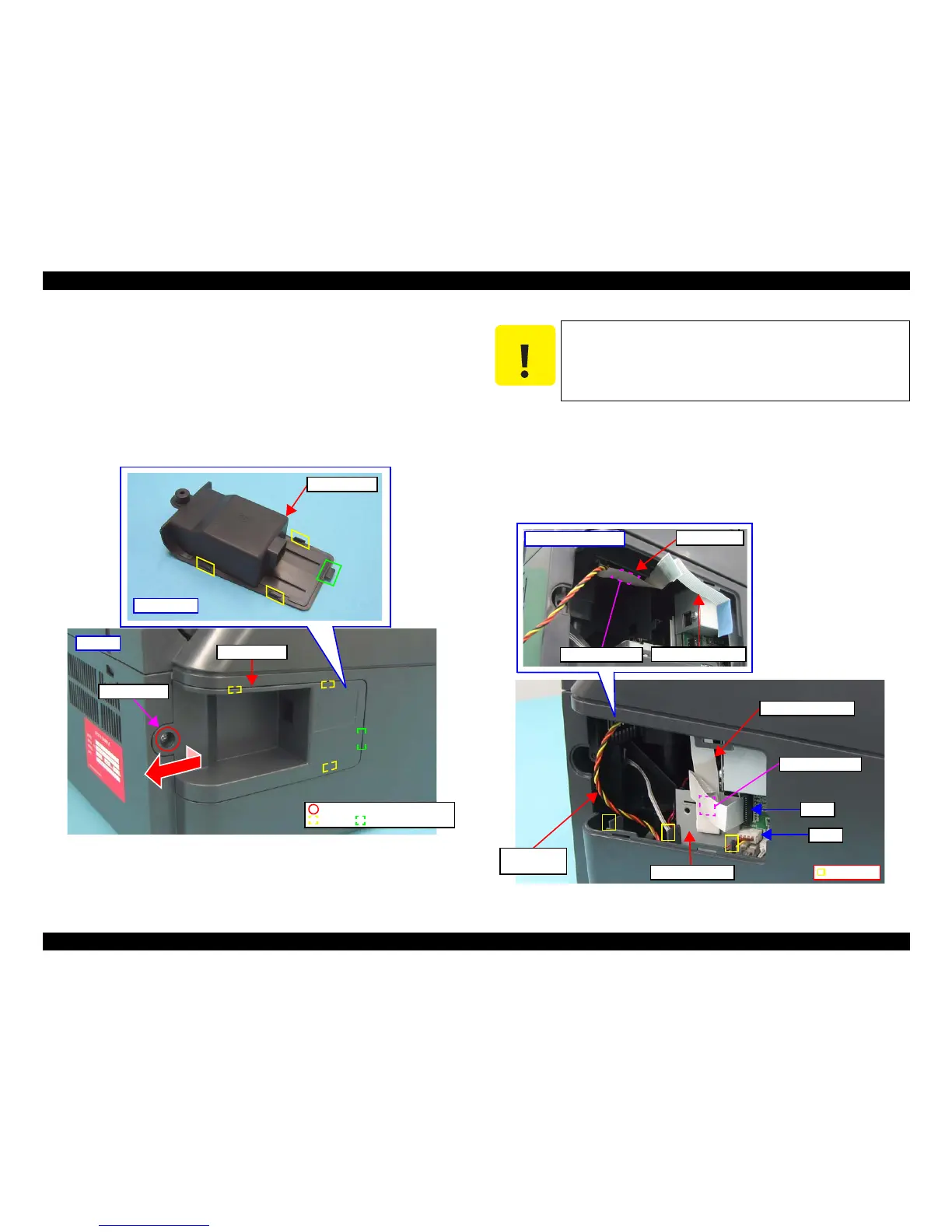

Figure 4-6. Removing the USB Cover
3. Disconnect the Scanner Motor Cable from the connector (CN10) and the
Scanner Carriage FFC from the connector (CN21) on the Main Board.
4. Peel off the double-sided tape (x1) that secures the Scanner Carriage FFC to
the Main Board Frame.
5. Peel off the double-sided tape (x1) that secures the Scanner Carriage FFC to
the Upper Housing.
Figure 4-7. Removing the Scanner Unit (1)
USB Cover
C.B.S. 3x8, F/Zn-3C (6±1kgfcm)
Tab
Rib
Screwing Part
Back Side
USB Cover
Rear Left
C A U T I O N
Be careful of the sharp edges shown in Figure 4-7 when
assembling or reassembling.
Main Board Frame
CN10
CN21
Upper Housing
Double-sided Tape Scanner Carriage FFC
Upper Housing’s inside
Scanner Carriage FFC
Scanner Motor
Cable
Sharp Edge
Double-sided Tape
