Epson Stylus TX209 User Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 113
Confidential
4.5.5 Left Frame
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit
 Removal procedure
1. Remove the screws (x5) that secure the Left Frame, and remove the Left
Frame.

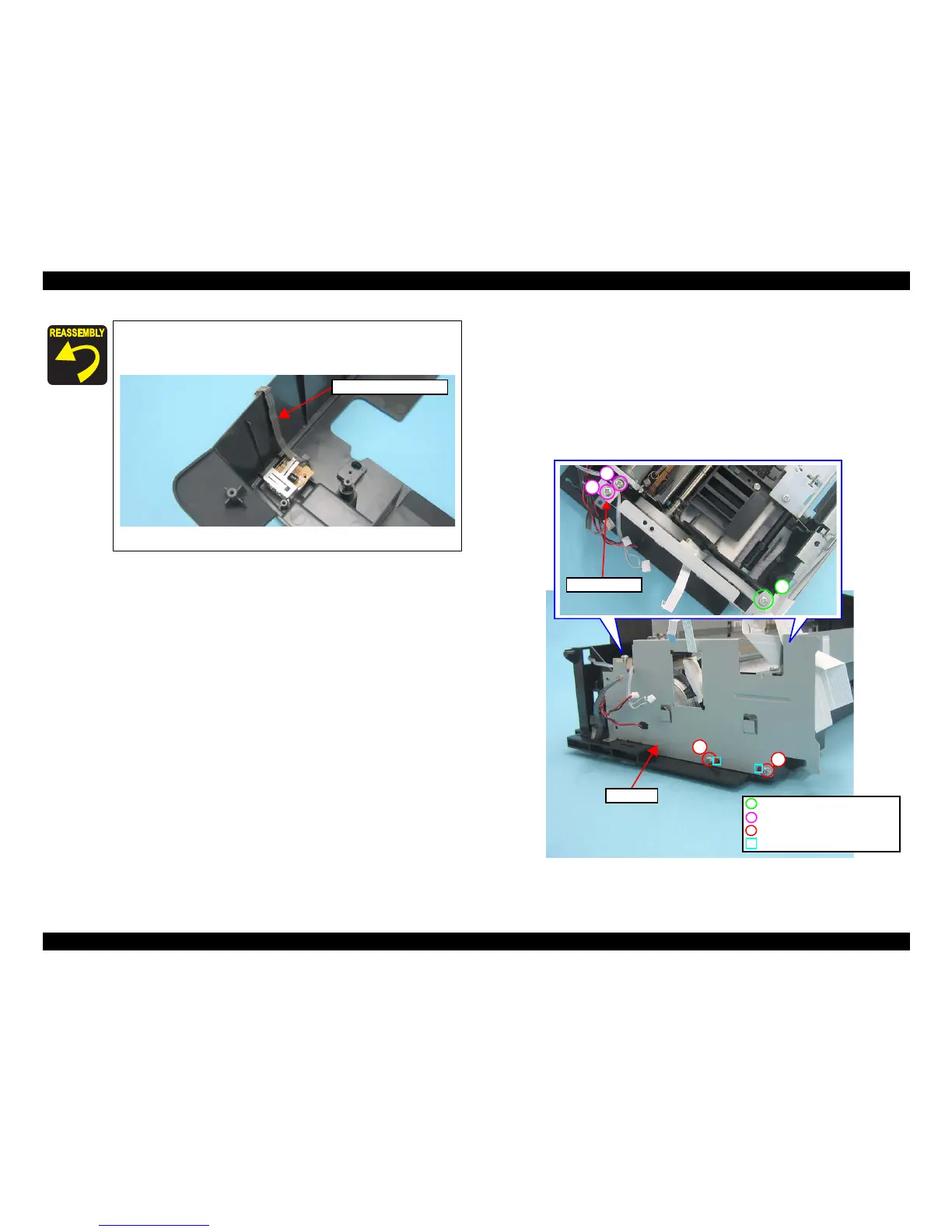

Figure 4-46. Removing the Left Frame
Before installing the Printer Mechanism, hang the Interface
Connector Cable on the Lower Housing so as not to damage the
cable with the Printer Mechanism.
Figure 4-45. Routing the Interface Connector Cable
Interface Connector Cable
1
2
3
Grounding Plate
5
4
Left Frame
C.B.S. 3x6, F/Zn-3C (6±1kgfcm)
C.B.P. 3x6, F/Zn-3C (6±1kgfcm)
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
Positioning Hole and Guide Pin
