EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 107
Confidential

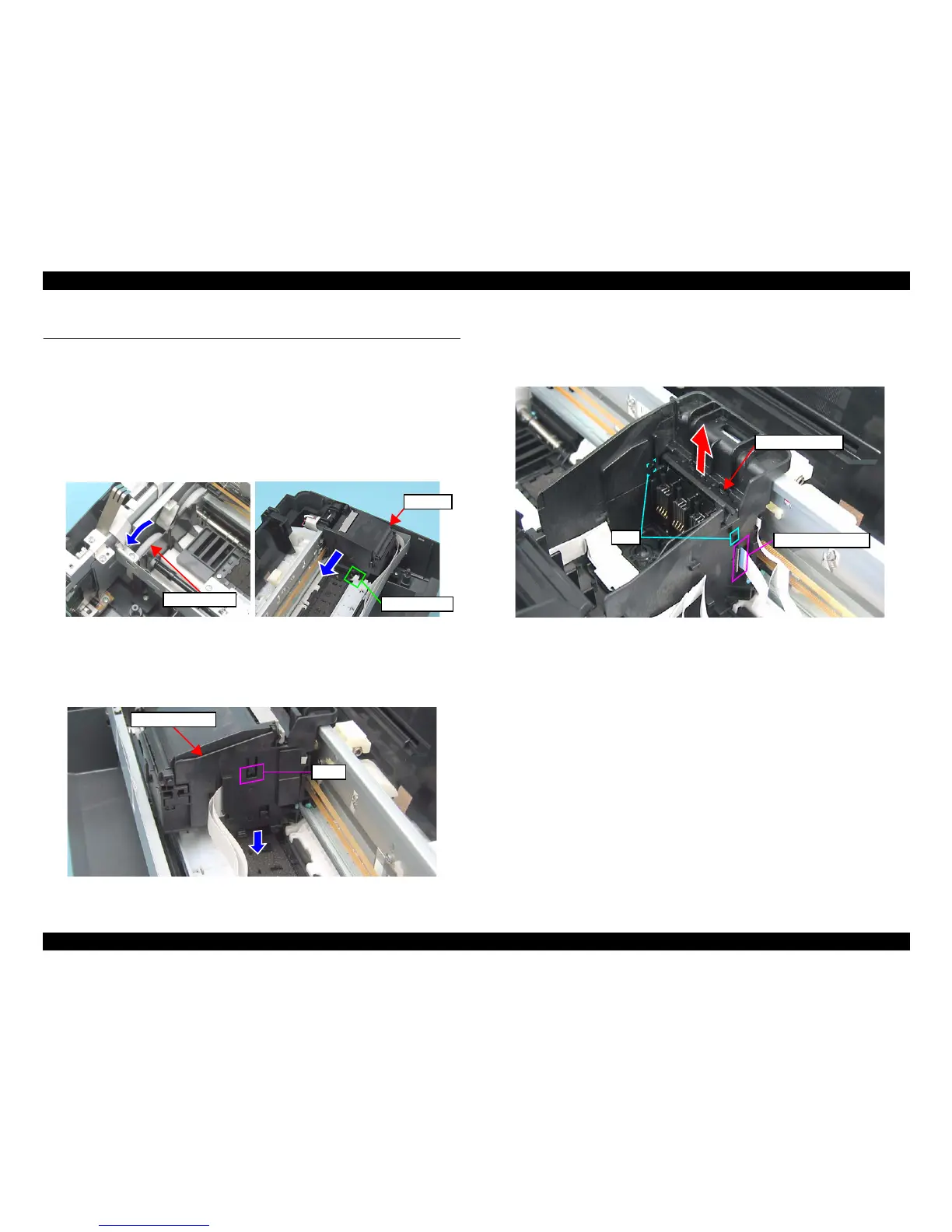

4.5 Disassembling the Printer Mechanism
4.5.1 Printhead
Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing
Removal procedure
1. Rotate the Spur Gear 51.5 to unlock the carriage, and move the CR Unit to the
center.
Figure 4-30. Unlocking the Carriage and Moving the CR Unit
2. Open the Cartridge Cover and remove all the ink cartridges from the CR Unit.
3.
Release the hook (x1) of the Head Cable Cover with a flathead precision
screwdriver, and remove the Head Cable Cover while sliding it downward (in
the direction of the arrow).
Figure 4-31. Removing the Head Cable Cover
4. Disconnect the Head FFC (x1) that is connected to the CSIC Board.
5. Release the tabs (x2) that secure the Holder Board Assy using a needle or a
similar tool, and remove the Holder Board Assy upward (in the direction of
the arrow).
Figure 4-32. Removing the Holder Board Assy
To Next Page
